SAM R30 Sub-GHz Microcontroller Module and SiP

Long-Lasting, Low-Power Wireless Solutions for Effortless Connectivity

Developed for use with long-life, battery-powered sensors, the IEEE® 802.15.4 standard is defined for operation in the unlicensed Industrial Scientific and Medical (ISM) bands used worldwide. As the number of wirelessly connected and extremely power-conscious applications using this standard continues to rise, designers need flexible and reliable solutions with features that will extend battery life for multiple years.

Our low-power SAM R30 series of products utilize IEEE 802.15.4 in the sub-GHz channels of the ISM band. Designed to operate between 769 and 935 MHz, SAM R30 devices deliver superior range when compared to 2.4 GHz networks. Their ultra-low-power sleep modes, which consume less than 1 uA, also enable your products to meet the standard’s defined ability to sleep virtually forever.

Well suited for use in connected home, smart city and industrial applications, these solutions are available as the SAM R30 System in Package (SiP) devices and the SAM R30 module, which work in conjunction with our proprietary MiWi™ mesh networking protocol to connect all your devices.

SAM R30 Products

ATSAMR30E18A Module

  • Based on the ATSAMR30E18A microcontroller
  • Two regulatory certified antenna reference designs
  • 12.7 × 11 mm module
Learn More About ATSAMR30E18A

ATSAMR30G18A SiP

  • 32-bit microcontroller with 802.15.4 sub-GHz radio
  • User-programmable memory: 256 KB Flash and 32 KB RAM
  • 7 × 7 mm QFN48 package
Learn More About ATSAMR30G18A

ATSAMR30E18A SiP

  • 32-bit microcontroller with 802.15.4 sub-GHz radio
  • User-programmable memory: 256 KB Flash and 32 KB RAM
  • 5 × 5 mm QFN32 package
Learn More About ATSAMR30E18A

SAM R30 Features

SAM R30 Module Features

ATSAMR30E18A is compact module based on the ATSAMR30E18A microcontroller and regulatory-certified with two reference antenna solutions.

  • Supporting MiWi™ and 802.15.4 based wireless mesh protocols
  • Low power consumption of less than 800 nA with RAM retention
  • Robust peripherals:
    • Up to two UART, SPI and I2C interfaces
    • High-precision 16 MHz crystal oscillator
    • 12-bit, 350 ksps Analog-to-Digital Converter (ADC)
    • Full-speed (12 Mbps) USB 2.0 interface
    • 16 external General Purpose Input/Output (GPIO) lines

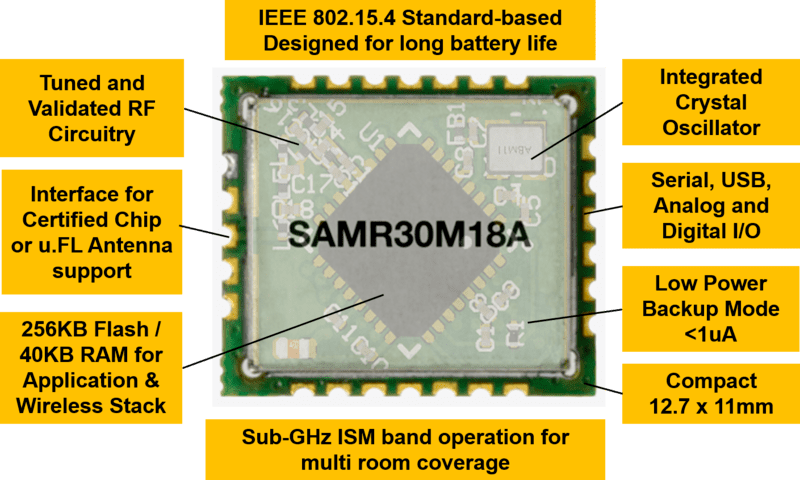

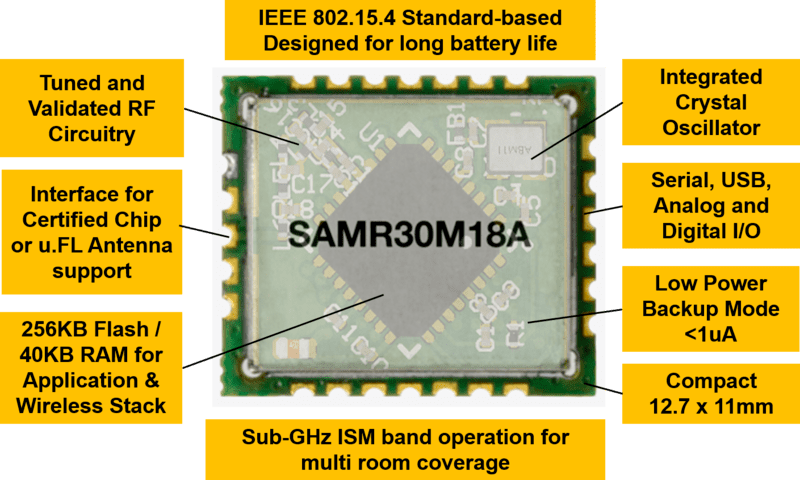

SAM R30 Module

SAM R30 SiP Features

ATASAMR30x18A SiPS are single-chip Arm® Cortex®-M0+ based 32-bit microcontrollers with a low-power sub-GHz transceiver for IEEE 802.15.4 applications.

  • Single-chip Arm® Cortex®-M0+ based core
  • Supports MiWi™ and 802.15.4 based wireless mesh protocols
  • Ultra-low power sleep modes as low as 500 nA
  • 8 KB low-power RAM
  • Robust peripherals:
    • Up to four UART, SPI and I2C interfaces
    • 12-bit, 350 ksps ADC

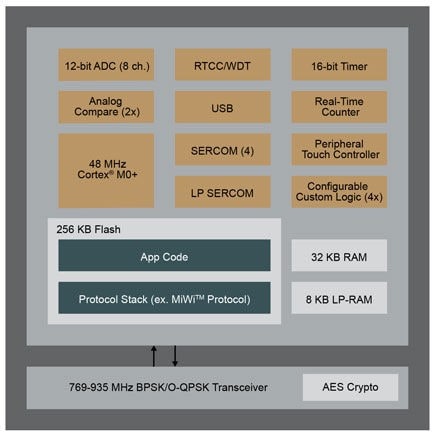

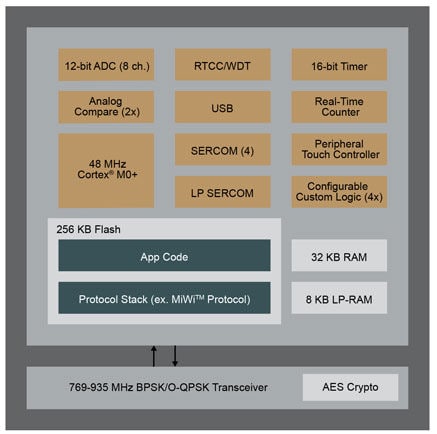

SAM R30 SiP Block Diagram

Demo and Evaluation Boards

These kits and sensor board are available to help you explore the capabilities and features of the SAM R30 family of products. They come with ready-to-use application examples available through Microchip Studio and GitHub.

Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart
ATSAMR30-XPRO
SAM R30 XPLAINED PRO EVALUATION KIT

The SAM R30 Xplained Pro is a hardware platform designed to evaluate the ATSAMR30G18A SoC.

AC164159
SAM R30M XPLAINED PRO EVALUATION KIT

The SAM R30M Xplained Pro is a hardware platform designed to evaluate the SAMR30M18A SoC.

DT100130
SAMR30M SENSOR BOARD

The ATSAMR30M Sensor Board is a hardware platform designed to evaluate the ATSAMR30M SoC.
