Power Conversion for Data Center Applications
Power Conversion and Control Solutions for Distributed Power Systems for Servers and Networking Appliances
Why Choose Our Power Conversion and Control Solutions?
Power Density
- Higher power density to maximize the use of physical space within the data center
- Power supplies designed to handle high power loads without occupying excessive space
- Innovative packaging techniques
Efficiency
- Efficient power conversion for reducing energy losses
- Reduced waste heat because of efficient power conversion
- Reduced requirement for extensive cooling
Electromagnetic Interference (EMI)
- EMI can interfere with the operation of sensitive electronic equipment
- Servers and networking equipment are susceptible to EMI, which can impact their reliability and efficiency
- Power supplies, especially switch-mode power supplies (SMPS), operate by rapidly switching on and off; this switching action generates high-frequency transients that can radiate EMI
Our Switching Converters, PMICs and Power Modules for New Designs
MCP19061 Buck-Boost Converter
Power Density
- Integrates high-side and low-side MOSFETs, which reduces the need for external components
- Thermally efficient package, such as the 3 × 3 mm DFN package
- Requires smaller inductors and capacitors
Efficiency
- Synchronous four-switch buck/boost architecture
- Integrated MOSFET drivers and linear regulators
- Replaces the traditional diode with a low-resistance MOSFET
- Thermal management features, including thermal shutdown protection
- Low quiescent current
EMI/EMC
- Fixed switching frequency, which helps in predicting and managing the EMI spectrum
- Optimized layout and pin configuration
- Easy addition of external filters and shielding if necessary

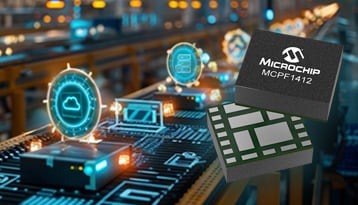

MCPF1412 Buck Converter Power Module
Power Density
- Integrated power module with inductors and capacitors
- Continuous 12A load capability
- 40% reduction in circuit design footprint
Efficiency
- No external compensation required
- Programmable operation using I2C and PMBus®
EMI/EMC
- Enable input, programmable Undervoltage Lock-Out (UVLO) circuit
- Power-good indicator
- Built-in protection features

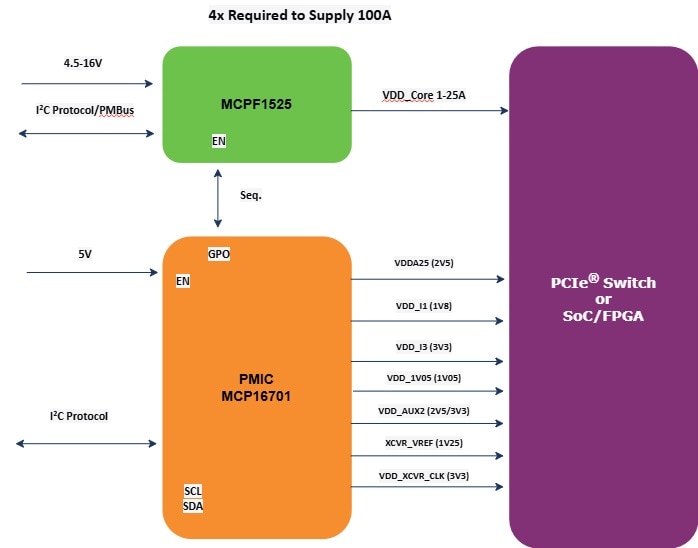

MCP16701 High-Accuracy PMIC for High-End MPU and FPGA Power Solutions
Power Density
- Integrates 13 power channels distributed as eight parallelable 1.5A buck regulators, four 300 mA LDOs, and one low-input/low-output voltage LDO controller using an external MOSFET
- Optimized circuit performance and reduction of total solution size versus discrete power designs
Efficiency
- One high-accuracy, high-PSRR LDO controller using external N-channel MOSFET (SerDes lanes supply)
- Minimum number of inductors; paralleled buck channels share the same inductor
- 100% duty cycle capability of buck channels
EMI/EMC
- Provides a clean supply voltage to SerDes lanes
- High PSRR, low noise, fast-load transient performance
- Scalability for different applications

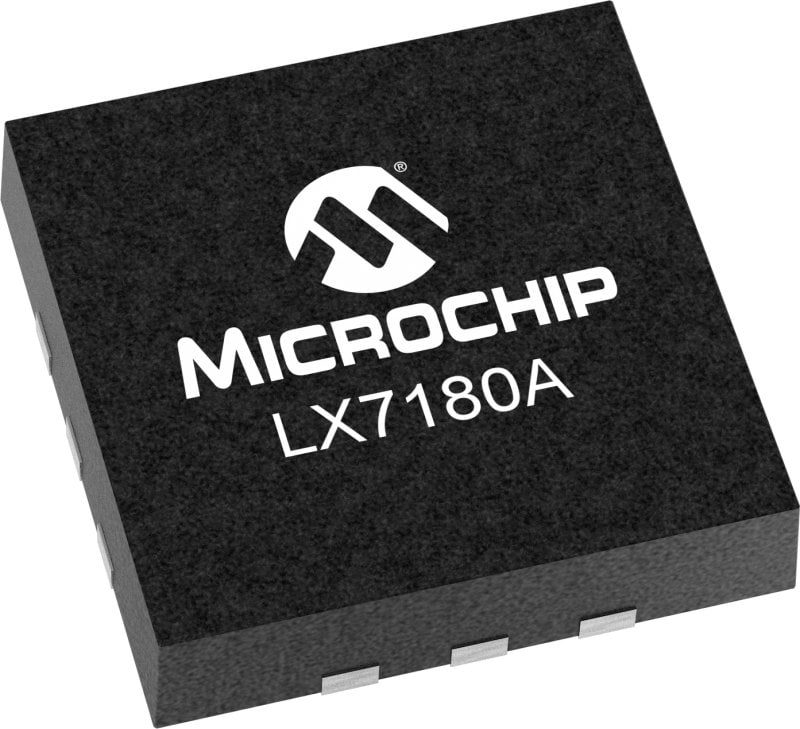

LX7180A Buck Converter With Integrated MOSFETs
Power Density
- Integrates high-side and low-side MOSFETs, which reduces the need for external components
- Includes optimized layout and thermal pad connections
Efficiency
- Low-Dropout (LDO) voltage
- High Power Supply Rejection Ratio (PSRR)
- Accurate voltage regulation to optimize the performance of the load and reduce power wastage
EMI/EMC
- Low noise output to minimize EMI
- Integrated bypass capacitors
- Thermal shutdown and current limit protection
MIC24066 and MIC24067 Buck Converters
Power Density
- Integrated FETs and gate drivers
- Compact package size for space-constrained applications
Efficiency
- Advanced control features such as adaptive on-time control, which improves transient response and stability
- Synchronous rectification to the traditional diode with a low-resistance MOSFET
EMI/EMC
- Thermal shutdown protection
- Spread spectrum modulation, which dithers the switching frequency slightly
Learn More About

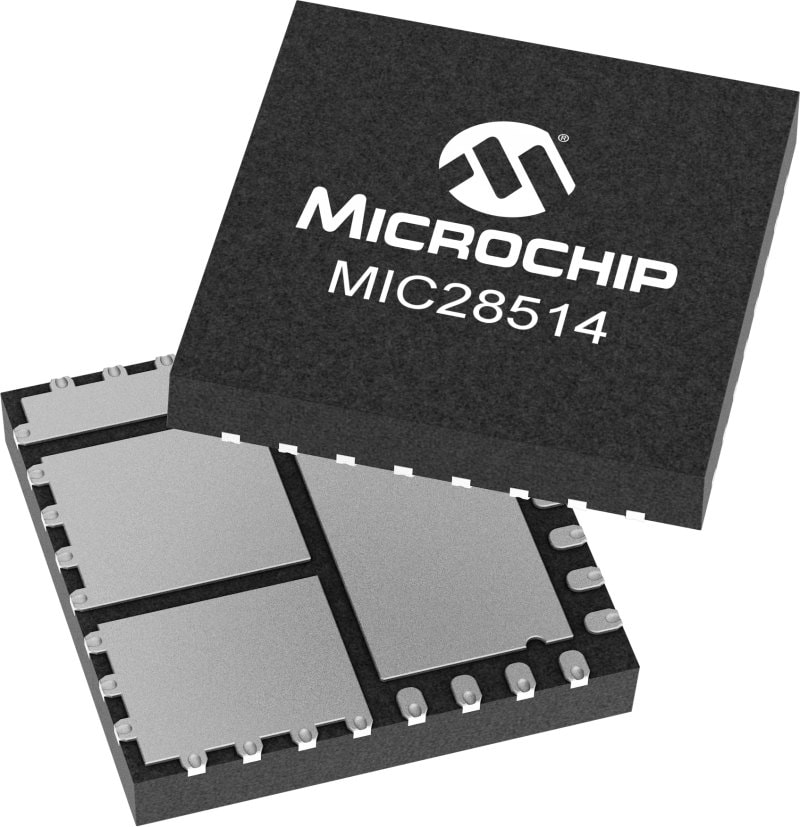

MIC28514 and MIC28515 Buck Converters
Power Density
- Integrates high-side and low-side MOSFETs, which reduces the need for external components
- Reducing the overall size of the power supply solution
Efficiency
- Advanced control features such as programmable current limit, soft-start and frequency synchronization
- Synchronous rectification to the traditional diode with a low-resistance MOSFET
- Low quiescent current
EMI/EMC
- Spread spectrum modulation, which dithers the switching frequency slightly
- Features a programmable soft-start to control the in-rush current and reduce EMI during startup
Learn More About
Power Management With Single- and Multi-Phase Controllers
MIC2132 and MIC2133 Dual-Phase, Advanced COT Controllers for Multi-Phase Operation
Power Density
- Requires smaller inductors and capacitors
- Includes integrated MOSFET drivers
Efficiency
- Synchronous rectification that improves efficiency by reducing power losses associated with diode rectification
- Less heat generation and potentially smaller heat dissipation components
EMI/EMC
- Reduced peak electromagnetic emissions by spreading the energy over a wider frequency band
- Optimized layout and filtering
- Controlled switching characteristics, including adjustable switching frequency and soft-start functionality
Learn More About

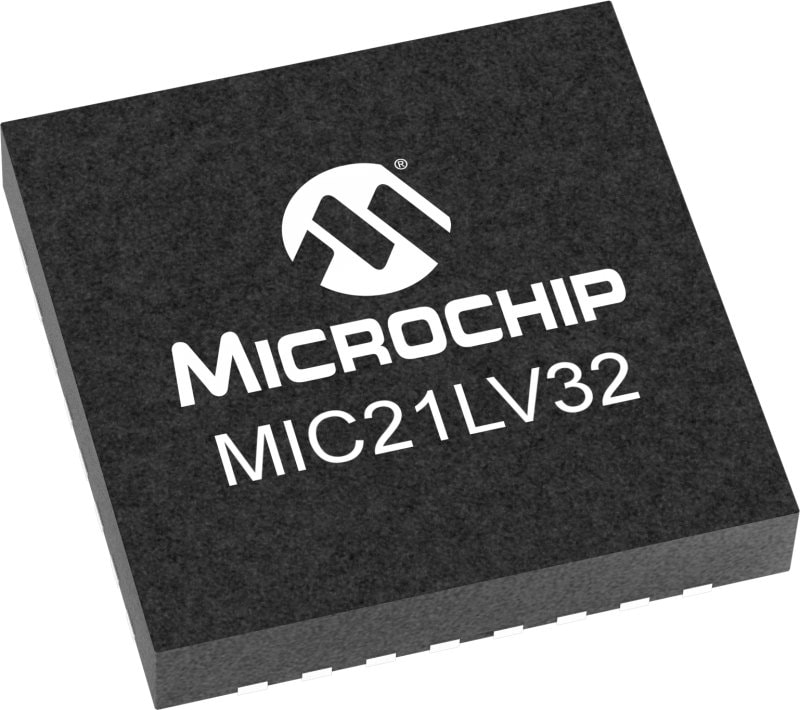

MIC21LV32 Dual-Phase, Advanced COT Controller for Multi-Phase Operation
Power Density
- Comes in a small, thermally enhanced package
- Includes high-side and low-side MOSFETs, which reduces the need for external components
- Requires smaller inductors and capacitors
Efficiency
- Low quiescent current
- Integrated power MOSFETs
- Advanced control techniques
- Battery-powered applications where extending battery life is crucial
- Optimized layout and packaging to dissipate heat effectively
EMI/EMC
- Built-in EMI filters that help suppress high-frequency noise
- Controlled rise and fall times
- Low output capacitance
- Optimized PCB layout recommendations

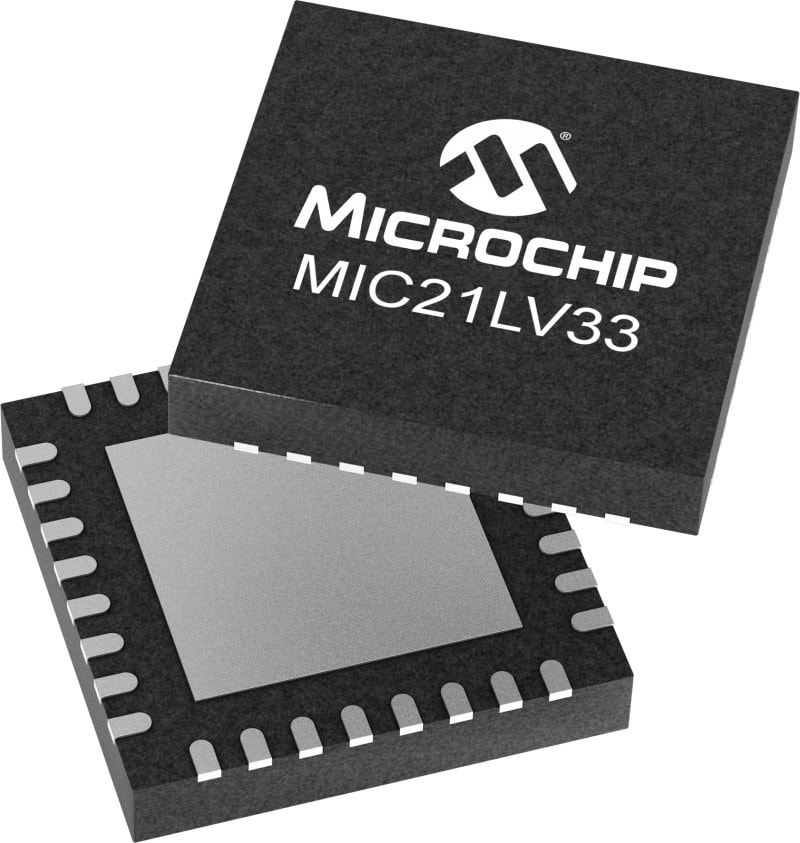

MIC21LV33 Dual-Phase, Advanced COT Pulse-Width Modulation (PWM) Controller
Power Density
- Comes in a small, thermally enhanced package
- Includes high-side and low-side MOSFETs, which reduces the need for external components
- Requires smaller inductors and capacitors
Efficiency
- Low quiescent current
- Integrated power MOSFETs
- Advanced control techniques
- Battery-powered applications where extending battery life is crucial
- Optimized layout and packaging to dissipate heat effectively
EMI/EMC
- Built-in EMI filters that help suppress high-frequency noise
- Controlled rise and fall times
- Low output capacitance
- Optimized PCB layout recommendations
Pin-Selectable, I2C-Configurable Switching Regulator ICs and Modules
We provide a range of pin-compatible, DC-DC step-down switching regulators that can lower your system's Bill of Materials (BOM) cost. Use the pin-selectable and I2C-configurable features to optimize your system’s performance, simplify layout requirements and reduce the number of external components.
The pin-selectable and I2C-configurable features create flexible power supply designs. This flexibility empowers you to address a broader range of power rails within a system, resulting in reduced development efforts and providing a significant pricing advantage. This is particularly advantageous for next-generation microprocessors (MPUs) and System-on-Chips (SoCs), which often rely on dynamic voltage scaling techniques to minimize power dissipation and enhance overall system performance. Previously, implementing such techniques typically required the use of multiple external components.
