ATA6847x 3-Phase Brushless DC (BLDC) Motor Gate Drivers

3-Phase Brushless Motor Gate Driver System Basis Chips (SBCs)

The ATA6847x family of 3-phase brushless motor gate driver SBCs is designed with advanced Silicon-on-Insulator (SOI) technology for brushless motor control. Available in both automotive and non-automotive versions and with functional safety support, these devices offer high integration for industrial, consumer and automotive applications. The ATA6847L variant’s built-in LIN transceiver streamlines your design by reducing the BOM and saving valuable PCB space. Delivering reliable, efficient and compact motor control the ATA6847x family helps you create smarter, faster and safer solutions.

Featured Products

ATA6847 40-Lead Package

ATA6847

  • Supply voltage range: 3V to 42V
  • Independent input control for high-side and low-side NMOS MOSFET gate drives
  • SPI communication
  • Temperature range (TJ): −40°C to +125°C, −40°C to +150°C (Automotive)
  • Automotive Recommended
  • Functional Safety Ready
Explore ATA6847
ATA6847 40-Lead Package

ATA6847L

  • Supply voltage range: 3V to 42V
  • Integrated LIN transceiver
  • Independent input control for high-side and low-side NMOS MOSFET gate drives
  • SPI communication
  • Temperature range (TJ): −40°C to +150°C (Automotive)
  • Automotive Recommended
  • Functional Safety Ready
Explore ATA6847L

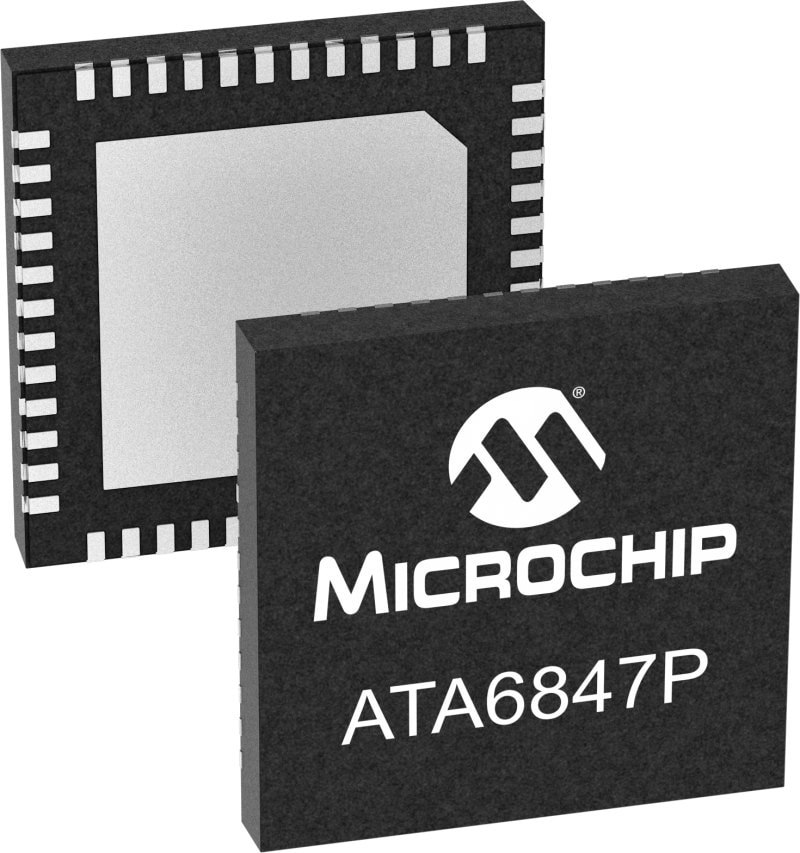

ATA6847P

  • Supply voltage range: 3V to 42V
  • Integrated LIN transceiver with TxD Dominant Timeout Disable
  • Independent input control for high-side and low-side NMOS MOSFET gate drives
  • SPI communication
  • Temperature range (TJ): −40°C to +150°C (Automotive)
  • Automotive Recommended
  • Functional Safety Ready
Explore ATA6847P
Robot in Shipping Facility

Applications

  • Automotive BLDC motors (AEC-Q100, Functional Safety ready)
    • Pumps, cooling fans, trunk opening, seat adjustments
  • Industrial robotics
  • Home appliances using BLDC motor control
  • Power tool motors
  • Hobby aircraft, boats, drones and vehicles
ATA6847 Power Tool Reference Design

Key Features

  • Wide supply voltage: 3V to 42V
  • Three half-bridge drivers configured to drive external high-side NMOS and low-side NMOS MOSFETs
  • Independent input control for high-side and low-side NMOS MOSFET gate drives
  • Built-in safety features

Reference Design

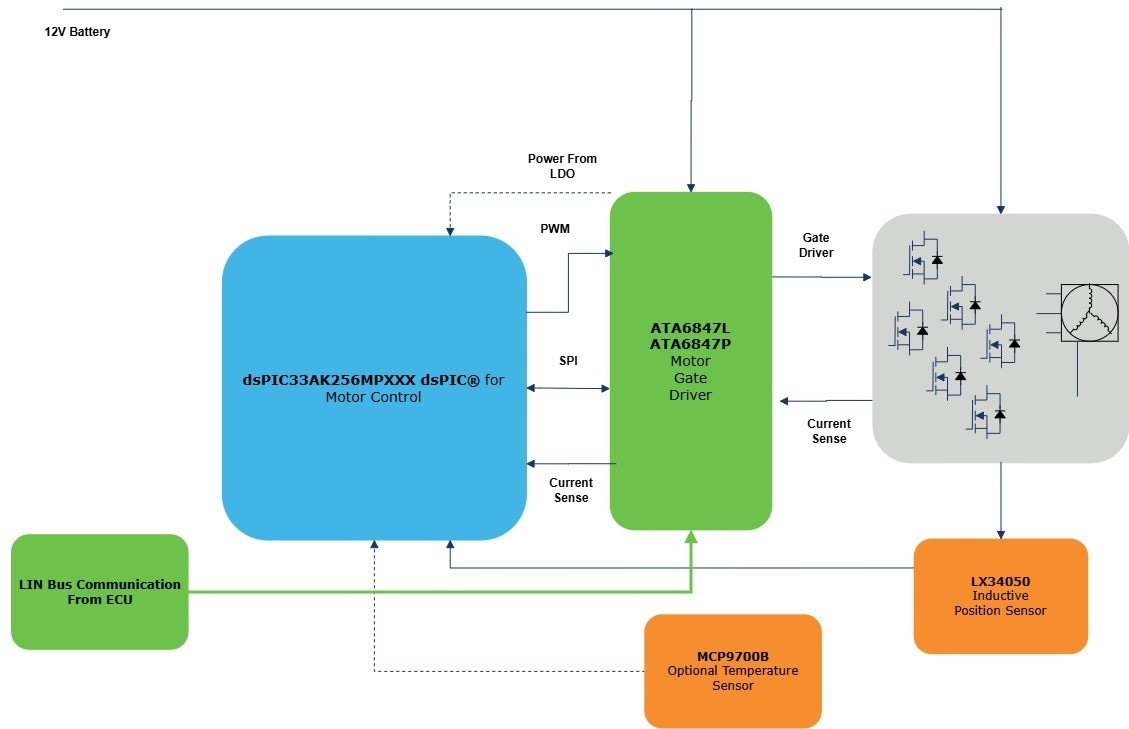

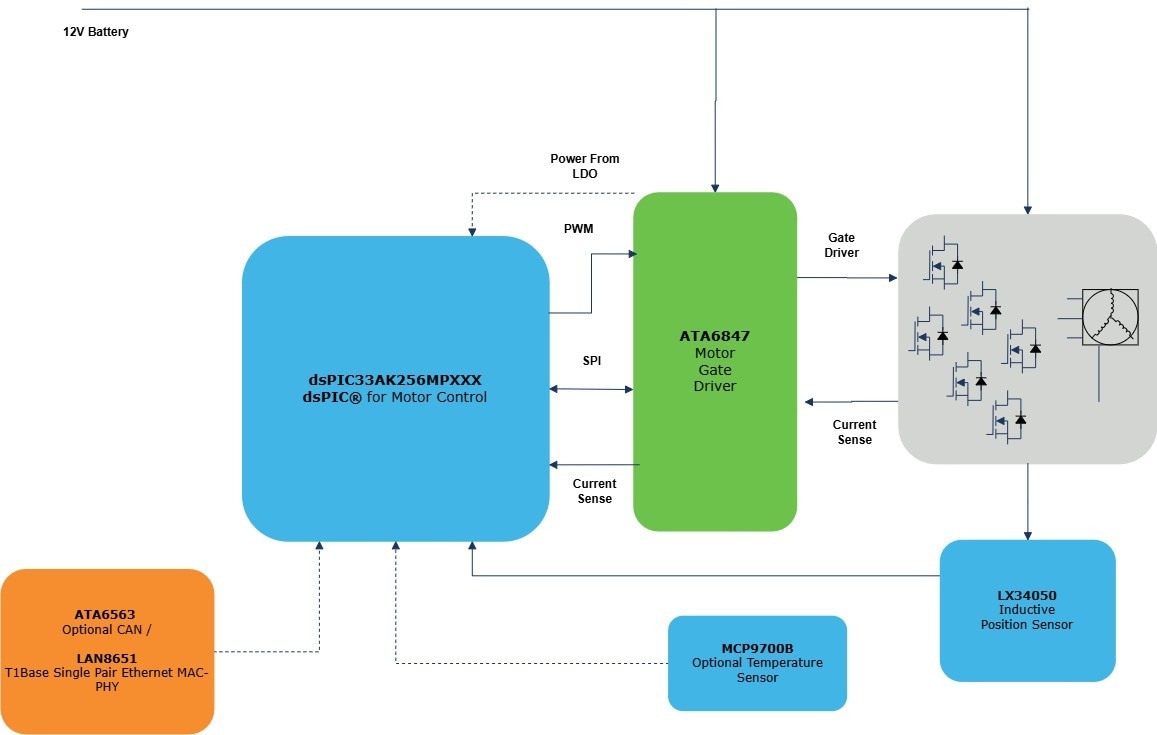

System Block Diagram Examples
