Simple, Secure and Robust Multiprotocol MCU Modules and SoCs
Designed from the ground up to enable you to go to market quickly, this family is powered by an Arm® Cortex® processor supporting Bluetooth® LE, Thread® and Zigbee® connectivity and packed with features including:
- Automotive AEC-Q100 Grade 1-qualified (125°C) SoCs and module provide reliable performance in harsh conditions
- Up to +20 dBm output power for seamless connectivity in noisy environments or longer range
- Globally pre-certified modules that shorten time to market by eliminating RF design and reducing regulatory requirements

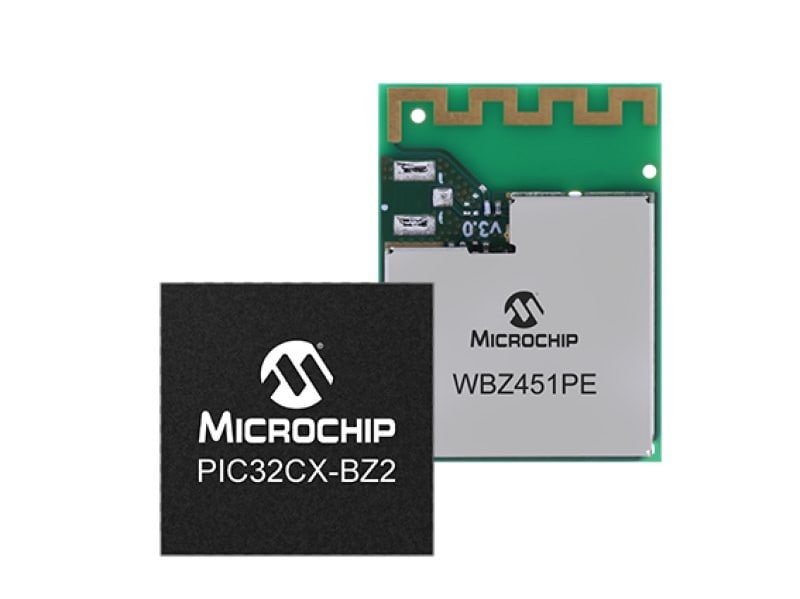

Choose the product that best fits your project; the PIC32-BZ2 family comes in selection of packages and specifications.

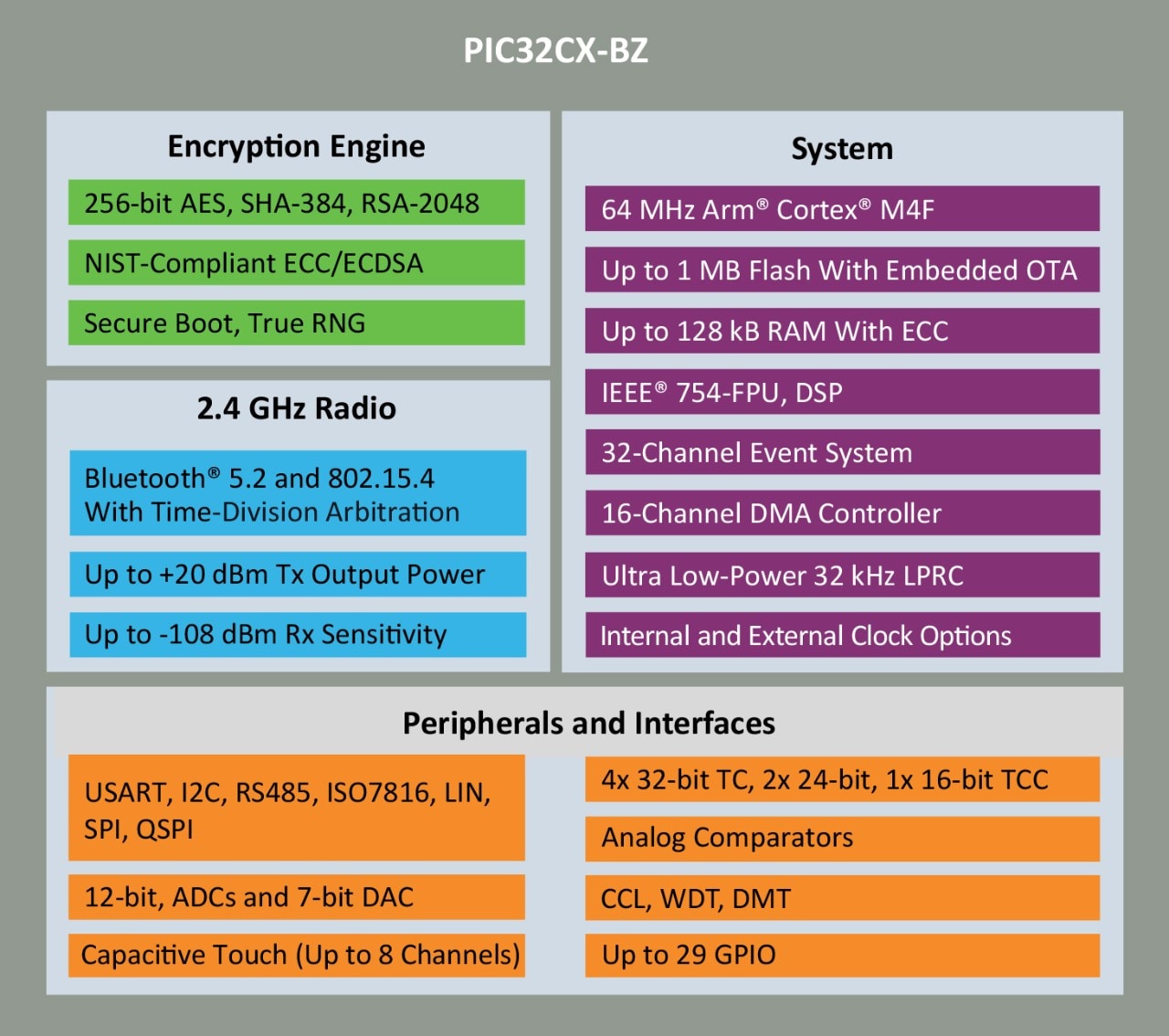

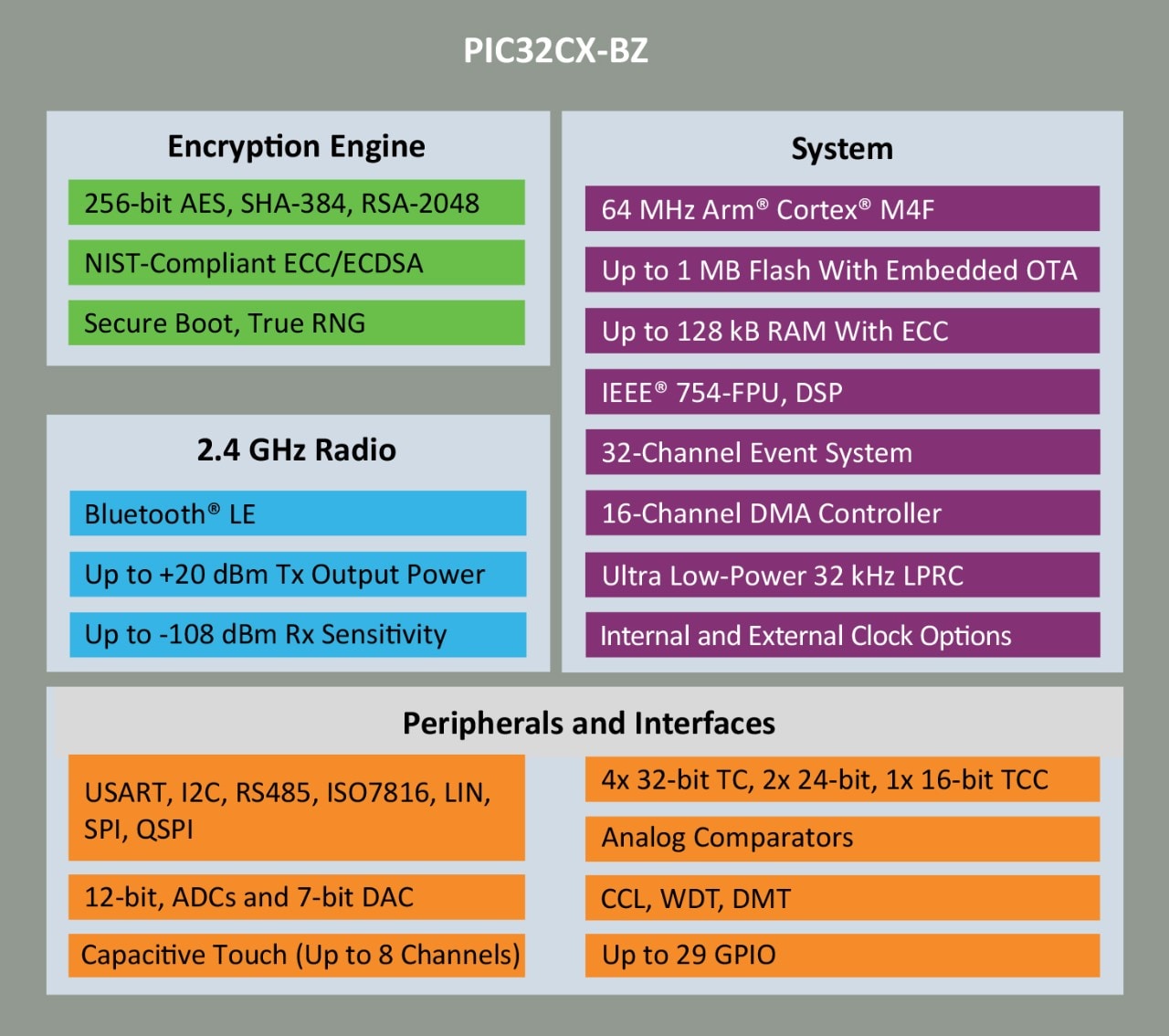

Key Features
- 64 MHz, Arm Cortex-core with up to 1 MB Flash and 128 KB RAM
- Highly integrated wireless supporting Bluetooth LE, Zigbee, Thread and proprietary protocols
- Advanced on-board security engine with TRNG, SHA and ECC
- Functional safety-ready classification (automotive ISO 26262 ASIL B and industrial IEC 61508 SIL 2 compliance)
- Package and pin variations including certified modules with PCB or U.FL antennas
Tools and Software
- Demo & Evaluation Boards
- Development Environments
The WBZ451HPE Curiosity board is an all-in-one development platform that you can use to evaluate WBZ451H high-power modules.
The PIC32CX-BZ2 and WBZ451 Curiosity board is an all-in-one development platform that you can use to evaluate PIC32CX-BZ2 SoCs and WBZ451 modules.
The PIC32CX-BZ2 and WBZ450 Curiosity board is an all-in-one development platform that you can use to evaluate PIC32CX-BZ2 SoCs and WBZ450 modules.
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
Zephyr® is an open-source Real-Time Operating System (RTOS) designed to power a wide range of devices.
Design Resources
- Application Examples
- Other Resources
Smart Warehouse
This project showcases the potential of smart environments. Follow this example to build an end-to-end solution including a Thread gateway that connects various IoT devices to the cloud.
AIoT Solutions for Industry 4.0
Harness the power of AI and IoT for industrial environments. The demo collects data via a mesh-based sensor network while controlling a robot arm and reporting data to the cloud.
And Many More
Explore our growing library of application examples, documentation and videos available through MPLAB® Discover.
Mobile App and Source Code
If your application requires a smartphone interface, we provide a mobile app and source code to get you started.
MCPRT3 Radio Test Tool
Use this Windows®-based software to test your RF configuration during development, certification and production.
Design Check Service
Our MicroCHECK design service is available at no charge to customers who have selected our wireless devices for their applications.
