Overview

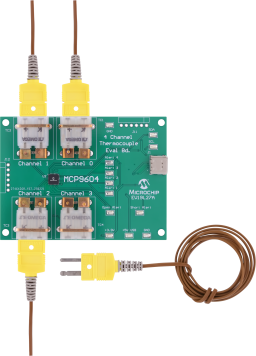

The MCP9604 Thermocouple IC Evaluation Board is used to evaluate the EMF voltage to degree Celsius converters in four MCP9604 thermocouples. Users can easily evaluate all device features using a Type K thermocouple (not included). This device also supports Types J, T, N, E, B, S and R thermocouples. Each of these types can be evaluated by replacing the Type K thermocouple connector with the corresponding connectors. The MCP9604 thermocouple IC evaluation board connects to a PC via a USB port. Temperature data can be logged using the Microchip Thermal Management Software Graphical User Interface (GUI).
- MCP9604 Thermocouple IC Evaluation Board
- USB-C® Cable
- GUI for visualizing data
- Type K Thermocouple
Note: Type K thermocouple is not included (recommended part number: 5SRTC-TT-K-24-36 sub-miniature connector)
- MCP9604 Thermocouple IC Evaluation Board
- USB-C® Cable
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EV19L27A MCP9604 Evaluation Board BOM files | Board Design Files | Download | ||
| EV19L27A MCP9604 Evaluation Board PCB-FAB | Board Design Files | Download | ||
| EV19L27A MCP9604 Evaluation Board Gerber | Board Design Files | Download | ||
| EV19L27A MCP9604 Evaluation Board SCH | Board Design Files | Download | ||
| Thermal Management Utility (v1.6.2) | Software Libraries and Firmware | Download | ||
| MCP9604 Thermocouple IC Evaluation Board User Guide | User Guides | Download |
| Tool Details |
|---|
The MCP9600 Evaluation Board is used to digitize the Thermocouple EMF voltage to degree Celsius with +/-1C accuracy
|
