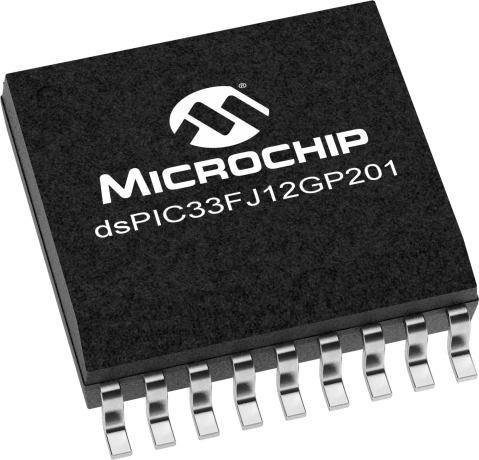

dsPIC33FJ12GP201

In Production

dsPIC33F General Purpose Digital Signal Controller (DSC) with seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs in similar packages.



    Features

        Operating Range:
      • DC – 40 MIPS (40 MIPS @ 3.0-3.6V, -40°C to +85°C)
      • Industrial temperature range (-40°C to +85°C)
      • Extended temperature range (-40°C to +125°C)High-Performance DSC CPU:
      • Modified Harvard architecture
      • C compiler optimized instruction set
      • 16-bit wide data path
      • 24-bit wide instructions
      • Linear program memory addressing up to 4M instruction words
      • Linear data memory addressing up to 64 Kbytes
      • 83 base instructions, mostly 1 word/1 cycle
      • Sixteen 16-bit General Purpose Registers
      • Two 40-bit accumulators with rounding and saturation options
      • Flexible and powerful addressing modes:- Indirect- Modulo- Bit-Reversed
      • Software stack
      • 16 x 16 fractional/integer multiply operations
      • 32/16 and 16/16 divide operations
      • Single-cycle multiply and accumulate:- Accumulator write back for DSP operations- Dual data fetch
      • Up to ±16-bit shifts for up to 40-bit data Interrupt Controller:
      • 5-cycle latency
      • 118 interrupt vectors
      • Up to 21 available interrupt sources
      • Up to 3 external interrupts
      • 7 programmable priority levels
      • 4 processor exceptionsOn-Chip Flash and SRAM:
      • Flash program memory, up to 12 Kbytes
      • Data SRAM, up to 1024 bytes
      • Boot and General Security for Program FlashDigital I/O:
      • Peripheral Pin Select Functionality
      • Up to 21 programmable digital I/O pins
      • Wake-up/Interrupt-on-Change for up to 21 pins
      • Output pins can drive from 3.0V to 3.6V
      • Up to 5V with open drain configuration
      • All digital input pins are 5V tolerant
      • 4 mA sink on all I/O pinsSystem Management:
      • Flexible clock options:- External, crystal, resonator, internal RC- Fully integrated Phase-Locked Loop (PLL)- Extremely low jitter PLL
      • Power-up Timer
      • Oscillator Start-up Timer/Stabilizer
      • Watchdog Timer with its own RC oscillator
      • Fail-Safe Clock Monitor
      • Reset by multiple sourcesPower Management:
      • On-chip 2.5V voltage regulator
      • Switch between clock sources in real time
      • Idle, Sleep and Doze modes with fast wake-upTimers/Capture/Compare:
      • Timer/Counters, up to three 16-bit timers:- Can pair up to make one 32-bit timer- 1 timer runs as Real-Time Clock with external 32.768 kHz oscillator- Programmable prescaler
      • Input Capture (up to 4 channels):- Capture on up, down or both edges- 16-bit capture input functions- 4-deep FIFO on each capture
      • Output Compare (up to 2 channels):- Single or Dual 16-Bit Compare mode- 16-bit Glitchless PWM ModeCommunication Modules:
      • 4-wire SPI- Framing supports I/O interface to simple codecs- Supports 8-bit and 16-bit data- Supports all serial clock formats and sampling modes
      • I2C™- Full Multi-Master Slave mode support- 7-bit and 10-bit addressing- Bus collision detection and arbitration- Integrated signal conditioning- Slave address masking
      • UART- Interrupt on address bit detect- Interrupt on UART error- Wake-up on Start bit from Sleep mode- 4-character TX and RX FIFO buffers- LIN bus support- IrDA® encoding and decoding in hardware- High-Speed Baud mode- Hardware Flow Control with CTS and RTSAnalog-to-Digital Converters (ADCs):
      • 10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion:- 2 and 4 simultaneous samples- Up to 10 input channels with auto-scanning- Conversion start can be manual or synchronized with 1 of 4 trigger sources- Conversion possible in Sleep mode- ±2 LSb max integral nonlinearity- ±1 LSb max differential nonlinearity CMOS Flash Technology:
      • Low-power, high-speed Flash technology
      • Fully static design
      • 3.3V (±10%) operating voltage
      • Industrial temperature
      • Low-power consumptionPackaging:
      • 18-pin SDIP/SOIC
    Parameter Name
    Value
    Architecture
    16-bit
    CPU Speed (MIPS)
    40
    Memory Type
    Flash
    Program Memory (KB)
    12
    RAM (KB)
    1
    Temperature Range C
    -40 to 125
    Operating Voltage Range (V)
    3 to 3.6
    I/O Pins
    13
    Pin Count
    20
    System Management Features
    BOR
    POR
    Yes
    WDT
    Yes
    Internal Oscillator
    7.37 MHz, 32 kHz
    Digital Communication Peripherals
    1-UART
    1-SPI
    1-I2C
    0-MSSP(SPI/I2C)
    Analog Peripherals
    1-A/D 6x12-bit @ 1100(ksps)
    Capture/Compare/PWM Peripherals
    4/2
    PWM Resolution bits
    16
    Timers
    3 x 16-bit 1 x 32-bit
    Parallel Port
    GPIO
    Cap Touch Channels
    6
    Documentation
    Data Sheets
    07/08/2011
    3471KB
      Errata




    Errata
    05/24/2012
    167KB
      Programming Specifications



    Programming Specification
    02/25/2013
    10777KB
    Programming Specification
    10/19/2010
    1322KB
      Application Notes
