RN2483

In Production

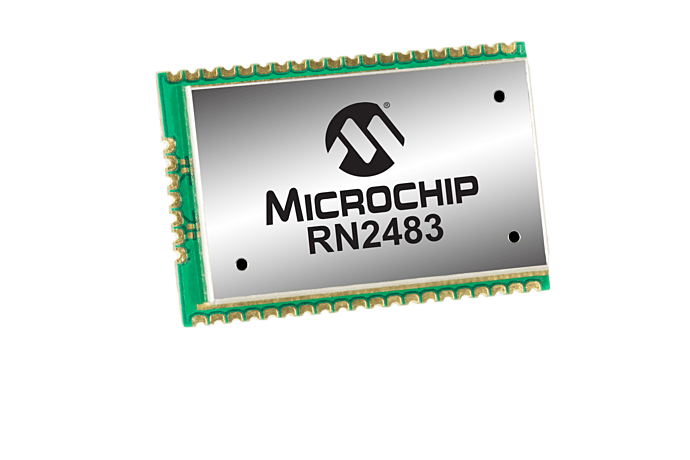

The RN2483 is a fully-certified 433/868 MHz module based on wireless LoRa® technology.  The RN2483 utilizes a unique spread spectrum modulation within the Sub-GHz band to enable long range, low power, and high network capacity.

The module's embedded LoRaWAN™ Class A protocol enables seamless connectivity to any LoRaWAN compliant network infrastructure, whether public or privately deployed.  The module is specifically designed for ease of use, which shortens development time and speeds time to market.  LoRa technology is ideal for battery-operated sensors and low power applications such as IoT, M2M, Smart City, Sensor networks, Industrial automation, and more.

The RN2483 is the first LoRa module to pass LoRa Alliance Certification testing.  It is certified to the LoRaWAN 1.0 specification, ensuring that designers can quickly and easily integrate their end devices into any LoRaWAN network.



    Features

        • On-board LoRaWAN™ Class A protocol stack
        • ASCII command interface over UART
        • Compact form factor 17.8 x 26.7 x 3 mm
        • Castellated SMT pads for easy and reliable PCB mounting
        • Device Firmware Upgrade (DFU) over UART
        • 14 GPIO for control, status, and ADC
        • Highly integrated module with MCU, crystal, EUI-64 Node Identity Serial EEPROM, Radio transceiver with analog front end, and matching circuitry
        • Environmentally friendly, RoHS compliant
        • European R&TTE Directive Assessed Radio Module
        Parameter Name
        Value
        Type
        Sub-GHz
        Output Power (dBm)
        14.00
        Host Interface
        UART
        Pin Count
        47
        Package
        Surface mount module
        RF Module
        Yes
        RF Transceiver
        Yes
        Operating Temperature Range
        -40 to 85
        Frequency Range
        434, 868 MHz
        Input Sensitivity (mVpp)
        -148
        Rx Input Sensitivity (dB)
        -148
        TX Current Consumption
        40 mA (14dBm, 868MHz)
        RX Current Consumption
        14.2 mA
        Documentation
        Data Sheets
        04/27/2017
        1142KB
          Errata




        Errata
        02/14/2016
        193KB
          Brochures




        Brochures
        10/21/2015
        825KB
          Software




        Software
        05/22/2017
        120KB
          Demo Software




        Demo Software
        06/08/2016
        16127KB
          Certifications



        Certifications
        12/22/2015
        404KB
        Certifications
        07/21/2015
        4568KB
          User Guides



        User Guides
        06/08/2016
        460KB
        User Guides
        01/17/2017
        2892KB
        User Guides
        03/16/2017
        647KB
        User Guides
        07/21/2015
        2776KB
        Pricing & Samples
        All pricing shown in USD only.
        Part Number
        Leads
        Package Type
        Temp Range
        Packing
        1+
        26+
        100+
        1000+
        5000+
        Buy
        Sample
        RN2483A-I/RM103
        47
        MODULE
        -40C to +85C
        TRAY
        12.80
        11.60
        10.96
        10.96
        10.96


        ** Device not available to purchase online. Please contact a sales office for pricing information.
        Open a microchipDIRECT account today!

        Development Tools
        • Demo & Eval Boards
        • LoRa(R) Technology Mote ( DM164138 )

          LoRa(R)

          The RN2483 LoRa® Mote is a LoRaWAN™ Class A end-device based on the RN2483 LoRa modem.  As a standalone battery-powered node, the Mote provides a convenient platform to quickly demonstrate the long-range capabilities of the modem, as well as to verify inter-operability when connecting to LoRaWAN v1.0 compliant gateways and infrastructure.

          The...

        • RN2483 LoRa(R) Technology PICtail(TM)/PICtail Plus Daughter Board ( RN-2483-PICTAIL )

          RN2483

          The RN2483 LoRa® Technology PICtail™/PICtail Plus Daughter Board is a development board that showcases the Microchip RN2483 Low-Power Long Range, LoRa® Technology Transceiver Module.

          Development of a LoRa system with the RN2483 connected to Microchip’s PIC MCU line is possible on PIC18 Explorer boards via the 28-pin PICtail connector, or...

        • LoRa(R) Technology Evaluation Kit - 800 ( DV164140-1 )

          LoRa(R)

          The LoRa® Network Evaluation Kit makes it easy for customers to test LoRa technology, range and data rate. The full-featured gateway board includes an LCD screen, SD Card for Config Data, Ethernet connection, 868 MHz antenna, and full-band capture radios. The Gateway evaluation kit also includes two RN2483 Mote boards (Part #
