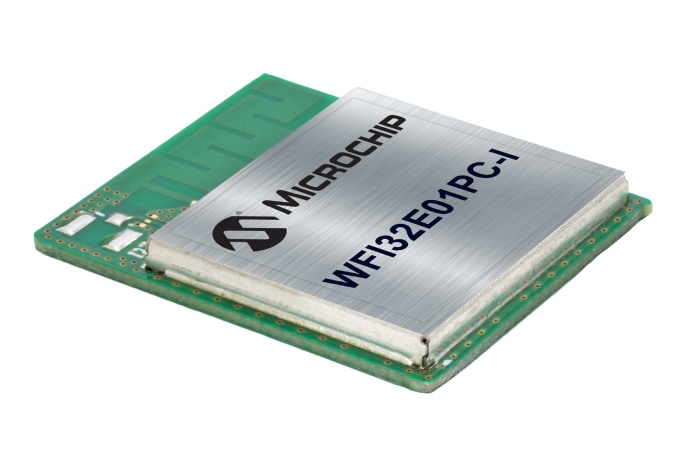

WFI32E01PC

WFI32E01PC

Standalone Wi-Fi MCU module

Status: In Production

Features:

  • 200 MHz, MIPS32® M-Class Microprocessor Core
  • 1MB Embedded Flash, 256KB SRAM (Program and Data), 64KB Data Buffer
  • High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC, and high accuracy 12-bit dual ADCs.
  • Single-band 2.4GHz b/g/n
  • Wi-Fi Security protocols supported: WPA/WPA2/WPA3 Personal, TLS, SSL
  • Trust&GO Hardware Secure Element
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

WFI32E01PC is a standalone and fully certified Wi-Fi module supporting 2.4 GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01PC contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.

WFI32E01PC has best-in-class WLAN functions covering the latest Wi-Fi security standard, Wi-Fi Protected Access 3 (WPA3) and all the general Wi-Fi functions like AP, STA, SoftAP, TLS, WPA/WAP2, etc).

The software development of WFI32E01 module is supported in Microchip MPLAB and Microchip Harmony v3.

WFI32E01PC module has the a PCB antenna and Trust&GO hardware secure element, which is pre-provisioned to popular cloud platforms.

Microchip provides total 4 module variants under the same product family, visit the design center of PIC32MZ-W1 Wi-Fi® SoC and Module Family for more details.

WFI32E01PE: the module with PCB antenna

WFI32E01UE: the module with uFL connector

WFI32E01PC: the module with PCB antenna and Trust&GO secure element

WFI32E01UC: the module with uFL connector and Trust&GO secure element

Additional Features
  • MCU Features
    • 200 MHz, MIPS32® M-Class Microprocessor Core
    • 1MB Embedded Flash, 256KB SRAM (Program and Data), 64KB Data Buffer
    • High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC, and high accuracy 12-bit dual ADCs.
    • CVD Touch input
    • 3xUART, I2C, 2xSPI
  • Wi-Fi and Network Features
    • Single-band 2.4GHz b/g/n
    • Wi-Fi Security protocols supported: WPA/WPA2/WPA3 Personal, TLS, SSL
    • Support AP, STA, SoftAP, Wi-Fi Direct
    • Optional Full Featured Hardware Crypto Accelerator
    • Antenna Type: PCB
  • Other Features
    • Trust&GO Hardware Secure Element
    • Certifications: FCC, ISED, CE, WFA (planned)
    • 54-PIN SMD, 24.5 x 20.5 x 2.5 mm
    • 3.0V to 3.6V, -40ºC to +85ºC
Parametrics
Name
Value
Type
Wi-Fi Module
Family
WFI32E01
Pin Count
54
IO Pins
37
RF Module
Yes
RF Transceiver
Yes
Operating Temperature Range
-40ºC to 85ºC
Ethernet Type
10/100Mbps
Operating Voltage Range
3.0V to 3.6V
Flash
1 MB
CPU
PIC32MZ1025W104
USB Speed
Full-Speed
SPI
2
I2C
1
UART
3
ADC Channels
12
Crypto Engine
ECC, ECDH, ECDSA, Ed25519, AES, SHA
Max Operating Frequency
200MHz

Documents

Jump to:

User Guides

Development Environment

  • Integrated Development Environments
  • Demo & Evaluation Boards
  • Code Examples
Integrated Development Environments
DV164045
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs) and Microprocessors (MPUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a

...

Learn More
PG164100
MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

Our most affordable debugger has power to impress.

The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a

...

Learn More
Demo & Evaluation Boards
PIC32WFI32E Curiosity Board
PIC32WFI32E Curiosity Board ( EV12F11A )

The PIC32 WFI32E Curiosity Board is an easy-to-use evaluation tool to evaluate the performance of WFI32E01PC Wi-Fi MCU module, which contains the PIC32MZW1, a highly integrated IoT system core supporting smart Wi-Fi functionalities and a premium MCU. The board is a full functional development platform that supports system level prototyping design and IoT cloud connectivity with voice control

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
WFI32E01PC-I
0.000000
0.000000
54
MODULE
20.5x24.5mm
ENIG
e4
WFI32E01PCI
0.000000
0.000000
54
MODULE
20.5x24.5mm
ENIG
e4
To see a complete listing of RoHS data for this device, please Click here
