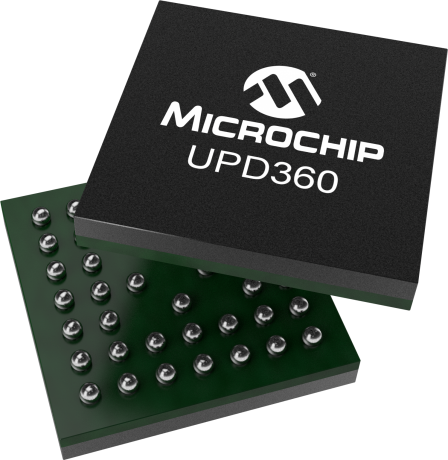

product primary image

UPD360

USB Type-C Power Delivery Controller

Status: In Production

Features:

  • Standalone charger controller for 5V / 3A applications
  • Companion PD controller with Hub / SoC for 5V / 3A applications
  • USB Power Delivery 2.0 Compliant MAC
  • USB Type-CTM (1) Connector Support with Connection Detection and Control
  • USB Type-C™ Alternate Mode Support including DP & HDMI
  • Dual Role Power (DRP) and Role Swap Support
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The UPD360 is a highly integrated small form factor USB Type-C/PD controller compliant with USB Type-C™ specification and USB Power Delivery specification v.2.0. UPD360 provides cable detection and orientation, and implements baseband communication with a partner USB Type-C/PD Device. UPD360 can function as a standalone charger or as a companion Power Delivery controller to an external MCU/SoC, using the integrated I2C/SPI interface.

The UPD360 integrates two VCONN FETs with Rp/Rd switching, a port power controller that supports up to 5V/3A on VBUS, with over-current and over-voltage detection. The device also supports Alternate Modes, like DisplayPort and HDMI. In the companion mode a software stack executes in the external MCU/SoC to support DRP modes, power profiles and alternate mode functionality.

The UPD360 targets a wide range of applications in Consumer (Notebooks, Monitors, Docking Stations) and Industrial (Point of Sale Systems, Printers) market segments.

For product comparison, please consider: UPD350

Additional Features
  • Standalone charger controller for 5V / 3A applications
  • Companion PD controller with Hub / SoC for 5V / 3A applications
  • USB Power Delivery 2.0 Compliant MAC
  • USB Type-CTM (1) Connector Support with Connection Detection and Control
  • USB Type-C™ Alternate Mode Support including DP & HDMI
  • Dual Role Power (DRP) and Role Swap Support
  • Integrated Analog blocks reduce BOM and footprint
    • VCONN FETs with Rp/Rd Switching
    • Dead Battery Rd termination
    • Current Sense for Vbus Overcurrent Conditions
    • Voltage Sense for Vbus Overvoltage Conditions
    • • Integrated 5V/3A Port Power Controller (PPC)
    • - Supports up to 5V/3A on VBUS
    • - Supplies 500mA, 900mA, 1.5A, and 3.0A per
    • USB Type-C™ Specification
    • • Integrated 3.3V Power Switch
    • - Provides Dead Battery Support
    • - Automatically Switch between VBUS and Main +3.3V
    • • USB Power Delivery MAC
    • - Compliant with USB Power Delivery Specification Revision 2.0
    • Power Delivery Packet Framing
    • CRC Checking/Generation
    • 4B/5B Encoding/Decoding
    • BMC Encoding/Decoding
    • EOP/SOP Generation for PD Frames
    • SOP Detection and SOP Header Processing
    • Separate RX/TX FIFOs
    • Automatic GoodCRC Message Generation
    • Automatic Retry Generation
    • Error Handling
    • Low Standby Power Support via Sleep State
  • USB Type-C Cable Detect Logic
    • Auto Cable Attach & Orientation Detection
    • Routes Baseband Communication to Respective CC Pin per Detected Orientation
    • VCONN Supply Control for Active Cable
    • Configurable Downstream Facing Port (DFP) and Upstream Facing Port (UFP) Modes
    • Charging Current Capability Detection
    • Detection of Debug Accessory Mode, Audio Adapter Accessory Mode
  • +1.8V I2C (1 MHz) Interface Supports Communication & Configuration via Companion CPU/SoC
  • Alternate Mode Support for DisplayPort
  • Power and I/Os
    • Integrated 1.8V Voltage Regulator
    • up to 16 Configurable General Purpose I/O Pins
  • • Software C Libraries
  • • Small Form Factor 4 x 4 mm 44-WFBGA Package
Parametrics
Name
Value
Description
USB Type-C™ Power Delivery 2.0 Port Controller
USB PD Specification
2
Standalone Operation
Yes
Recommended Controllers
USB58xx, USB59xx
Integrated Power Switch
Yes
Integrated Vconn FETs
Yes
Integrated Port Protection
yes
FRS Capable
Yes
Power Capability
internal 15W
Dead Battery Support
Yes
Operating Modes
USB 2.0, USB 3.0 DisplayPort
Temp. Range Max.
70

Documents

Jump to:

Data Sheets

07/19/2017
1553KB

Application Notes


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
UPD360-A/6HX
0.040500
0.632653
44
WFBGA
4x4x0.8mm
SAC105
e8
UPD360-B/6HX
0.040500
0.632653
44
WFBGA
4x4x0.8mm
SAC105
e8
UPD360-C/6HX
0.040500
0.632653
44
WFBGA
4x4x0.8mm
SAC105
e8
UPD360T-A/6HX
0.040500
0.133333
44
WFBGA
4x4x0.8mm
SAC105
e8
UPD360T-B/6HX
0.040500
0.133333
44
WFBGA
4x4x0.8mm
SAC105
e8
UPD360T-C/6HX
0.040500
0.133333
44
WFBGA
4x4x0.8mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
