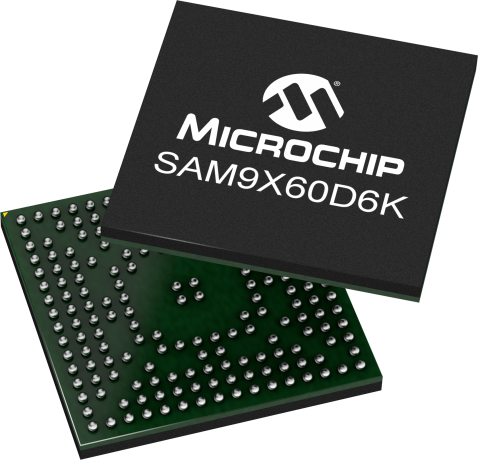

product primary image

SAM9X60D6K

SAM9X60D6K

Status: Samples Available

Features:

  • 600MHz ARM926EJ-S Core, 200MHz System/Memory Bus
  • 64Mbit integrated SDRAM
  • 24-bit LCD Controller with overlays up to 1024x768 resolution
  • 2D Graphics Engine, Camera Interface
  • Built-in Class D Amplifier
  • Thirteen FLEXCOMs (USART, SPI and I²C)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAM9X60D6K is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 64Mbit integrated SDRAM memory. The SAM9X60D6K supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.

Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X60D6K power sequencing specifications. Go to Treelinktool under DC/DC converters, SAM9X60 and SDRAM for further information.

Additional Features
  • High-performance Architecture:
    • 600MHz ARM926EJ-S Core, 200MHz System/Memory Bus
    • 32 kB Data Cache and 32kB Instruction Cache
    • Memories:
    • 64Mbit integrated SDRAM
    • 64 kB internal SRAM
  • Enhanced User Interface capability:
    • 24-bit LCD Controller with overlays up to 1024x768 resolution
    • 2D Graphics Engine, Camera Interface
    • Built-in Class D Amplifier
  • Large number of connectivity options:
    • Dual 10/100 Ethernet, Dual CAN, Dual SD Card/eMMC
    • Two High-speed USB Host + One High-speed Host or Device
    • Thirteen FLEXCOMs (USART, SPI and I²C)
  • State-of-the-Art Security:
    • Hardware Encryption Engine (TDES, AES and SHA) and True Random Generator (TRNG)
    • Secure Boot with on-chip Secure Key Storage (OTP)
    • Physical protection against tamper, 8 tamper detection pins
    • On the Fly scrambling / unscrambling for memories
  • Rich Development Ecosystem:
    • Free mainline Linux® Distribution
    • MPLAB® X Integrated Development Environment and MPLAB® Harmony v3
    • Multiple Third-party Software and Hardware Solutions
  • Optimized for Easy PCB Design and Low EMI:
    • TFBGA196, 11x11, 0.65 mm pitch
    • Power/GND balls placed and distributed for optimal decoupling
    • Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI
Parametrics
Name
Value
Part Family
SAM9X60D1G
Core
ARM926
Max CPU Speed (MHz)
600
Core Voltage Range (V)
1.02 to 1.21
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32kHz, 12MHz
SRAM (KB)
68
L1 Cache Memory (Instructions) (KB)
32
L1 Cache Memory (Data) (KB)
32
DRAM Interface
LPDDR/DDR2/SDRAM/LPSDR
DRAM Bus Size (Bits)
32
Internal DRAM Type
SDRAM
Internal DRAM Amount (MB)
8
NAND Interface
Yes
ECC Bits on NAND Interface
24
Number of EBIs
1
SDIO/SD-CARD/eMMC
2
QSPI
1
Direct Memory Access Channels
51
Max I/O Pins
112
Pincount
196
UART
13
ISO 7816
6
SPI
6
I2C
13
SSC
1
CAN
2
Type of CAN Module
CAN
LIN
Yes
USB Device and Host Ports
1 HS
USB Host Only Ports
2 HS
10/100 Ethernet MAC
2
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Camera Interface
Yes
Secure Bootloader
Yes
Crypto Engine
Yes
Anti-Tamper Pins
8
Secure Key Storage (Fuse bits)
11264
ADC Input
12
Max ADC Resolution (bits)
12
Max ADC Sampling Rate (ksps)
1000
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 32-Bit Digital Timers
6
Input Capture
6
Standalone Output Compare/Standard PWM
6
Quadrature Encoder Interface
2
Temperature Range (C)
-40 to 85

Documents

Jump to:

Data Sheets


14184KB

User Guides


23990KB

Development Environment

  • Integrated Development Environments
  • Configurators
  • Emulators & Debuggers
  • Programmers
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

The SAM-ICE catalog part number (CPN) is now End of Life (EOL) and can no longer be offered.

For MPU and SAM developers, SAM-ICE has been replaced by the J-32 Debug Probe (DV164232)

Alternatively, SAM developers can use either Atmel ICE (

...

Learn More
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Configurators
Linux4SAM.org
Linux4SAM (Linux software and tools) ( Linux4SAM.org )

Microchip has created and supports a free-of-charge Linux OS offering for our entire portfolio of microprocessors (MPUs). We are committed to the open-source Linux community and provide full coverage of System-on-Chip (SoC) peripherals in the Linux kernel. We also offer AT91Bootstrap and U-Boot bootloaders.

The Linux4SAM website contains links to

...

Learn More
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

SAM-BA software provides an open set of tools for in-system programming of internal and external memories connected to our 32-MCUs and MPUs. You can program your device through the JTAG, debug UART or USB interfaces. If you use the MPU’s secure boot feature, you should use the Secure SAM-BA edition.

The latest generations of MPUs are supported on SAM-BA v3 available on the

...

Learn More
Emulators & Debuggers
J-32 Debug Probe
J-32 Debug Probe ( DV164232 )

Learn More
Add To Cart
Programmers
J-32 Debug Probe
J-32 Debug Probe ( DV164232 )

Learn More
Add To Cart
Demo & Evaluation Boards
High-Performance WVGA Display Module with Max-Touch(r)
High-Performance WVGA Display Module with Max-Touch(r) ( AC320005-5 )

The High-Performance WVGA LCD Display Module with maXTouch® Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This board is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation

...

Learn More
Add To Cart
SAM9X60-EK Evaluation Kit
SAM9X60-EK Evaluation Kit ( DT100126 )

The SAM9X60-EK Evaluation Kit is ideal for evaluating and prototyping with the high performance, ultra-low power SAM9X60 ARM926EJ-S based microprocessor (MPU) running up to 600 MHz. The SAM9X60 MPU features powerful peripherals for connectivity and user interface applications, and offers advanced security functions.

Connectors and expansion headers allows for easy customization and...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SAM9X60D6K-I/4GB
2.022727
196
TFBGA
11x11x1.20mm
SAC105
e8
SAM9X60D6KT-I/4GB
0.604667
196
TFBGA
11x11x1.20mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
