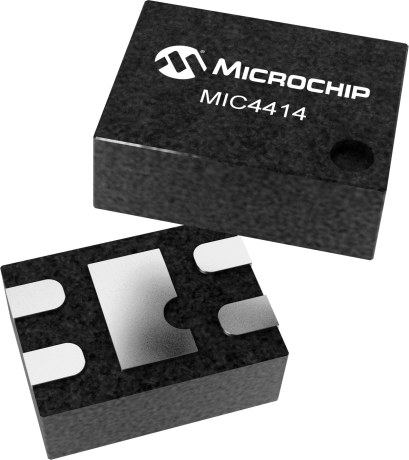

MIC4414

1.5A Non-Inverting Low Side MOSFET Driver

Status: In Production

Features:

  • Ultra-small 4-pin 1.2mm x 1.2mm thin QFN package
  • +4.5V to +18V operating supply voltage range
  • 1.5A peak current
  • 3.5Ω output resistance at 18V
  • 9Ω output resistance at 5V
  • Low steady-state supply current
  • 77µA control input low
  • 445µA control input high
  • 12ns rise and fall times into 1000pF load
  • MIC4414 (non-inverting)
  • MIC4415 (inverting)
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC4414 and MIC4415 are low-side MOSFET drivers designed to switch an N-channel enhancement type MOSFET in low-side switch applications. The MIC4414 is a non-inverting driver and the MIC4415 is an inverting driver. These drivers feature short delays and high peak current to produce precise edges and rapid rise and fall times. The MIC4414/15 are powered from a 4.5V to 18V supply and can sink and source peak currents up to 1.5A, switching a 1000pF capacitor in 12ns. The on-state gate drive output voltage is approximately equal to the supply voltage (no internal regulators or clamps). High supply voltages, such as 10V, are appropriate for use with standard N-channel MOSFETs. Low supply voltages, such as 5V, are appropriate for use with many logic-level N-channel MOSFETs. In a low-side configuration, the driver can control a MOSFET that switches any voltage up to the rating of the MOSFET. The MIC4414 and MIC4415 are available in an ultra-small 4-pin 1.2mm x 1.2mm thin QFN package and is rated for –40°C to +125°C junction temperature range.

Additional Features
    • Ultra-small 4-pin 1.2mm x 1.2mm thin QFN package
    • +4.5V to +18V operating supply voltage range
    • 1.5A peak current
      • 3.5Ω output resistance at 18V
      • 9Ω output resistance at 5V
    • Low steady-state supply current
      • 77µA control input low
      • 445µA control input high
    • 12ns rise and fall times into 1000pF load
    • MIC4414 (non-inverting)
    • MIC4415 (inverting)
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Non-inverting
Peak Output Current (source/sink, A)
1.5/1.5
Output Resistance (source/sink, Ω)
3.5/3.5
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
12/12
Rise/Fall Time (Tr/Tf, ns)
12/12
Capacitive Load Drive
1000 pF in 12 ns
Features
Very small footprint

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC4414YFT Evaluation Board
MIC4414YFT Evaluation Board ( MIC4414YFT-EV )

The MIC4414 and MIC4415 are low-side MOSFET drivers designed to switch an N-channel enhancement type MOSFET in low-side switch applications. The MIC4414 is a non-inverting driver and the MIC4415 is an inverting driver. These drivers feature short delays and high peak current to produce precise edges and rapid rise and fall times.

Learn More
Add To Cart
