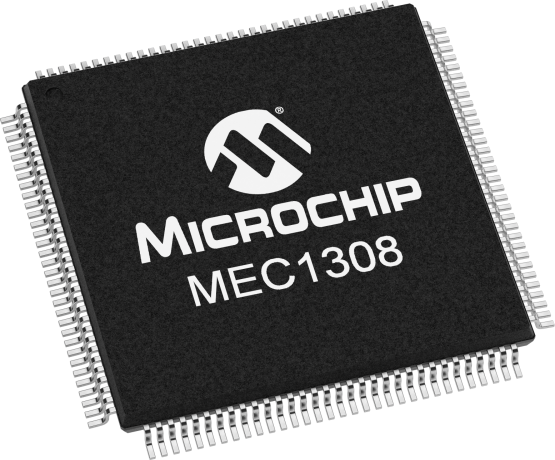

product primary image

MEC1308

Embedded Controller

Status: In Production

Features:

  • 8051 system controller
  • 32-bit ARM system controller
  • 132 DQFN package
  • External SPI flash
  • 64KB RAM
  • 18x8 keyboard scan matrix
  • 7 additional General Purpose Output Pins
  • 4 SMBus ports
  • 4 analog to digital converter channels
  • 4 LED
  • 2 low-power timers
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

MEC1308 is a Notebook I/O Controller which incorporates a high-performance 8051-based keyboard system controller with 64K byte RAM, 1 Kbyte Boot Rom, and 16-bytes battery packed registers.

The 64K RAM is loaded via HOST/8051 SPI Memory Interface, which can be configured in Switched SPI Flash Configuration or Parallel Shared Serial Peripheral Interface (SPI) Flash Configuration. It has four PS/2 ports; a 16C550A-compatible 2-pin UART for Debug Port; a Consumer Infrared Receiver for Vista, two 8584-style I2C/SMBus controllers with two selectable ports per controller; and a Serial IRQ peripheral agent interface. MEC1308 has two separate power planes to provide “instant on” and system power management functions. Additionally, the MEC1308 incorporates sophisticated power control circuitry (PCC).

Family parts
MEC1308-NU
MEC1308-NU-TR

Additional Features
    • 8051 system controller
    • 32-bit ARM system controller
    • 132 DQFN package
    • External SPI flash
    • 64KB RAM
    • 18x8 keyboard scan matrix
    • 48 GPIO Pins
      • 7 additional General Purpose Output Pins
    • 4 SMBus ports
    • 4 analog to digital converter channels
    • 4 LED
    • 2 low-power timers
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
UART
Y
Host Interface
LPC
Code Storage
External SPI Flash
Operating Temperature
0° C to +70° C
Low Power Timers
2
Fan Tachometer Inputs
2
Max Operating Frequency
32 MHz
Data RAM
256 Byte
GPIO
48
PWM
4
Package
128 pin VTQFP, 144 ball TFBGA
VBAT-Powered, Power Control Interface
N
LED
4
Analog to Digital Converter
4 ch
SMBus Ports
4
BC Link
1
SPI_Host
1
Flash/Code RAM
64KB RAM
PECI
2
System Controller
8-bit
Counter/Timers
2

Documents

Jump to:

Board Design Files

06/24/2015
437KB

Software Library

08/25/2013
25KB

Development Environment

  • Software Libraries
Software Libraries
MEC1308

Learn More

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MEC1308-NU
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
MEC1308-NU-TR
0.557500
1.030000
128
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
