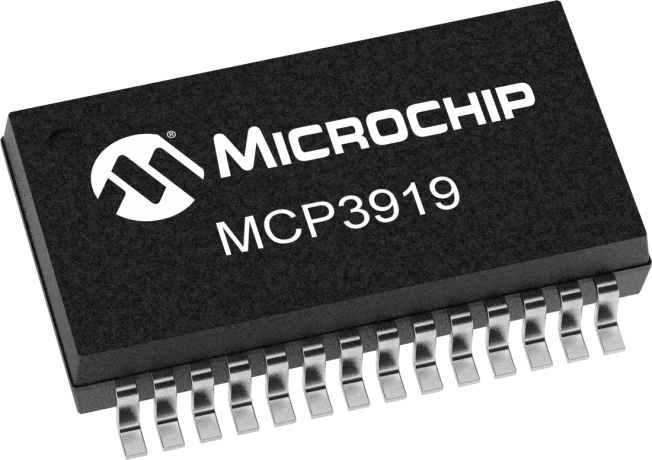

MCP3919

Status: In Production

Features:

  • Three Synchronous Sampling 24-bit Delta-Sigma A/D Converters
  • 93.5 dB SINAD, -107 dBc THD, 112 dBFS SFDR
  • Enables 0.1% Typical Active Power Measurement Error over a 10,000:1 Dynamic Range
  • 2.7V - 3.6V AVDD, DVDD
  • 4 MHz Maximum Sampling Frequency
  • 16-Bit CRC Checksum and Interrupt Alert
  • Register Map Lock
  • Oversampling Ratio up to 4096
  • Ultra Low Power Shutdown Mode with <10 µA
  • -122 dB Crosstalk between the Two Channels
  • Low Drift 1.2V Internal Voltage Reference: 9 ppm/°C
  • Differential Voltage Reference Input Pins
  • High Gain PGA on Each Channel (up to 32V/V)
  • Phase Delay Compensation with 1 µs Time Resolution
  • Separate Data Ready Pin for Easy Synchronization
  • Individual 24-bit Digital Offset and Gain Error Correction for Each Channel
  • Flexible serial interface that includes both SPI and a simple 2-wire interface ideal for polyphase shunt energy meters
  • Continuous Read/Write Modes for Minimum Communication
  • Available in 28-Lead QFN and SSOP Packages
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP3919 is a 3V three channel Analog-Front-End (AFE) containing three synchronous sampling Delta-Sigma Analog-to-Digital Converters (ADC), three PGAs, phase delay compensation block, internal voltage reference, digital offset and gain error calibration registers and high-speed 20 MHz SPI compatible serial interface.  A 2-wire serial interface mode greatly reduces system cost by requring only a single bidirectional isolator per phase. The MCP3919 AFE is capable of interfacing to a variety of voltage and current sensors including shunts, current transformers, Rogowski coils and Hall effect sensors

Additional Features
    • Three Synchronous Sampling 24-bit Delta-Sigma A/D Converters
    • 93.5 dB SINAD, -107 dBc THD, 112 dBFS SFDR
    • Enables 0.1% Typical Active Power Measurement Error over a 10,000:1 Dynamic Range
    • 2.7V - 3.6V AVDD, DVDD
    • Programmable Data Rate up to 125 ksps
      • 4 MHz Maximum Sampling Frequency
    • Advanced Security Features
      • 16-Bit CRC Checksum and Interrupt Alert
      • Register Map Lock
    • Oversampling Ratio up to 4096
    • Ultra Low Power Shutdown Mode with <10 µA
    • -122 dB Crosstalk between the Two Channels
    • Low Drift 1.2V Internal Voltage Reference: 9 ppm/°C
    • Differential Voltage Reference Input Pins
    • High Gain PGA on Each Channel (up to 32V/V)
    • Phase Delay Compensation with 1 µs Time Resolution
    • Separate Data Ready Pin for Easy Synchronization
    • Individual 24-bit Digital Offset and Gain Error Correction for Each Channel
    • Flexible serial interface that includes both SPI and a simple 2-wire interface ideal for polyphase shunt energy meters
    • Continuous Read/Write Modes for Minimum Communication
    • Available in 28-Lead QFN and SSOP Packages
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Measurement Error
0.1%
Dynamic Range
10000:1
Gain Selection
1:32
Voltage Reference Drift Typical (ppm/°C)
9
PSRR % typ
-73
ADC Resolution (bits)
24
# of Channels
3
Power Type
Single-Phase Poly-Phase
Device Type
Analog-Front-End
Interface
SPI/2-Wire
Operating Voltage (V)
2.7 - 3.6
Temperature Range (°C)
-40 to 125

Documents

Jump to:

Data Sheets

03/13/2019
6035KB

User Guides

06/24/2015
1076KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP3919 Evaluation Board
MCP3919 Evaluation Board ( ADM00573 )

The MCP3919 ADC Evaluation Board system provides the opportunity to evaluate the performance of the MCP3919 three-channel Analog Front End (AFE). It also provides a development platform for 16-bit microcontroller-based applications, using the existing 100-pin PIC ® microcontroller Plug-in Module (PIM) systems that are compatible with the Explorer 16 Evaluation Board (DM240001) and other high...

Learn More
Add To Cart

Similar Devices

Product
No. of Channels
ADC Resolution (bits)
ADC SINAD (dB)
Price 5K
3
16
78
$0.67
6
16
78
$1.44
7
16
78
$2.28
3
24
84
$1.97
4
24
84
$2.49
7
24
84
$2.94
2
24
91
$1.44
6
24
91
$3.09
2
16
n/a
$1.34
2
16
n/a
$1.36
2
16
n/a
$1.47
2
16
82
$1.48
2
24
93.5
$1.46
2
24
94.5
$1.40
4
24
93.5
$2.34
6
24
94.5
$3.04
8
24
94.5
$3.76
1
24
93.5
$1.12
3
24
93.5
$1.84
2
24
94.5
$1.82
2
24
94.5
$1.82
2
24
94.5
$1.82
3
24
94.5
$1.82
2
24
94.5
$1.82
