MCP3903

In Production

For product comparison, please consider: MCP3913
View Side By Side Comparison

The MCP3903 six channel analog front end, ideal for three phase energy measurement, power monitoring, and other applications requiring multiple high accuracy ADCs. The MCP3903 features high accuracy 16/24-bit delta-sigma A/D converters, internal programmable gain amplifiers, an internal voltage reference, and phase-delay compensation with up to 91 dB SINAD. Communication with the MCP3903 is done via the SPI interface enabling control of the PGAs, oversampling ratio for control of the output data rate (up to 64 ksps), resolution, dithering, shutdown and other communication features.



    Features

        • Six simultaneously sampled 16/24-bit resolution delta-sigma A/D converters
        • 91 dB SINAD, -100 dBc THD, 102 dB SFDR
        • Programmable data rate up to 64 ksps
        • Internal voltage reference with low drift of 5 ppm/°C
        • Internal PGAs on each channel with gain of 32 V/V
        • Phase delay compensation between channels with 1 µs resolution
        • Extended Temperature Range: -40°C to +125°C
    Parameter Name
    Value
    Measurement Error
    0.1%
    Gain Selection
    1:32
    Voltage Reference Drift Typical (ppm/°C)
    5
    PSRR % typ
    -68 dB
    ADC Resolution (bits)
    24
    # of Channels
    6
    Power Type
    Poly-Phase
    Device Type
    Analog-Front-End
    Interface
    SPI
    Operating Voltage (V)
    4.5 - 5.5
    Temperature Range (°C)
    -40 to 125
    Documentation
    Data Sheets
    07/19/2011
    1617KB
      Sell Sheets




    Sell Sheets
    09/27/2011
    157KB
      Product Document




    Product Document
    07/25/2011
    1465KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample

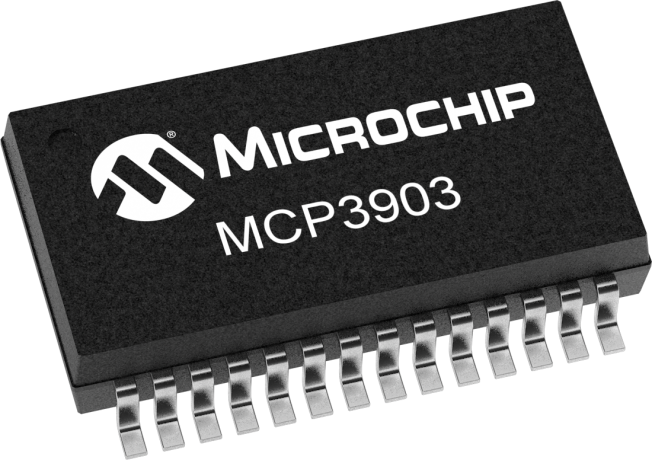

    MCP3903-E/SS
    28
    SSOP
    -40C to +125C
    TUBE
    4.39
    3.66
    3.33
    3.22
    3.18
    MCP3903-I/SS
    28
    SSOP
    -40C to +85C
    TUBE
    4.27
    3.56
    3.24
    3.13
    3.09
    MCP3903T-E/SS
    28
    SSOP
    -40C to +125C
    T/R
    4.39
    3.66
    3.33
    3.22
    3.18

    MCP3903T-I/SS
    28
    SSOP
    -40C to +85C
    T/R
    4.27
    3.56
    3.24
    3.13
    3.09


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • MCP3903 Eval Board for 16-bit MCU ( ADM00310 )

      MCP3903

      The MCP3903 ADC Evaluation Board for 16-bit MCU system provides the ability to evaluate the performance of the MCP3903 six channel sigma-delta ADC. It also provides a development platform for 16-bit PIC-based applications, using existing 100-pin PIM systems.

      Devices Supported: MCP3903, PIC24F, PIC24H, dsPIC33, MCP2200

    Similar Devices
    Product
    No. of Channels
    ADC Resolution (bits)
    ADC SINAD (dB)
    Price5K
    3
    16
    78
    $0.67
    6
    16
    78
    $1.44
    7
    16
    78
    $2.28
    3
    24
    84
    $1.97
    4
    24
    84
    $2.49
    7
    24
    84

    2
    24
    91
    $1.44
    6
    24
    91
    $3.09
    2
    16
    n/a
    $1.34
    2
    16
    n/a
    $1.36
    2
    16
    n/a
    $1.47
    2
    16
    82
    $1.48
    2
    24
    93.5
    $1.46
    2
    24
    94.5
    $1.40
    4
    24
    93.5
    $2.34
    6
    24
    94.5
    $3.04
    8
    24
    94.5
    $3.76
    1
    24
    93.5
    $1.12
    3
    24
    93.5
    $1.84
    2
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    3
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MCP3903-I/SS
    0.229200
    0.489362
    28
    SSOP
    .209in
    Matte Tin
    e3
    MCP3903T-I/SS
    0.229200
    0.333333
    28
    SSOP
    .209in
    Matte Tin
    e3
    MCP3903-E/SS
    0.229200
    0.489362
    28
    SSOP
    .209in
    Matte Tin
    e3
    MCP3903T-E/SS
    0.229200
    0.333333
    28
    SSOP
    .209in
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
