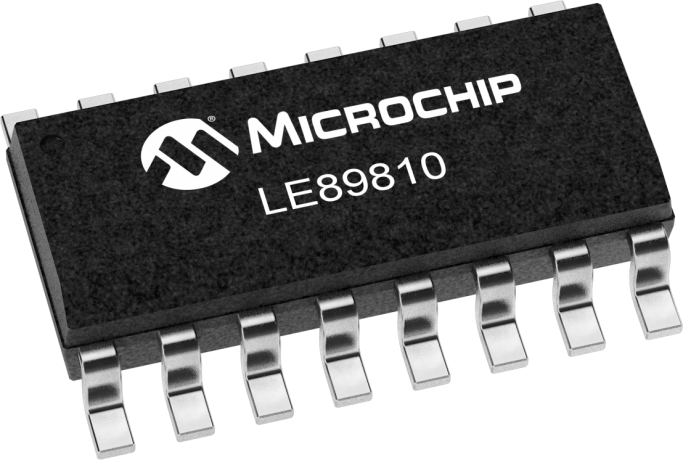

product primary image

LE89810

Single Channel FXS Chip Set

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The LE89810 SLIC is part of the VE8910 chipset, an integrated, low-cost 1FXS chipset that is optimized for VoIP access devices. The chipset implements a complete BORSHT functionality by providing the necessary voice interface functions to power, ring, signal, and connect one or more telephones. On the digital side, the VE8910 chipset provides standard MPI and PCM interfaces to leading VoIP processors. The VE8910 features low power consumption in all modes of operation; In on-hook Low Power Standby, it typically draws 50 mW, less than half that of its nearest competitor. The VE8910 chipset is supported by the Microchip VoicePath™ API-II VP API-II) software package, which enables designers to program a single hardware circuit for worldwide markets. The VP API-II 'C' code is used to abstract the Microchip devices from application code while providing functions for controlling, supervising, and testing a set of subscriber lines. The Microchip VeriVoice™ Test Suite software package provides metallic loop testing based on the Telcordia GR-909 and TIA-1063 recommendations.

Please consider this device LE9643

Parametrics
Name
Value
Application
Broadband Gateway SLIC
Series
VE890
Loop Length
Short
Battery Topology
Tracking
Output Voltage (V) max
100
Number of Ports
1
Release
True

Documents

Jump to:

Data Sheets


Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE89810BSC
0.543700
14.66666
16
SOIC
.300In
Matte Tin
e3
LE89810BSCT
0.543700
1.510000
16
SOIC
.300In
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
