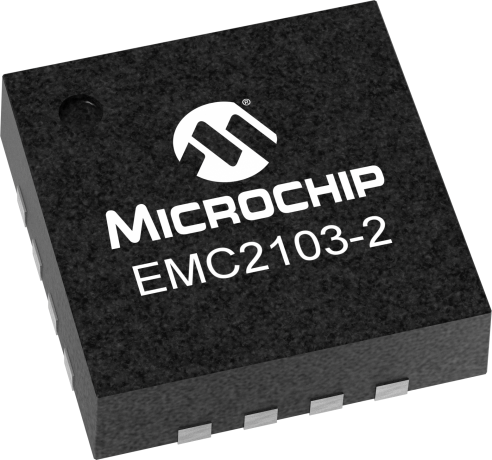

EMC2103-2

Status: In Production

Features:

  • 4-wire fan compatible
  • High and low frequency PWM
  • 2.5% accuracy from 500RPM to 16k RPM
  • Detects fan aging and variation
  • Allows programmed fan response to temperature
  • Controls fan speed or PWM drive setting
  • Allows externally set temperature data to drive fan
  • Supports DTS data from CPU
  • Supports 45nm, 60nm, and 90nm CPU diodes
  • Automatically detects and supports CPUs requiring BJT or Transistor models
  • Resistance error correction
  • Supports discrete transistors (i.e. 2N3904)
  • 1°C accurate (60°C to 125°C)
  • 0.125°C resolution
  • Cannot be altered by software
  • 65°C to 127°C Range
  • Programmable High and Low Limits for all channels
  • 2°C accuracy
  • 0.125°C resolution
  • 3.3V Supply Voltage
  • SMBus Alert compatible
  • Two dedicated GPIOs (EMC2103-2 and EMC2103-4 only)
  • Available in 12-pin, QFN RoHS Compliant Package (EMC2103-1) or 16-pin, QFN RoHS Compliant Package (EMC2103-2 and EMC2103-4)
  • Notebook Computers
  • Projectors
  • Graphics Cards
  • Industrial and Networking Equipment
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The EMC2103 is an SMBus compliant fan controller with up to up to 3 external and 1 internal temperature channels. The fan driver can be operated using two methods each with two modes. The methods include an RPM based Fan Speed Control Algorithm and a direct PWM drive setting. The modes include manually programming the desired settings or using the internal programmable temperature look-up table to select the desired setting based on measured temperature.

The temperature monitors offer 1°C accuracy (for external diodes) with sophisticated features to reduce errors introduced by series resistance and beta variation of substrate thermal diode transistors commonly found in processors.

The EMC2103 also includes a hardware programmable temperature limit and dedicated system shutdown output for thermal protection of critical circuitry.

For product comparison, please consider: EMC2113

Additional Features

    Features

    • Programmable Fan Control circuit
      • 4-wire fan compatible
      • High and low frequency PWM
    • RPM based fan control algorithm
      • 2.5% accuracy from 500RPM to 16k RPM
      • Detects fan aging and variation
    • Temperature Look-Up Table
      • Allows programmed fan response to temperature
      • Controls fan speed or PWM drive setting
      • Allows externally set temperature data to drive fan
      • Supports DTS data from CPU
    • Up to Three External Temperature Channels (EMC2103-2 only)
      • Supports 45nm, 60nm, and 90nm CPU diodes
      • Automatically detects and supports CPUs requiring BJT or Transistor models
      • Resistance error correction
      • Supports discrete transistors (i.e. 2N3904)
      • 1°C accurate (60°C to 125°C)
      • 0.125°C resolution
    • Hardware Programmable Thermal Shutdown Temperature
      • Cannot be altered by software
      • 65°C to 127°C Range
    • Programmable High and Low Limits for all channels
    • Internal Temperature Monitor
      • 2°C accuracy
      • 0.125°C resolution
    • 3.3V Supply Voltage
    • SMBus 2.0 Compliant
      • SMBus Alert compatible
    • Two dedicated GPIOs (EMC2103-2 and EMC2103-4 only)
    • Available in 12-pin, QFN RoHS Compliant Package (EMC2103-1) or 16-pin, QFN RoHS Compliant Package (EMC2103-2 and EMC2103-4)

    Applications

    • Notebook Computers
    • Projectors
    • Graphics Cards
    • Industrial and Networking Equipment
Parametrics
Name
Value
comments
Fan Controller with Thermal Mgt
# Fans Drivers
1
PWM/Linear Control
PWM
# Remote Temperature Monitors
3
Ambient Temperature Sensor
1
Typical Accuracy
±0.5
Max Accuracy
±1.0
Maximum Temperature Range
-40 to 125
Vcc Range (V)
3.0 to 3.6
SMBus Alert
Yes
System Shutdown
Yes

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
# Fans Drivers
PWM/Linear Control
# Remove Temp Monitors
Price 5K
1
PWM
1
$1.01
1
PWM
1
$1.12
1
PWM
1
$1.12
2
PWM
1
$1.29
1
Linear
1
$1.29
2
PWM and Linear
1
$1.46
1
Linear
1
$1.07
1
PWM
1
$1.12
1
PWM
0
$0.67
2
PWM

$0.79
3
PWM

$0.90
5
PWM

$1.35









RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
EMC2103-2-AP-TR
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
