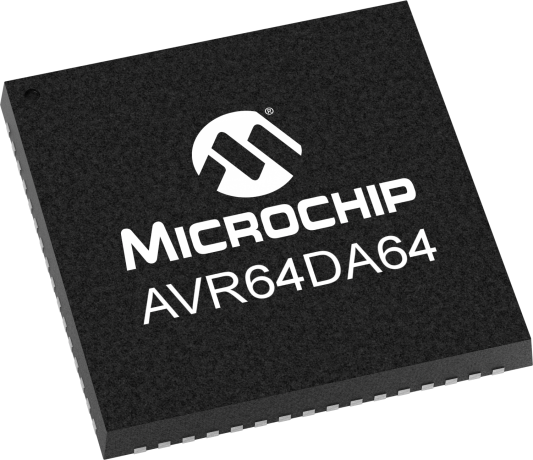

AVR64DA64

Real Time Control and Analog Performance

Status: Samples Available

Features:

  • Peripheral Touch Controller (PTC)
  • 12-bit Differential Analog-to-Digital Converter (ADC)
  • 10-bit Digtial-to-Analog Converter (DAC) with Output Buffer
  • Zero-Cross Detector (ZCD)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

AVR® DA Product Family
The AVR DA family of microcontrollers feature the well-known AVR® CPU, now running at up to 24 MHz across the full supply voltage range of 1.8V to 5.5V. The family includes 32 KB, 64 KB and 128 KB Flash variants in 28- to 64-pin package options. The AVR DA family is designed to bring capacitive touch sensing and real-time control functions to applications including industrial control, home appliance products, automotive and Internet of Things (IoT).

The family uses the latest Core Independent Peripherals with low power features and 5V operation for increased noise immunity.  The Event System, Configurable Custom Logic (CCL), along with intelligent analog peripherals, like 12-bit differential ADC, Zero-Cross Detect (ZCD), DAC and the latest generation Peripheral Touch Controller (PTC) with driven shield technology make the AVR DA  family perfect for low-latency control applications and capacitive touch user interfaces. The high memory density of the AVR DA family is well suited for communications stack intensive applications, both wired and wireless.

AVR64DA64
The AVR64DA64 microcontroller is part of the AVR DA family featuring the AVR processor with hardware multiplier - running at up to 24 MHz and with 64 KB Flash, 8 KB SRAM and 512 bytes of EEPROM in 64-pin packages. The AVR64DA64 will be available in TQFP and VQFN package options.

The AVR64DA64 product supports as many as 46 self-capacitance and 529 mutual capacitance touch channels, which makes the AVR DA the perfect choice for human interface applications where multiple capacitive touch keys, sliders, wheels or 2D surface are required.

Functional Safety:
This product is recommended for safety critical applications targeting both industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation such as FMEDA report and Safety Manual can be provided on request. Certified development tools are also available for this product. Please contact your local Microchip sales office or your distributor for more information.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
24
SRAM (B)
8,192
Data EEPROM/HEF (bytes)
512
Digital Communication Peripherals
6-UART, 2-SPI, 2-I2C
Timers
7 x 16-bit
ADC Input
22 ch, 12-bit
Number of Comparators
3
Temperature Range (°C)
-40 to 125
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
64
Low Power
Yes

Documents

Jump to:

Data Sheets

Brochures

Code Examples

Product Brief

Reference Manuals

Development Environment

  • Integrated Development Environments
  • Compilers
  • Software & Configurators
  • Emulators & Debuggers
  • Production Programmers
  • Demo & Evaluation Boards
  • Code Examples
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Atmel-Studio
Atmel Studio IDE ( Atmel-Studio )

Studio 7 is the integrated development platform (IDP) for developing and debugging all AVR® and SAM microcontroller applications. The Atmel Studio 7 IDP gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. It also connects seamlessly to the debuggers, programmers and development kits that support AVR® and SAM...

Learn More
IAR EW for AVR
IAR Embedded Workbench for AVR ( IAR EW for AVR )

IAR Embedded Workbench for AVR is a complete set of powerful C/C++ development tools with extensive support for AVR Microcontroller families. IAR offers a completely integrated development environment incorporating a compiler, an assembler, a linker and a debugger. IAR Embedded Workbench for AVR features world-leading

...

Learn More
Compilers
MPLAB-XC8
MPLAB XC8 Compiler ( MPLAB-XC8 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

  • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
  • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
...

Learn More
AVR-GCC
AVR GCC ( AVR-GCC )

The AVR® Toolchain is a collection of tools/libraries used to create applications for AVR microcontrollers. This collection includes compiler, assembler, linker and Standard C and math libraries.

Most of these tools are based on efforts from GNU (www.gnu.org), and some are developed by Microchip. For more information please refer to the release notes.

The Atmel...

Learn More
Software & Configurators
atmel-start
START ( atmel-start )

Atmel START is an innovative online tool for intuitive, graphical configuration of embedded software projects. It lets you select and configure software components, drivers and middleware, as well as complete example projects, specifically tailored to the needs of your application. The configuration stage lets you review dependencies between software components, conflicts and hardware constraints....

Learn More
Emulators & Debuggers
Atmel-ICE Full Kit
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
Add To Cart
Production Programmers
Atmel-ICE Full Kit
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
Add To Cart
Demo & Evaluation Boards
Curiosity Nano Touch Adapter Kit
Curiosity Nano Touch Adapter Kit ( AC80T88A )

The Microchip Curiosity Nano Touch Adapter is a hardware extension platform to ease the connection between Curiosity Nano kits and Xplained Pro touch extension boards.

The Curiosity Nano Touch Adapter bridges from the Curiosity Nano MCU kits to the XPRO connected touch extension boards.

  • QT7 Xplained Pro Extension Kit  (
...

Learn More
Add To Cart
AVR128DA48 Curiosity Nano Evaluation Kit
AVR128DA48 Curiosity Nano Evaluation Kit ( DM164151 )

Take your next idea to market with a development board that you can keep in your pocket. With full program and debug capabilities, the AVR128DA48 Curiosity Nano Evaluation Kit offers complete support for your next design.

Use either Atmel Studio 7 or MPLAB X IDEs as a magnifying glass to look into your MCU and step through the debug. Free, easy-to-use graphical programming tools,

...

Learn More
Add To Cart
PIC16F15244 Curiosity Nano Evaluation Kit
PIC16F15244 Curiosity Nano Evaluation Kit ( EV09Z19A )

Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the PIC16F15244 Curiosity Nano Evaluation Kit offers complete support for your next design.

With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and...

Learn More
Code Examples

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
28
128
16,384
$1.11
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
32
128
16,384
$1.22
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
48
128
16,384
$1.32
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
64
128
16,384
$1.53
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
28
32
4,096
$0.91
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
32
32
4,096
$0.99
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
48
32
4,096
$1.15
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
28
64
8,192
$0.99
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
32
64
8,192
$1.09
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
48
64
8,192
$1.20
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
64
64
8,192
$1.40
PTC, 12-bit diff ADC, EVSYS, 10-bit DAC, ZCD, CCL
