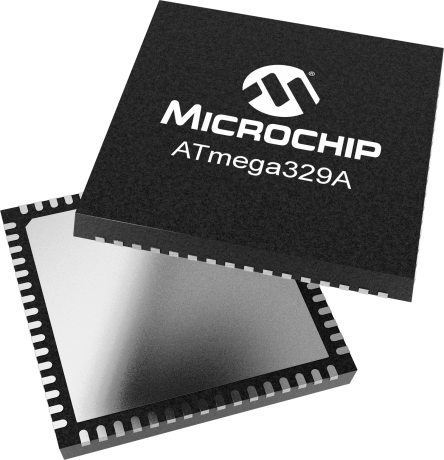

ATmega329A

Status: In Production

Features:

  • 4 x 25 Segment LCD Driver
  • 32KBytes In-System Self-programmable Flash Program Memory
  • 1Kbytes EEPROM
  • 2Kbytes Internal SRAM
  • Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  • Data retention: 20 years at 85°C/100 years at 25°C
  • Optional Boot Code Section with Independent Lock Bits
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1KB EEPROM, 2KB SRAM, 54 general purpose I/O lines, 32 general purpose working registers, a JTAG interface for boundary-scan and on-chip debugging/programming, a complete on-chip LCD controller with internal contrast control, three flexible timer/counters with compare modes, internal and external interrupts,serial programmable USART, a universal serial interface (USI) with start condition detector, an 8-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, SPI serial port, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Additional Features
    • 4 x 25 Segment LCD Driver
    • High Endurance Non-volatile Memory Segments
      • 32KBytes In-System Self-programmable Flash Program Memory
      • 1Kbytes EEPROM
      • 2Kbytes Internal SRAM
      • Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
      • Data retention: 20 years at 85°C/100 years at 25°C
      • Optional Boot Code Section with Independent Lock Bits
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
32
CPU Speed (MIPS/DMIPS)
20
SRAM Bytes
2,048
Data EEPROM/HEF (bytes)
1024
Digital Communication Peripherals
1-UART, 2-SPI, 1-I2C
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 4PWM
Timers
2 x 8-bit, 1 x 16-bit
Number of Comparators
1
Segmented LCD
100
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
64
