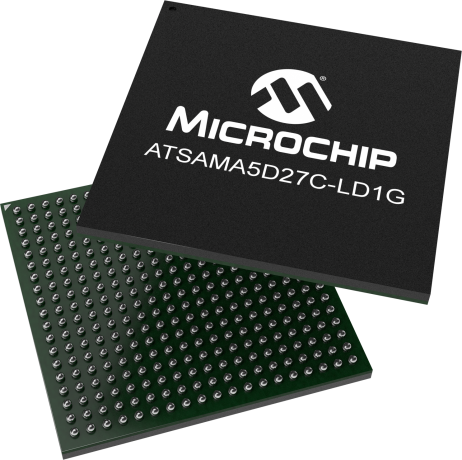

ATSAMA5D27C-LD1G

LPDDR2 SiP 1Gbit

Status: In Production

Features:

  • 1Gbit LPDDR2, 32-bit databus
  • Peripheral Touch Controller
  • Secure Boot
  • Free Linux® distributions
  • MPLAB X Integrated Development Environment
  • MPLAB Harmony 3
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAMA5D27C-LD1G is a high-performance, low-power Arm Cortex-A5 CPU-based embedded microprocessor (MPU) running up to 500 MHz, with 1Gbit LPDDR2 memory. The device integrates powerful peripherals for connectivity and user interface applications, and offers advanced security functions (Arm TrustZone® , tamper detection, secure data storage, secure boot, etc.), as well as high-performance crypto accelerators AES, SHA and TRNG.

The SAMA5D2 series is delivered with free Linux® distributions, MPLAB X IDE, MPLAB Harmony v3 and bare metal C examples.

Microchip provides fully tested and validated power management solutions complying with the SAMA5D27C-LD1G specific power sequencing needs -enabling a risk-free solution immediately on first power-up. Go to the Treelinktool -> DC/DC converters and select SAMA5D2 and LPDDR2 memory to find more details.

Additional Features
  • Low System Cost and High Value Integration:
    • 1Gbit LPDDR2, 32-bit databus
    • Peripheral Touch Controller
    • Embedded audio subsystem
    • 0.8mm ball pitch package reduces PCB design complexity
    • Simple power management scheme
  • Ultra-Low Power Consumption:
    • Low-power architecture for extensive battery life
    • <200uA retention mode with fast wake-up
    • 5uA in backup mode
  • State-of-the-Art Security:
    • Secure Boot
    • Execution of encrypted code with an “on-the-fly” encryption-decryption process
    • Integrity Check Monitor of the memory content
    • Hardware encryption engine
    • Tamper pins and secure key storage
  • Extensive Ecosystem:
    • Free Linux® distributions
    • MPLAB X Integrated Development Environment
    • MPLAB Harmony 3
    • Complete set of C examples for bare metal users
    • Multiple third-party software and hardware partners
Parametrics
Name
Value
Part Family
SAMA5D2
Core
Cortex-A5
FPU
Yes
ARM Neon
Yes
Arm Trust Zone®
Yes
Max CPU Speed (MHz)
500
Core Voltage Range (V)
1.1 to 1.32
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32kHz, 12MHz
SRAM (KB)
128
L1 Cache Memory (Instructions) (KB)
32
L1 Cache Memory (Data) (KB)
32
L2 Cache Memory (KB)
128
DRAM Bus Size (Bits)
16
Internal DRAM Type
LPDDR2
Internal DRAM Amount (MB)
128
NAND Interface
Yes
ECC Bits on NAND Interface
32
Number of EBIs
1
SDIO/SD-CARD/eMMC
2
QSPI
2
Direct Memory Access Channels
51
Max I/O Pins
128
Pincount
361
UART
10
ISO 7816
10
SPI
7
I2C
7
SSC
2
CAN
2
Type of CAN Module
CAN
LIN
Yes
USB Device and Host Ports
1 HS
USB Host Only Ports
1 HS & 1 HSIC
10/100 Ethernet MAC
1
Ethernet PTP & AVB Support
Ethernet PTP
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Hardware Touch Peripheral
PTC
Camera Interface
Yes
Integrity Check Monitor (ICM)
Yes
Secure Bootloader
Yes
Crypto Engine
Yes
External Memory Encrypt/Decrypt
Yes
Anti-Tamper Pins
8
Secure Key Storage (Fuse bits)
544
ADC Input
12
Max ADC Resolution (bits)
12
Max ADC Sampling Rate (ksps)
1000
Temp Sensor
Yes
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
4
Max 32-Bit Digital Timers
6
Input Capture
6
Standalone Output Compare/Standard PWM
6
Quadrature Encoder Interface
2
Temperature Range (C)
-40 to 85

Documents

Jump to:

Application Notes

Download All

User Guides

Development Environment

  • Integrated Development Environments
  • Configurators
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

The SAM-ICE catalog part number (CPN) is now End of Life (EOL) and can no longer be offered.

For MPU and SAM developers, SAM-ICE has been replaced by the J-32 Debug Probe (DV164232)

Alternatively, SAM developers can use either Atmel ICE (

...

Learn More
Configurators
Linux4SAM.org
Linux4SAM (Linux software and tools) ( Linux4SAM.org )

Microchip has created and supports a free-of-charge Linux OS offering for our entire portfolio of microprocessors (MPUs). We are committed to the open-source Linux community and provide full coverage of System-on-Chip (SoC) peripherals in the Linux kernel. We also offer AT91Bootstrap and U-Boot bootloaders.

The Linux4SAM website contains links to

...

Learn More
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

SAM-BA software provides an open set of tools for in-system programming of internal and external memories connected to our 32-MCUs and MPUs. You can program your device through the JTAG, debug UART or USB interfaces. If you use the MPU’s secure boot feature, you should use the Secure SAM-BA edition.

The latest generations of MPUs are supported on SAM-BA v3 available on the

...

Learn More
Software Package
Software Package ( Software Package )

These software packages deliver a set of C drivers that run on the evaluation kits and exercise all peripherals. They are also very useful for board bring up as well as quick prototyping. They consist of drivers, software services and libraries.

Each software module for a Microchip MPU includes full source code, application examples, rich HTML documentation and ready-to-use projects for

...

Learn More
Demo & Evaluation Boards
High-Performance WVGA Display Module with Max-Touch(r)
High-Performance WVGA Display Module with Max-Touch(r) ( AC320005-5 )

The High-Performance WVGA LCD Display Module with maXTouch® Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This board is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation

...

Learn More
Add To Cart
SAMA5D27 SOM1 Evaluation Kit 1
SAMA5D27 SOM1 Evaluation Kit 1 ( ATSAMA5D27-SOM1-EK1 )

The ATSAMA5D27-SOM1-EK1 is a fast prototyping and evaluation platform for the SAMA5D2 based System in Packages (SiPs) and the SAMA5D27-SOM1 (SAMA5D27 System On Module). The kit comprises a baseboard with a soldered ATSAMA5D27-SOM1 module. The module features an ATSAMA5D27C-D1G-CU SIP embedding a 1-Gbit (128 MB) DDR2 DRAM.  The SOM integrates a Power Management IC (PMIC), a QSPI memory, a

...

Learn More
Add To Cart
ATSAMA5D2C-XULT
ATSAMA5D2C-XULT ( ATSAMA5D2C-XULT )

The SAMA5D2 Xplained Ultra is a fast prototyping and evaluation platform for the SAMA5D2 series of microprocessors (MPUs). The board includes eMMC and DDR3 memories as well as a rich set of connectivity options. Connectors and expansion headers allows for easy customization and quick access to leading edge embedded features such as the Class D amplifier or the capacitive touch controller (PTC). A...

Learn More
Add To Cart
Bundle SAMA5D2-PTC-EK + QT1-XPRO
Bundle SAMA5D2-PTC-EK + QT1-XPRO ( DM320108-BNDL )

The DM320108-BNDL bundle consists of the SAMA5D2-PTC-EK development board and ATQT1-XPRO - QT1 Xplained Pro extension kit.

The SAMA5D2-PTC-EK is used to develop and evaluate capacitive touch controls using the

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMA5D27C-LD1G-CUR
0.488000
361
TFBGA
16x16x1.2mm
SAC105
e8
ATSAMA5D27C-LD1G-CU
2.059524
361
TFBGA
16x16x1.2mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
