For New Designs, we highly recommend to consider Revision B for Prototypes and Production.

ARM® Cortex®-M4 processor-based microcontroller (MCU), the SAM4E16C features a floating point unit and a high data bandwidth architecture and is targeted at industrial automation and building control applications.

The device embeds 1MB Flash and features multiple networking/connectivity peripherals, including one 2.0A/B compatible CAN interface and one IEEE Std 1588-compatible 10/100Mbps Ethernet MAC. Additional communication interfaces include a FS USB device, a HS SDCard/SDIO/MMC interface, USARTs, SPIs and multiple TWIs.

Analog features includes dual 1Msps, 16-bit ADCs of up to 10 channels with analog front end offering offset and gain error correction, and a 2-channel, 1Msps, 12-bit DAC.

The SAM4E8E is available in 100-pin BGA and QFP package options.

Microcontroller Features

Core

• ARM Cortex-M4 with 2 Kbytes Cache running at up to 120 MHz

• Memory Protection Unit (MPU)

• DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set

Memories

• 1024 Kbytes Embedded Flash

• 128 Kbytes Embedded SRAM

• 16 Kbytes ROM with Embedded Boot Loader Routines (UART) and IAP Routines

System

• Embedded voltage regulator for single-supply operation

• Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for Safe Operation

• Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock

• RTC with Gregorian and Persian Calendar Mode, Waveform Generation in Backup mode

• RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency inaccuracy

• High-precision 8/16/24 MHz factory-trimmed internal RC oscillator. In-application trimming access for frequency adjustment

• Slow clock internal RC oscillator as permanent low-power mode device clock

• One PLL up to 240 MHz for Device Clock and for USB

• Temperature Sensor

• Low-power tamper detection on two inputs, anti-tampering by immediate clear of general-purpose backup registers (GPBR)

• Up to 2 Peripheral DMA Controllers (PDC) with up to 33 Channels

• One 4-channel DMA Controller

Low Power modes

• Sleep, Wait and Backup modes, down to 0.9 μA in Backup mode with RTC, RTT, and GPBR

Package

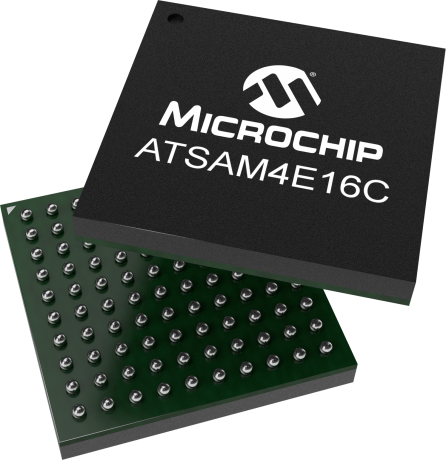

• 100-ball TFBGA, 9x9 mm, pitch 0.8 mm

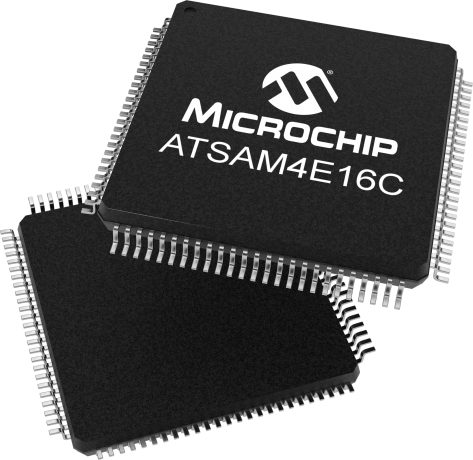

• 100-lead LQFP, 14x14 mm, pitch 0.5 mm

Temperature operating range

• Revision A - Industrial (-40° C to +85° C), Revision B -(-40° C to +105° C)

Peripheral Features

• Two USARTs with USART1 (ISO7816, IrDA®, RS-485, SPI, Manchester and Modem Modes)

• USB 2.0 Device: Full Speed (12 Mbits), 2668 byte FIFO, up to 8 Endpoints. On-chip Transceiver

• Two 2-wire UARTs

• Two 2-wire Interfaces (TWI)

• High-speed Multimedia Card Interface (SDIO/SD Card/MMC)

• One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals

• Three 3-channel 32-bit Timer/Counter blocks with Capture, Waveform, Compare and PWM Mode. Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor.

• 32-bit low-power Real-time Timer (RTT) and low-power Real-time Clock (RTC) with calendar and alarm features

• 256-bit General Purpose Backup Registers (GPBR)

• One Ethernet MAC (GMAC) 10/100 Mbps in MII mode only with dedicated DMA and Support for IEEE1588, Wake-on-LAN

• One CAN Controllers with eight Mailboxes

• 4-channel 16-bit PWM with Complementary Output, Fault Input, 12-bit Dead Time Generator Counter for Motor Control.

• Real-time Event Management

I/O

• Up to 79 I/O Lines with External Interrupt Capability (Edge or Level Sensitivity), Debouncing, Glitch Filtering

• Bidirectional Pad, Analog I/O, Programmable Pull-up/Pull-down

• Five 32-bit Parallel Input/Output Controllers, Peripheral DMA Assisted Parallel Capture Mode

Cryptography

• AES 256-bit Key Algorithm compliant with FIPS Publication 197

Analog Features

• AFE (Analog Front End): 2x16-bit ADC, up to 24-channels, Differential Input Mode, Programmable Gain Stage, Auto Calibration and Automatic Offset Correction

• One 2-channel 12-bit 1 Msps DAC

• One Analog Comparator with Flexible Input Selection, Selectable Input Hysteresis

Debugger Development Support

• Serial Wire/JTAG Debug Port(SWJ-DP)

• Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.

• Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.

• Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.

• Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.

• Instrumentation Trace Macrocell (ITM) for support of printf style debugging.

• IEEE1149.1 JTAG Boundary-scan on all digital pins.

Integrated Software Libraries and Tools

• ASF-Atmel software Framework – SAM software development framework

• Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.

• DMA support, Interrupt handlers Driver support

• USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks

• RTOS integration, FreeRTOS is a core component
