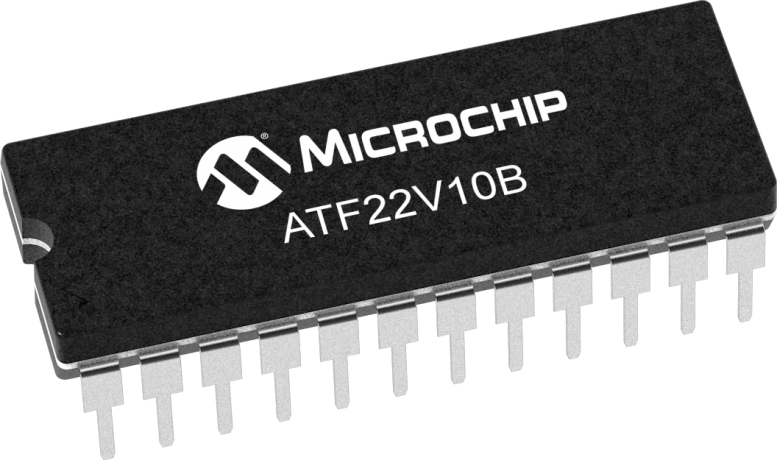

ATF22V10B

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

A high-performance electrically erasable CMOS programmable logic device (PLD) with proven Microchip electrically erasable flash memory. The device supports speeds down to 7.5ns and power dissipation as low as 10TmA. All speed ranges are specified over the full 5V ± 10 percent range for military and industrial applications, and 5V ± 5 percent for commercial applications. Each of several low-power options can significantly reduce total system power and enhance system reliability.

Parametrics
Name
Value
Power Options
STANDARD
Operating Voltage range (V)
4.5 to 5.5
Inputs and I/O Pins
22
Registers
10
Macrocells
10
tPD Min
15
Max Clock Freq
83
Temp# Range (deg C)
-55 to 125

Documents

Jump to:

Data Sheet

Quality-Reliability-ISOs

Getting Started


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATF22V10B-10GM/883
3.840000
0.000000
24
CERDIP
.300In
SnPb
e0
ATF22V10B-15GM/883
3.840000
0.000000
24
CERDIP
.300In
SnPb
e0
ATF22V10B-10NM/883
0.096000
0.000000
28
CLCC
11.4x11.5x2.54mm
SnPb
e0
ATF22V10B-15NM/883
0.096000
0.000000
28
CLCC
11.4x11.5x2.54mm
SnPb
e0
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
