AT91SAM7X512

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

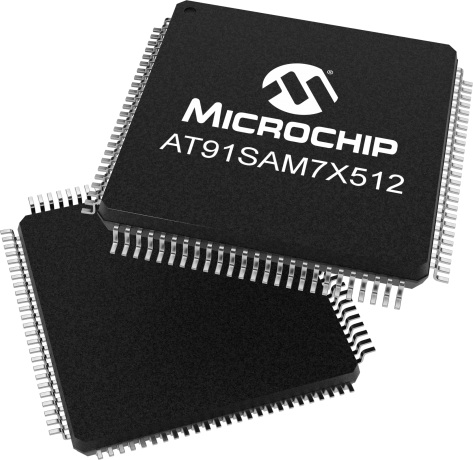

The Microchip's ARM-based SAM7X512 is a member of the Microchip SAM7X series of microcontrollers based on the 32-bit ARM7TDMI processor. It operates at a maximum speed of 55 MHz and features 512KB of flash and 128KB of SRAM. The 512KB of flash are split in two banks of 256KB. The peripheral set includes a USB 2.0 Full Speed device port , Ethernet MAC 10/100 port, CAN 2.0A and 2.0B compliant controller, two USART, UART, two SPI, SSC, TWI (I2C), three 16-bit timers, RTT and 8x10-bit ADC. Typical core supply is 1.8V, I/Os are supplied at 1.8V or 3.3V and are 5V tolerant. An integrated voltage regulator allows single supply at 3.3V. The SAM7X512 is supplied in 100-lead LQFP and TFBGA packages.

Parametrics
Name
Value
Part Family
ARM7TDMI
Max CPU Speed MHz
55
Program Memory Size (KB)
512
SRAM (KB)
128
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
3 to 3.6
Direct Memory Access Channels
13
SPI
2
I2C
1
Peripheral Pin Select / Pin Muxing
Yes
Ethernet
10/100 Base-TX Mac
Number of USB Modules
1
USB Interface
FS Device
Number of CAN modules
1
ADC Input
8
Max ADC Resolution (Bits)
10
Max ADC Sampling Rate (ksps)
384
Input Capture
3
Max 16-bit Digital Timers
3
Internal Oscillator
32Khz
Max I/O Pins
62
Pincount
100
