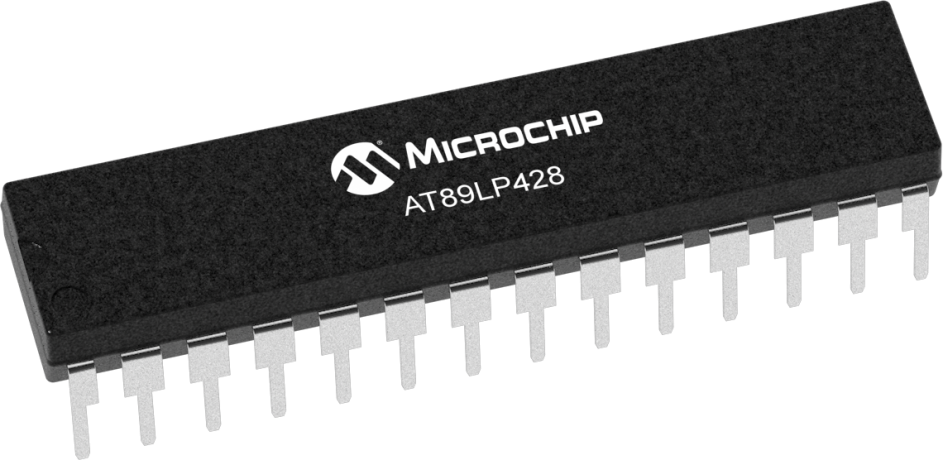

AT89LP428

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Single cycle microcontroller with 4KB ISP flash, 512 bytes flash data memory, 768 bytes of RAM, PWM, UART, SPI, up to 30 I/Os, an analog comparator, an internal RC oscillator, and on-chip debug.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
4
CPU Speed (MIPS/DMIPS)
25
Data EEPROM/HEF (bytes)
512
Digital Communication Peripherals
1-UART, 1-SPI,
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
2.4 to 5.5
Pin Count
32

Documents

Jump to:

Data Sheet

Application Notes

Download All

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
maXTouch Xplained Pro
maXTouch Xplained Pro ( ATMXT-XPRO )
(Not Recommended for new design)

maXTouch Xplained Pro is an extension board in the Xplained Pro evaluation platform. The board enables the user to experiment with user interface applications with maXTouch and LCD.
Xplained Pro evaluation kits that can communicate with maXTouch Xplained Pro can be purchased individually.

For compatible Xplained Pro Evaluation kits see the Related Tools tab.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89LP428-20JU
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
AT89LP428-20AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
AT89LP428-20PU
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
