Compact CAN System Basis Chips (SBCs) for Highly Space-Constrained CAN FD Nodes
Applications
Automotive
|
Industrial
|
Key Features
- Highly integrated, compact SBCs
- Reduction in Bill of Materials (BoM) cost and in the risk of EMC
- Single chip ensures there are fewer devices to procure
- Lower system power consumption with optional low-power consumption
- Microcontroller (MCU) supply voltage can be disabled by switching off LDOs during sleep mode
Explore SBC Products

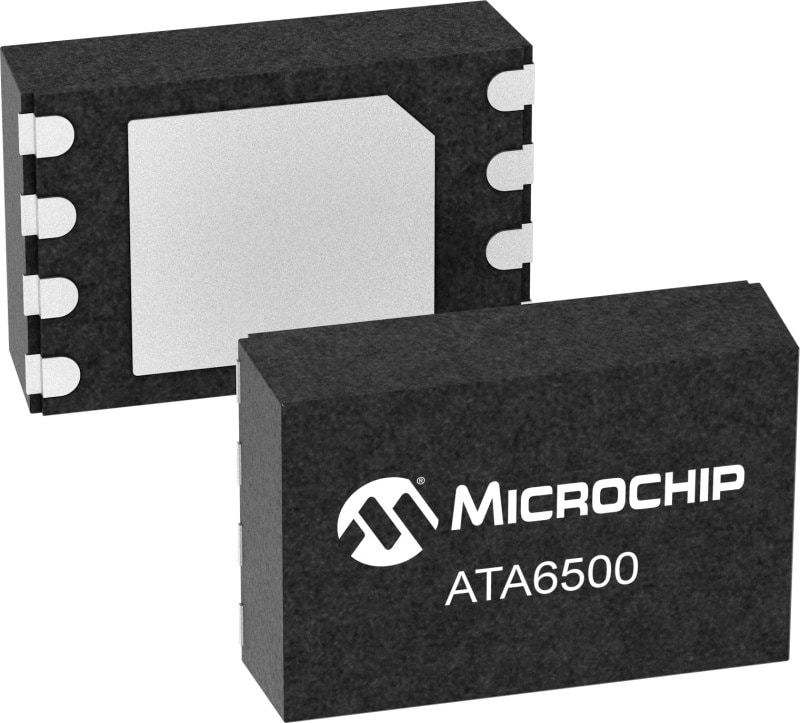

ATA6500
- CAN FD transceiver
- 5V LDO
- VIO (1.8V/5V)
ATA6501
- CAN FD transceiver
- 5V LDO
- VIO (3.3V/5V)

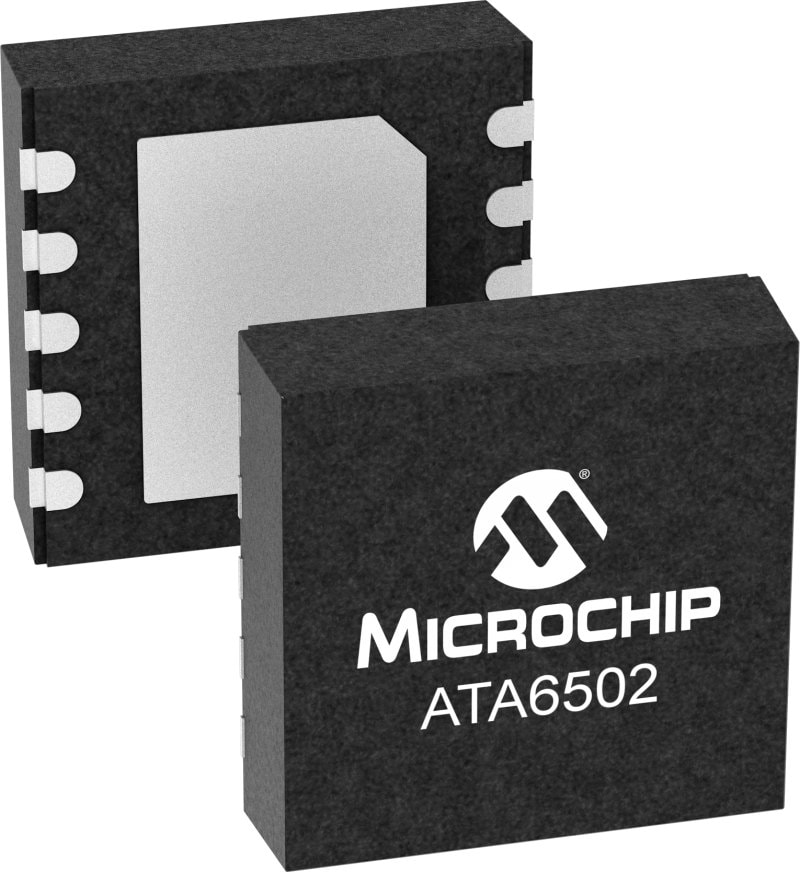

ATA6502
- CAN FD transceiver
- 5V LDO
- NRES and wake-up input
- VIO (1.8V/5V)
ATA6503
- CAN FD transceiver
- 5V LDO
- NRES and wake-up input
- VIO (3.3V/5V)

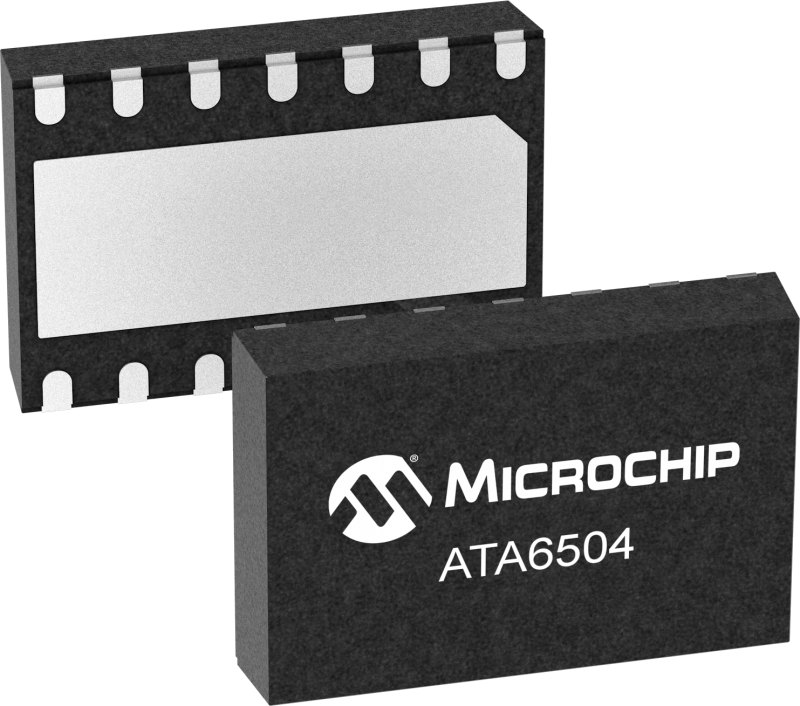

ATA6504
- CAN FD transceiver
- 5V LDO
- NRES, INH and wake-up input
- VIO (1.8V/5V)

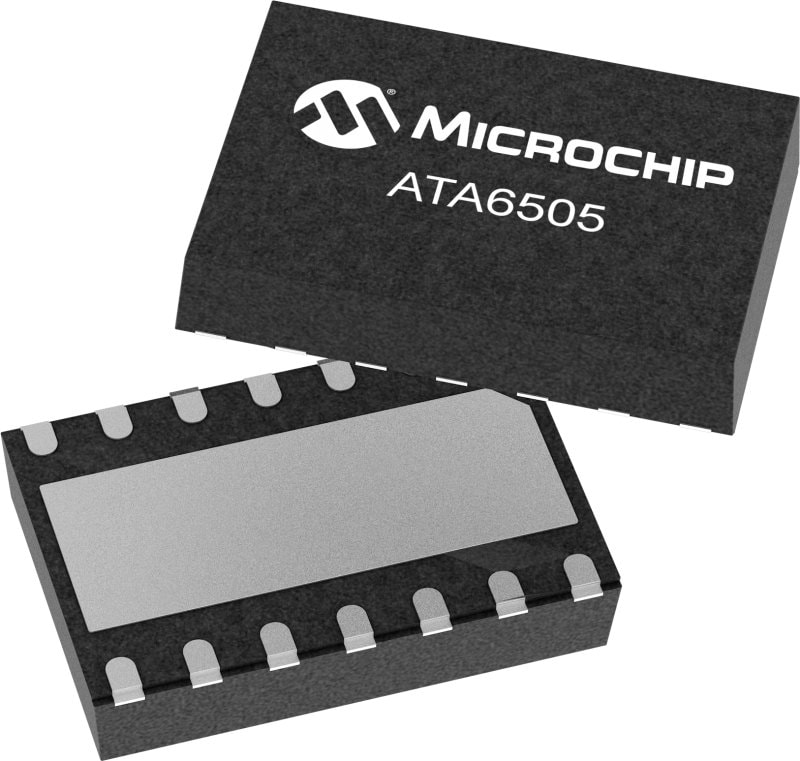

ATA6505
- CAN FD Transceiver
- 5V LDO
- NRES, INH and wake-up input
- VIO (3.3V/5V)
