Part Number: EVB-LAN9252-HBIPLUS

LAN9252 - ETHERCAT SLAVE CONTROLLER EVALUATION KIT WITH HBI PDI INTERFACE

User Guide: PDF
EVB-LAN9252-HBI+ EtherCAT User's Guide
View Purchasing Options
Contact Us

Overview

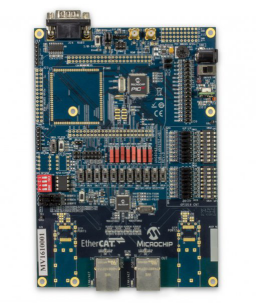

EVB-LAN9252-HBIPLUS  is a progression from the original EVB-LAN9252-HBI board which allows evaluation of the LAN9252 device with an attached microcontroller.
Peripherals are provided which together with a supporting software development kit enable full usage of the platform.  A PIC32MX795 device is populated on the board with provision for other controllers via the Microchip PIM header, or a generic 0.1" header array.

Applications

  • HVAC
  • Industrial Control
  • Power supply monitoring
  • Serial terminal bridges (TTL/RS232/RS485)
  • AIDC Readers
  • LAN9252 EtherCAT Slave Controller
  • Two network connections to RJ45 / 8P8C connectors
  • PIC32 Microcontroller via HBI or SPI
  • Supported within version 1.3 and newer of the LAN9252 SDK, available via the LAN9252 product page

Peripherals:

  • UART via DE9 connector
  • Potentiometer
  • Temperature sensor - TC1047A
  • DAC & ADC
  • Digital IO

Distributed Clocks:

  • Sync0 & Sync1 available via SMA connectors

Please obtain the current software development kit (SDK) from the LAN9252 product page

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
EVB-LAN9252 HBIPLUS Gerber Board Design Files Download
EVB-LAN9252 HBIPLUS Schematics Rev D Board Design Files Download
EVB-LAN9252 HBIPLUS BOM Rev D Board Design Files Download
EVB-LAN9252-HBI+ Quick Start Guide Supporting Collateral Download
EVB-LAN9252-HBI+ EtherCAT User's Guide User Guide Download
AN1916- Integrating Microchip's LAN9252 SDK with Beckhoff's EtherCAT SSC Application Notes Link Download
board-support-package-for-evb-lan9252-hbiplus Software Library Web Link
