Overview
This Dual-Inline-Module (DIM) features a SAME70 144-pin TQFP ARM Cortex M7 microcontroller. It can be used to evaluate the entire family of SAM E/S and V series devices for motor control applications. As this MCU does not have integrated OpAmps it features support using the Motor Control System (MCS) inverter board-based op amps for motor current feedback. This DIM is not compatible with the older MCLV-2 [DM330021-2] or MCHV [DM330023-2 or DM330023-3] PIM based inverter boards.
- 120 pin connector supports higher-pin count packages
- DIM has reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the SAM E/S/V 32-Bit MCU family
- Supports board mounted op amps for motor current feedback

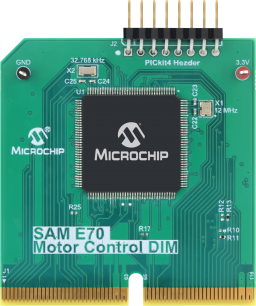

SAM E70 Motor Control Dual Inline Module (DIM)
