Overview

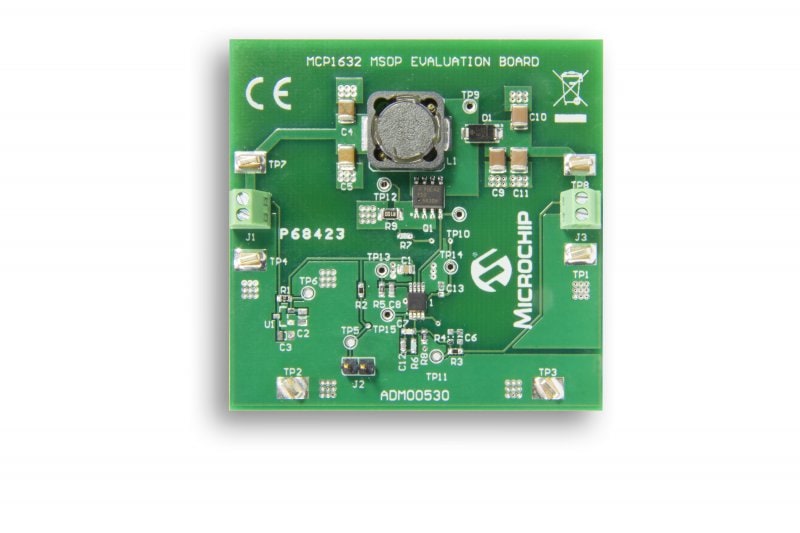

The MCP1632 300 kHz Boost Converter Demo Board is a compact, highly efficient, step-up voltage converter that will convert the input voltage rail (typically 5V) to a regulated 12V output voltage. The maximum output current for this demo board is 0.9A. The board demonstrates the capabilities of the MCP1632 PWM controller. Test points for various signals are provided for measuring different parameters of the converter. The Demo Board can be modified to support output voltages from 9V to 15V by changing a single resistor.
• Input Voltage Range: 3.6V to 5.5V
• Output Voltage: 12V (can be adjusted between 9V and 15V by changing a single resistor)
• Maximum Output Current: 0.9A
• 90% typical efficiency at 12V/0.8A output and 5V input
• 300 kHz fixed switching frequency
• Overcurrent Protection for MOSFETs
• Shutdown input for placing the converter in low-power Standby mode
• Under voltage Lockout (UVLO) with 2.7V and 2.8V typical thresholds
• Output Voltage: 12V (can be adjusted between 9V and 15V by changing a single resistor)
• Maximum Output Current: 0.9A
• 90% typical efficiency at 12V/0.8A output and 5V input
• 300 kHz fixed switching frequency
• Overcurrent Protection for MOSFETs
• Shutdown input for placing the converter in low-power Standby mode
• Under voltage Lockout (UVLO) with 2.7V and 2.8V typical thresholds
• 1x MCP1632 300 kHz Boost Converter Demo Board (ADM00530)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP1632 300 kHz Boost Converter Demo Board (ADM00530) BOM | Board Design Files | Download | ||
| MCP1632 300 kHz Boost Converter Demo Board (ADM00530) Gerbers | Board Design Files | Download | ||
| MCP1632 300 kHz Boost Converter Demo Board (ADM00530) Schematics | Board Design Files | Download | ||
| MCP1632 Design Analyzer v1.0 | Software Libraries and Firmware | Download | ||
| MCP1632 300kHz Evaluation Board User's Guide | User Guide | Download | ||
| MCP1632 Data Sheet | Data Sheets | Download |
