Part Number: MCP1650DM-LED2

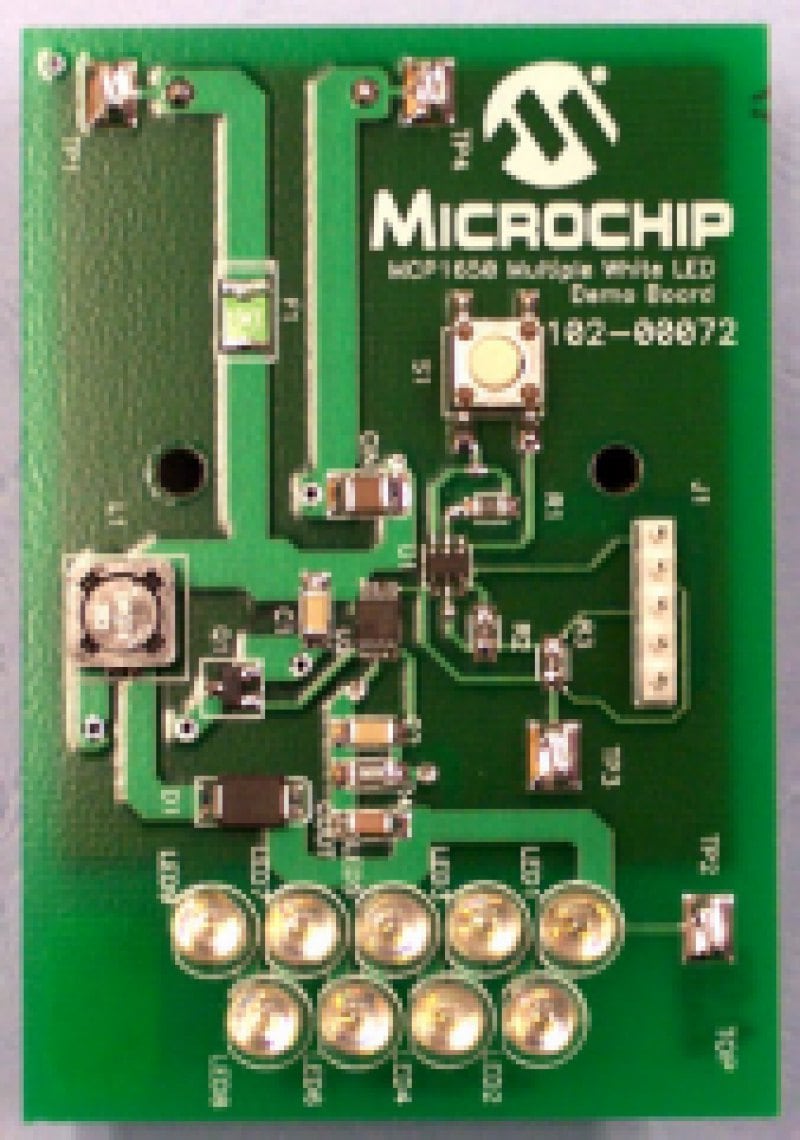

MCP1650 MULTIPLE WHITE LED DEMO BOARD
- Programmed MCP1650 White LED intensity control via the PIC10F202
- Nine white LEDs connected in series
- PIC10F202 is used to generate the PWM signal which controls the intensity of the LEDs
- Push button selection for three levels of intensity control
- Includes three AA battery holder (batteries not included)
Overview
***This product is now obsolete***
The recommended alternate board is the ADM00530.
The MCP1650 Multiple White LED Demo Board uses the MCP1650 IC to power the nine white LEDs which are connected in series. A PIC10F202 microcontroller in a SOT-23 6 pin package is used to provide the PWM signal to the MCP1650. It also accepts a push button input that allows the user to adjust the white LEDs to three different intensities of 100%, 50% and 25%.
The PIC10F202 microcontroller is programmable, allowing the user to modify or develop their own firmware routines to further evaluate the MCP1650 in this application.
Package Contents
N/A
