Overview

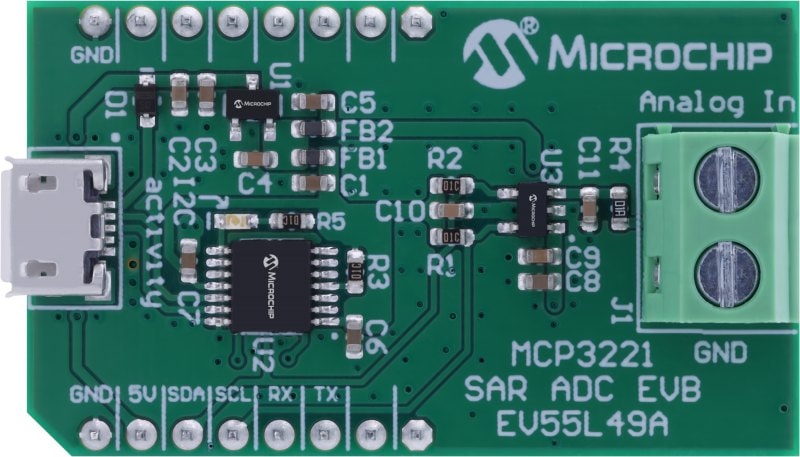

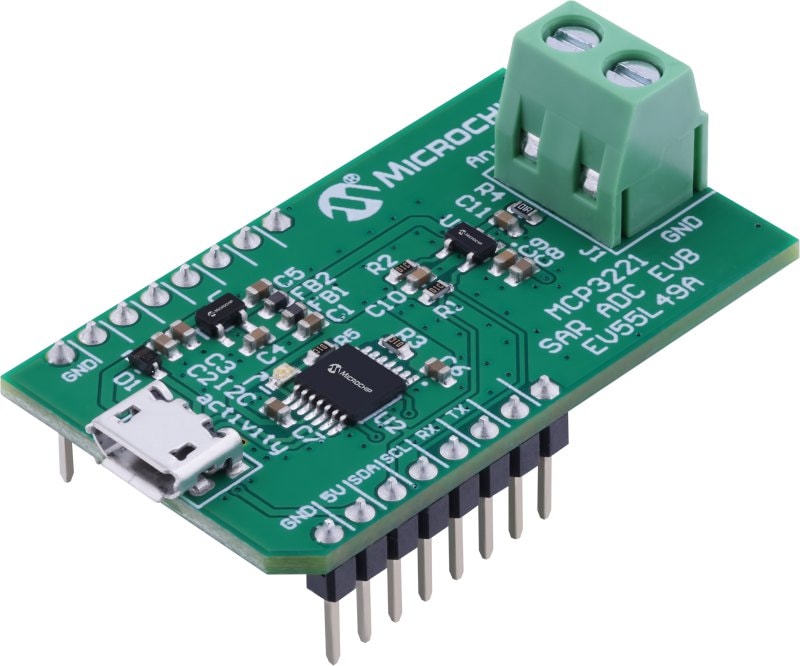

The EV55L49A MCP3221 Evaluation Board provides the opportunity to evaluate the performance of Microchip’s MCP3221 ADC, a 12-Bit, 22kSPS, Single Channel ADC using a MCP2221A USB to I2C bridge for communicating with the PC GUI. There is also a mikroBUS™ option for direct communication with other MCU platforms.
EV55L49A comes with a new GUI that allows customers to collect data in continuous time domain necessary for applcaitions that require contiounous data collection such as ECG/EKG.
- Hardware Features
- Clickboard format for easy connection to a microcontroller or breadboard
- terminal block connector for analog voltage
- I2C activity led
- MCP2221A I2C to USB bridge for PC GUI connection and UART to USB for communication with a microcontroller on a Curiosity board
- GUI Features
- Python GUI
- UART communication with Curiosity
- I2C communication with MCP2221A USB Bridge
- FW Features
- Arduino code example
- PIC32 code example
- Python code example
- Support Documentation
- User Guide
- Test scenario example in the User Guide
- Script example for MCP2221 I2C/SMBus Terminal
- EV55L49A MCP3221 SAR-ADC EVB
- Micro USB cable
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EV55L49A BOM | BOM | Download | ||
| EV55L49A Schematics | Schematics | Download | ||
| EV55L49A Gerbers | Gerbers | Download | ||
| EV55L49A Design Files | Other Board Design Files | Download | ||
| EV55L49A 3D PDF | Other Board Design Files | Download | ||
| EV55L49A Firmware PIC32MX Curiosity | Software Libraries and Firmware | Download | ||
| EV55L49A MCP3221 - Arduino Due Firmware | Software Libraries and Firmware | Download | ||
| Hi-Resolution ADC Utility (v1.7.1) | Software Libraries and Firmware | Download | ||
| MCP3221 SAR ADC Click Evaluation Board User Guide | User Guide | Download |
