MEC1418

In Production

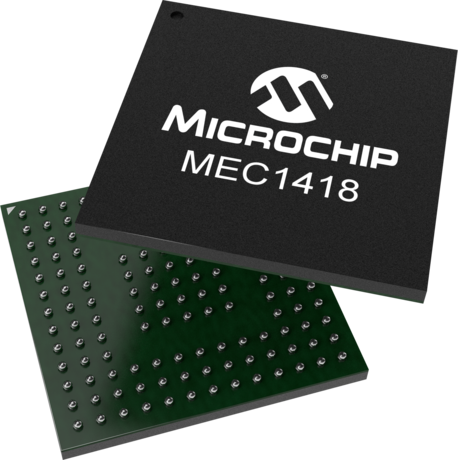

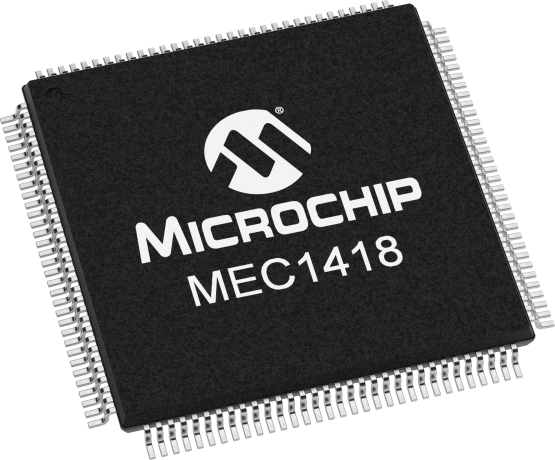

The MEC1418 is a keyboard and embedded controller customized for notebooks and tablet platforms. The MEC140X/1X family is a highly-configurable, mixed signal, advanced I/O controller architecture. MEC1418 incorporates a 32-bit MIPS32 M14K Microcontroller core with 192 KB of closely-coupled SRAM for code and data that loads from SPI Flash. Designers can leverage the host SPI-flash (used for BIOS storage) for non-volatile EC firmware storage, as a cost-effective system solution.

Microchip’s MEC14XX family also provides a flexible arrangement that allows multiple I/O signals to be configured to support either 3.3V or 1.8V, reducing the system bill-of-materials cost by eliminating the need for external voltage translators. The MEC1418 communicates with the system host through the Intel Enhanced Serial Peripheral Interface (eSPI) or through Intel's Low Pin Count (LPC).

All members of the MEC14XX family are pin and register compatible and are supported by Microchip’s development tools. Examples include the MPLAB® XC Compilers, the MPLAB REAL ICE In-Circuit Emulator (part # DV244005), the MPLAB ICD 3 In-Circuit Debugger (part # DV164035) and the PICkit 3 Starter Kit (part # DV164130).



    Features

        • 3.3 V
        • MIPS32® M14K™ MIcrocontroller Core
        • Enhanced Serial Peripheral Interface (eSPI) or LPC Host Interface
        • ACPI 3.0 Compliant
        • PC2001 Compliant
        • VTR (standby) and VBAT (Power Planes)
        • Connected Standby Support
        • 8042 Emulated Keyboard Controller
        • Secure Boot ROM Loader
        • System to EC Message Interface
        • Trace FIFO Debug Port (TFDP)
        • 32-bit RTOS Timer
    Parameter Name
    Value
    Keyboard Scan Matrix
    18x8
    UART
    Full
    Customer Programmable RAM
    Yes
    Host Interface
    eSPI, LPC, I2C
    Code Storage
    192 KB SRAM (Code + Data)
    Operating Temperature
    0° C to +70° C
    Fan Tachometer Inputs
    2
    8024 Keyboard Controller
    Yes
    Data RAM
    32kB
    Breathing/ Blinking LED
    3
    GPIO
    106
    Package
    128 VTQFP
    LED
    3
    Analog to Digital Converter
    8
    BC Link
    2
    AMD SB-TSI
    1
    ACPI Interfaces
    5
    Counter/Timers
    4
    Documentation
    Data Sheets
    10/20/2016
    5699KB
      Application Notes



    AppNote
    09/15/2017
    924KB
    AppNote
    05/21/2015
    250KB
    AppNote
    07/12/2017
    301KB
      Software Library




    Software Library
    03/23/2017
      Product Document




    Product Document
    08/10/2017
    904KB
      Silicon Product



    Silicon Product
    06/18/2015
    0B
    Silicon Product
    06/18/2015
    0B
    Silicon Product
    06/18/2015
    0B
      User Guides




    User Guides
    11/23/2016
    2483KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MEC1418-I/NU
    128
    TQFP
    -40C to +85C
    TRAY
    3.44
    2.86
    2.60
    2.41
    2.28

    MEC1418-I/SZ
    144
    WFBGA
    -40C to +85C
    TRAY
    4.95
    4.13
    3.75
    3.47
    3.29

    MEC1418-NU
    128
    TQFP
    0C to +70C
    TRAY
    3.25
    2.71
    2.46
    2.28
    2.16
    MEC1418-SZ
    144
    WFBGA
    0C to +70C
    TRAY
    3.96
    3.30
    3.00
    2.77
    2.63


    ** Device not available to purchase online. Please contact a sales office for pricing information.
