Microchip Technology Inc

AT27LV010A

In Production

The Microchip AT27LV010A is a high-performance, low-power, low-voltage 1-megabit One Time Programmable EPROM organized as 128-Kbit x 8. Requiring a single power supply in the range of 3.0V to 3.6V in normal read mode operation any byte can be accessed in less than 70 ns. With typical power consumption of only 18 mW at 5 MHz and VCC = 3.3V, the AT27LV010A consumes less than one-fifth the power of a standard, 5V EPROM. Standby mode supply current is typically less than 1 μA at 3.3V making it ideal for fast, portable systems using battery power.



    Features

        • 1-Mbit (128-Kbit x 8)

        • Dual voltage range operation

          • Low voltage, 3.0V to 3.6V, or
          • Standard power supply range, 5V +/-10%
        • Low-power CMOS operation
          • 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
          • 29 mW max active at 5 MHz for VCC = 3.6V
        • Parallel Interface
          • 70 ns access time
        • High-reliability CMOS technology
          • 2,000V ESD protection
          • 200 mA latchup immunity
        • Rapid programming algorithm – 100 μs/byte (typical)
        • CMOS and TTL compatible inputs and outputs
          • JEDEC standard for LVTTL
        • Integrated product identification code
        • Industrial Temperature Range: -40°C to 85°C
        • Available in Green (Pb/Halide-free) Packaging Only

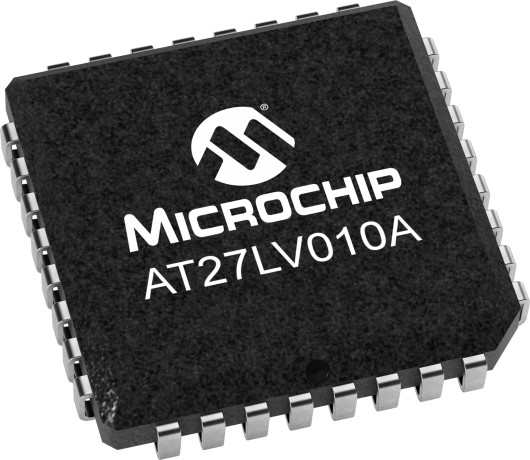

        32-lead, Plastic J-leaded Chip Carrier (PLCC)

    Parameter Name
    Value
    Density
    1Mb
    Read Access Time
    70 ns
    Temp Range (°C)
    -40°C to +85°C
    Documentation
    Data Sheets
    04/01/2011
    779KB
      Application Notes




    AppNote
    04/01/2013
    79KB
      Brochures



    Brochures
    12/01/2012
    478KB
    Brochures
    12/13/2011
    18KB
    Brochures
    12/10/2016
    4660KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT27LV010A-70JU
    32
    PLCC
    -40C to +85C
    TUBE
    2.14
    2.06
    1.98
    1.88
    1.77

    AT27LV010A-70JU-T
    32
    PLCC
    -40C to +85C
    T/R
    2.18
    2.10
    2.02
    1.91
    1.80


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Similar Devices
    Product
    Memory Size
    Memory Speed
    Package
    Price5K


    PLCC-32
    $1.97


    PLCC-44
    $2.08


    PDIP-32, PLCC-32
    $1.46


    PDIP-40, PLCC-44
    $1.86


    PLCC-32
    $1.66
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    AT27LV010A-70JU
    1.129000
    2.333333
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT27LV010A-70JU-T
    1.129000
    1.896000
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
