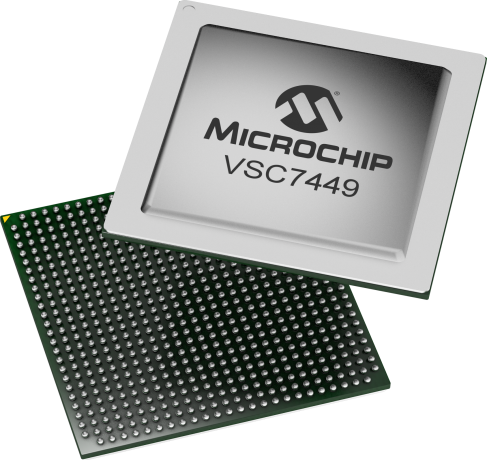

VSC7449

52 Port 90G L2/L3 Switch

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The VSC7449-01 SparX-IV-90™ device is a 90 Gbps SMB/SME Industrial Ethernet switch with up to 52 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports.
The device provides a rich set of Enterprise Ethernet switching features. Using multistage Versatile Content Aware Processing (VCAP™), it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing, and egress frame manipulation.
For industrial applications, VSC7449-01 integrates VeriTime™, patent-pending timing technology that delivers the industry’s most accurate IEEE 1588v2 timing implementation.
A powerful 500 MHz CPU enables full management of a Layer 2 and Layer 3 Ethernet switch solution.
A comprehensive application programming interface (API) and software development package accelerates time-to-market for managed Ethernet applications. The software API package integrates easily with third-party software, preserving existing software investments.



Supported Ethernet Software Options

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • GE PHYs
    • 10GE PHYs
    • Ethernet Software
    • Up to 48 x 1G, 24 x 2.5G, and 4 x 10G Ethernet ports
    • Fully managed L2 switching and L3 forwarding features
    • Industrial temperature range
    • Easy upgrade within SparX-IV family to higher bandwidth including 10 GbE port support
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps 10Gbps
MAC
52
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII, QSGMII XFI, XAUI, RXAUI
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
110
Automotive
No
Fiber Support
100FX, 1000X, SFI
Vdd I/O (V)
1.0/1.2/2.5/3.3
On-Chip Termination
Yes
