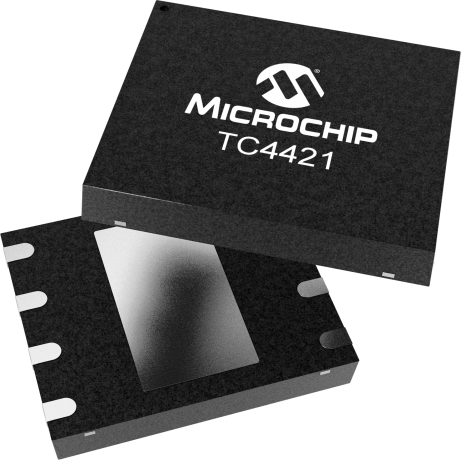

product primary image

TC4421

9A Inverting High-Speed MOSFET Driver

Status: In Production

Features:

  • Tough CMOS ™ Construction
  • High Peak Output Current: 9A
  • High Continuous Output Current: 2A Max
  • 30nsec with 4,700pF Load
  • 180nsec with 47,000pF Load
  • Short Internal Delays: 30nsec Typ.
  • Low Output Impedance: 1.4Ω Typ.
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation. They cannot be latched under any conditions within their power and voltage ratings; they are not subject to damage or improper operation when up to 5V of ground bounce is present on their ground terminals; they can accept, without either damage or logic upset, more than 1A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4kV of electrostatic discharge. The TC4421/4422 inputs may be driven directly from either TTL or CMOS (3V to 18V). In addition, 300mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.

For product comparison, please consider: TC4421A

Additional Features
    • Tough CMOS ™ Construction
    • High Peak Output Current: 9A
    • High Continuous Output Current: 2A Max
    • Fast Rise and Fall Times:
      • 30nsec with 4,700pF Load
      • 180nsec with 47,000pF Load
    • Short Internal Delays: 30nsec Typ.
    • Low Output Impedance: 1.4Ω Typ.
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Inverting
Peak Output Current (source/sink, A)
9.0/9.0
Output Resistance (source/sink, Ω)
2.4/1.7
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
50/53
Rise/Fall Time (Tr/Tf, ns)
28/26
Capacitive Load Drive
4700 pF in 15 ns

Documents

Jump to:

Data Sheets

Software Library

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart
Software Libraries
Analog Simulation - TC4421

The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC4421ESM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
TC4421ESM713
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
TC4421ESMG
0.124400
0.277778
8
SOIJ
.208in
Matte Tin
e3
TC4421AVOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421AVOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421AVOA713-VAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC4421MJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC4421CPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4421EPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4421VPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4421AVPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC4421CAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4421EAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4421VAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4421AVAT
1.983900
3.120000
5
TO-220
-
Matte Tin
e3
TC4421EMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421EMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421VMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421VMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421AVMF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
TC4421AVMF713
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
