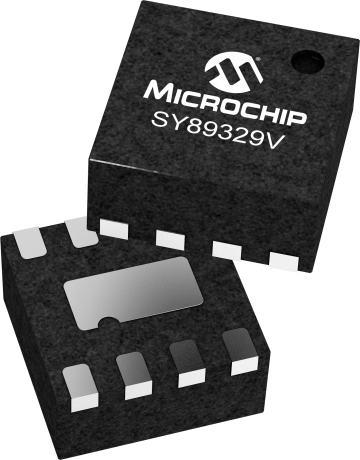

product primary image

SY89329V

Status: In Production

Features:

  • DC-to-800MHz fMAX
  • <100ps IN-to-OUT tpd
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • <1psRMS cycle-to-cycle jitter
  • <1psPP total jitter (clock)
  • Differential LVPECL output
  • ICC max. 20mA
  • Q output will default HIGH with inputs open
  • Power supply 3.3V ±10% or 5.0V ±10%
  • -40°C to +85°C temperature range
  • Available in ultra-small 8-pin (2mm x 2mm) MLF™ package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89329V is a TTL/CMOS-to-differential PECL translator. Capable of running from a 3.3V or 5V supply, the part can be used in either LVTTL/LVCMOS/LVPECL or TTL/CMOS/PECL systems.The device requires only a single positive supply of 3.3V or 5V; no negative supply is required.The ultra-small 8-pin MLF™ package of the SY89329V makes it ideal for applications where space, performance, and low power are at a premium. For applications that require a dual translator in this same ultra-small MLF™ package, consider the SY89322V.

Additional Features
    • Guaranteed AC performance over temp and voltage:
      • DC-to-800MHz fMAX
      • <100ps IN-to-OUT tpd
    • Ultra-low jitter design:
      • <1psRMS random jitter
      • <10psPP deterministic jitter
      • <1psRMS cycle-to-cycle jitter
      • <1psPP total jitter (clock)
    • Differential LVPECL output
    • ICC max. 20mA
    • Q output will default HIGH with inputs open
    • Power supply 3.3V ±10% or 5.0V ±10%
    • -40°C to +85°C temperature range
    • Available in ultra-small 8-pin (2mm x 2mm) MLF™ package
Parametrics
Name
Value
Product Type
Logic Translators
Input
LVTTL
Output
LVPECL
Supply Voltage
3.3/8
Max Freq (GHz)
0.8
Max Prop Delay (ps)
600
Icc (mA)
20
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVPECL
Output Voltage
3.3/7

Documents

Jump to:

Data Sheets

11/11/2015
47KB

User Guides

11/11/2015
256KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89329VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
