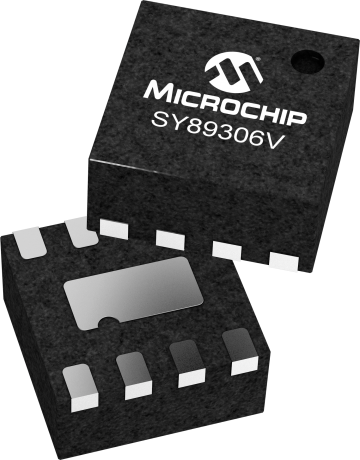

product primary image

SY89306V

Status: In Production

Features:

  • fMAX >2.5GHz
  • Inputs (D, /D) include 75kΩ pull-down resistors
  • SY89306V: 100k EP compatible
  • SY89316V: 10k EP compatible
  • Industrial temperature range: -40°C to +85°C
  • Available in an ultra-small 8-pin (2mm x 2mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89306V and SY89316V are a high-speed buffer/ receivers. The devices are functionally equivalent to the 10/100EP16 buffers, but feature a 70% smaller footprint.The SY89306/316V includes a VBB reference for singleended AC-coupling applications. Whenever used, the VBB pin should be bypassed to ground via a 0.01µF capacitor. VBB reference can only sink/source 0.5mA. Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.

Additional Features
    • fMAX >2.5GHz
    • Inputs (D, /D) include 75kΩ pull-down resistors
    • SY89306V: 100k EP compatible
    • SY89316V: 10k EP compatible
    • Industrial temperature range: -40°C to +85°C
    • Available in an ultra-small 8-pin (2mm x 2mm) MLF® package
Parametrics
Name
Value
Product Type
Receiver
Description
2x2 version of SY100EP16
Input
ECL/PECL
Output
ECL/PECL
Supply Voltage
3.3/5
Max Data (Gbps)
2.5
Max Prop Delay (ps)
300
Icc (mA)
48
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
ECL/PECL

Documents

Jump to:

Data Sheet

11/16/2016
80KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89306VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
