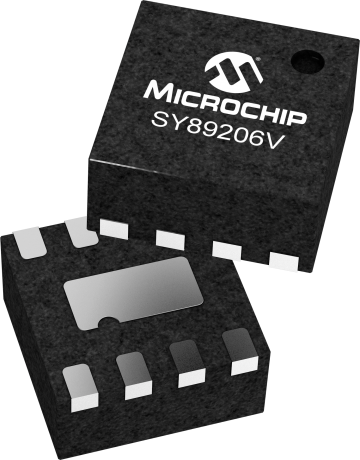

SY89206V

Status: In Production

Features:

  • fMAX >1.0GHz
  • 3.3V and 5V power supply options
  • 250ps propagation delay
  • High bandwidth output transitions
  • Internal 75kΩ input pull-down resistors
  • SY89206V: 100k PECL/ECL compatible
  • SY89216V: 10k PECL/ECL compatible
  • Industrial temperature range: -40°C to +85°C
  • Available in an ultra-small 8-pin (2mm x 2mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89206V and SY89216V are differential PECL/ ECL receiver/buffers in a space-saving (2mm x 2mm) MLF®package. The devices are functionally equivalent to the SY10/100EL16V, but feature a 70% smaller footprint.The SY89206/216V provide a VBB output for either single-ended use or as a DC bias for AC-coupling to the device. The VBB pin should be used only as a bias for the SY89206/16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed with a 0.01µF capacitor to VCC. Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.

Additional Features
    • fMAX >1.0GHz
    • 3.3V and 5V power supply options
    • 250ps propagation delay
    • High bandwidth output transitions
    • Internal 75kΩ input pull-down resistors
    • SY89206V: 100k PECL/ECL compatible
    • SY89216V: 10k PECL/ECL compatible
    • Industrial temperature range: -40°C to +85°C
    • Available in an ultra-small 8-pin (2mm x 2mm) MLF® package
Parametrics
Name
Value
Product Type
Receiver
Description
2x2 version of SY100EL16
Input
ECL/PECL
Output
ECL/PECL
Supply Voltage
3.3/5
Max Data (Gbps)
1
Max Prop Delay (ps)
425
Icc (mA)
26
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
ECL/PECL

Documents

Jump to:

Data Sheet

06/11/2019
895KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89206VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
