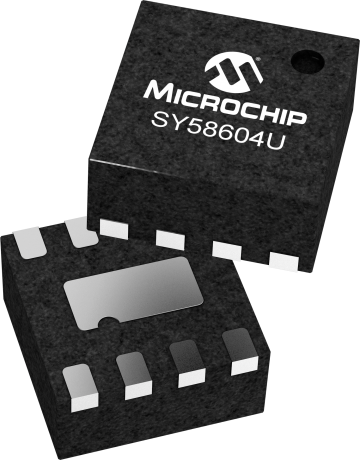

SY58604U

Status: In Production

Features:

  • Precision 800mV LVPECL buffer
  • DC-to >3.2Gbps throughput
  • <350ps typical propagation delay (IN-to-Q)
  • <110ps rise/fall times
  • Prevents output from oscillating when input is invalid
  • Ultra-low jitter design
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • High-speed LVPECL output
  • 2.5V ±5% or 3.3V ±10% power supply operation
  • Industrial temperature range: -40°C to +85°C
  • Available in 8-pin (2mm x 2mm) DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY58604U is a 2.5/3.3V, high-speed, fully differential LVPECL buffer optimized to provide less than 10pspptotal jitter. The SY58604U can process clock signals as fast as 2.5GHz or data patterns up to 3.2Gbps.The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated voltage reference (VREF-AC) is provided to bias the VT pin. The output is 800mV LVPECL, with extremely fast rise/fall times guaranteed to be less than 110ps.The SY58604U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require CML or LVDS outputs, consider the SY58603U and the SY58605U, buffers with 400mV and 325mV output swings respectively. The SY58604U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Precision 800mV LVPECL buffer
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >3.2Gbps throughput
      • <350ps typical propagation delay (IN-to-Q)
      • <110ps rise/fall times
    • Fail Safe Input
      • Prevents output from oscillating when input is invalid
    • Ultra-low jitter design
      • <1psRMS cycle-to-cycle jitter
      • <10psPP total jitter
      • <1psRMS random jitter
      • <10psPP deterministic jitter
    • High-speed LVPECL output
    • 2.5V ±5% or 3.3V ±10% power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 8-pin (2mm x 2mm) DFN package
Parametrics
Name
Value
Product Type
Buffer
Description
Line/Driver Receiver
Input
ANY
Output
LVPECL
Supply Voltage
2.5/3.3V
Max Freq (GHz)
3.2
Max Data (Gbps)
2.5
Max Prop Delay (ps)
450
Icc (mA)
45
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVPECL

Documents

Jump to:

Data Sheet

04/20/2018
772KB
