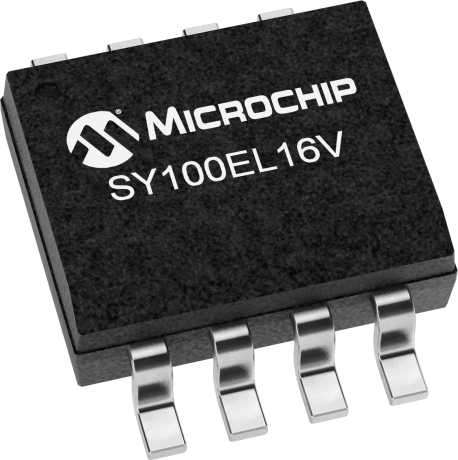

product primary image

SY100EL16V

5V/3.3V ECL Differential Receive

Status: In Production

Features:

  • 3.3V and 5V power supply options
  • 250ps propagation delay
  • High bandwidth output transitions
  • Internal 75KΩ input pull-down resistors
  • Available in 8-pin (3mm x 3mm) MSOP and SOIC package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY100EL16V is a differential receiver. With fast output transition times, the SY100EL16V is ideally suited for interfacing with high-frequency sources.
The SY100EL16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the SY100EL16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01μF capacitor.
Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.

Additional Features
    • 3.3V and 5V power supply options
    • 250ps propagation delay
    • High bandwidth output transitions
    • Internal 75KΩ input pull-down resistors
    • Replaces SY10/100EL16
    • Improved output waveform characteristics
    • Available in 8-pin (3mm x 3mm) MSOP and SOIC package
Parametrics
Name
Value
Product Type
Drivers and Receivers
Input
ECL/PECL
Output
ECL/PECL
Supply Voltage
3.3/5V
Max Prop Delay (ps)
425
Icc (mA)
26
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
single
