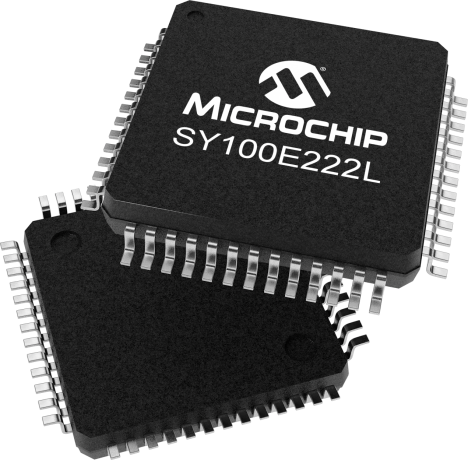

product primary image

SY100E222L

Status: In Production

Features:

  • Four programmable output banks and 15 total LVPECL-compatible differential outputs
  • Pin-compatible, plug-in replacement to MC100LVE222FA
  • fMAX clock = 1.5GHz
  • 50ps output-to-output skew
  • Four output banks with independent ÷1, ÷2 frequency control
  • 100k compatible I/O
  • Power supply 3.3V ±10%
  • –40°C to +85°C temperature range
  • Available in 52-pin LQFP package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY100E222L is a low-skew, low-jitter device capable of receiving a high-speed LVECL/LVPECL input in either a single-ended or differential configuration. For single-ended configurations, a VBB output reference is supplied by the SY100E222L. A 2:1 input multiplexer selects from two differential input pairs by means of the CLK_SEL input select.The internal programmable divider for each of the four banks generates a ÷1 or ÷2 frequency of the selected input. The ÷1/÷2 divider outputs can be asynchronously synchronized with the master reset (MR) input so that the outputs will start out in a known state.The 15 total outputs are partitioned into four independently selected output banks in a 2/3/4/6 fanout configuration. Each of the four banks can independently select the ÷1 or ÷2 output frequency by means of the four separate frequency select pins (FSELA-FSELD) inputs.The SY100E222L is pin-for-pin compatible with the MC100LVE222FA device.The SY100E222L is part of a Micrel’s Precision Edge® product family. For other integrated clock divider plus fanout buffer options, consider Micrel’s SY89200 family.

Additional Features
    • Four programmable output banks and 15 total LVPECL-compatible differential outputs
    • Pin-compatible, plug-in replacement to MC100LVE222FA
    • fMAX clock = 1.5GHz
    • 50ps output-to-output skew
    • Four output banks with independent ÷1, ÷2 frequency control
    • 100k compatible I/O
    • Power supply 3.3V ±10%
    • –40°C to +85°C temperature range
    • Available in 52-pin LQFP package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:15
Input
LVECL/LVPECL
Output
LVPECL
Supply Voltage
3.3
Max Freq (GHz)
1.5
Max Prop Delay (ps)
1520
Icc (mA)
122
Max Within Device Skew (ps)
50
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVPECL

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100E222LTY-TX
0.339100
0.987000
52
LQFP
10x10x1.4mm
Matte Tin
e3
SY100E222LTY
0.339100
1.801250
52
LQFP
10x10x1.4mm
Matte Tin
e3
SY100E222LTY-TR
0.339100
0.986300
52
LQFP
10x10x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
