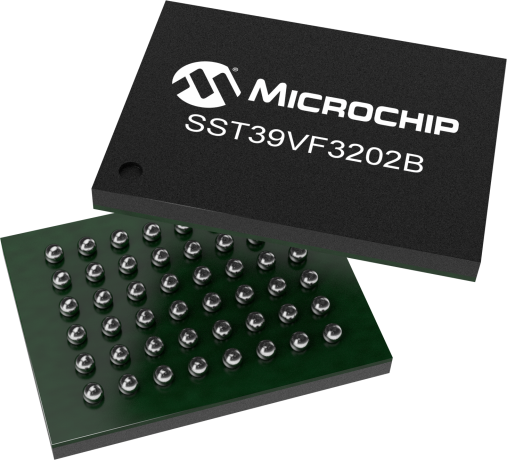

SST39VF3202B

Status: Not Recommended for new designs

Features:

  • Organized as 2M x16
  • Low Power Consumption (typical values at 5 MHz) – Active Current: 6 mA (typical) – Standby Current: 4 µA (typical) – Auto Low Power Mode: 4 µA (typical)
  • Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top 32 KWord) for SST39VF3202B – Bottom Block-Protection (bottom 32 KWord) for SST39VF3201B
  • Sector-Erase Capability – Uniform 2 KWord sectors
  • Block-Erase Capability – Uniform 32 KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature – SST: 128 bits; User: 128 words
  • Fast Erase and Word-Program: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 35 ms (typical) – Word-Program Time: 7 µs (typical)
  • Packages Available – 48-lead TSOP (12mm x 20mm) – 48-ball TFBGA (6mm x 8mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST39VF3202B device is a 2M x16 CMOS Multi- Purpose Flash Plus (MPF+) manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF3202B writes (Program or Erase) with a 2.7-3.6V power supply. This device conforms to JEDEC standard pin assignments for x16 memories.

Please consider this device SST39VF3202C

Additional Features
  • Organized as 2M x16
  • Low Power Consumption (typical values at 5 MHz)– Active Current: 6 mA (typical)– Standby Current: 4 µA (typical)– Auto Low Power Mode: 4 µA (typical)
  • Hardware Block-Protection/WP# Input Pin– Top Block-Protection (top 32 KWord)for SST39VF3202B– Bottom Block-Protection (bottom 32 KWord)for SST39VF3201B
  • Sector-Erase Capability– Uniform 2 KWord sectors
  • Block-Erase Capability– Uniform 32 KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature– SST: 128 bits; User: 128 words
  • Fast Erase and Word-Program:– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 35 ms (typical)– Word-Program Time: 7 µs (typical)
  • Packages Available– 48-lead TSOP (12mm x 20mm)– 48-ball TFBGA (6mm x 8mm)
  • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
32 Mbit
Op. Volt Range (V)
2.7 to 3.6
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Brochures

12/19/2017
3698KB

Product Brief

Product Line Card


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
32000K
0 MHz
TFBGA-48, TSOP-48
$2.12
32000K
0 MHz
TFBGA-48, TSOP-48
$1.48
32000K
0 MHz
TFBGA-48, TSOP-48
$1.48
32000K
0 MHz
TFBGA-48, TSOP-48
$2.12
32000K
0 MHz
TFBGA-48, TSOP-48
$1.48
32000K
0 MHz
TFBGA-48, TSOP-48
$1.48

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
