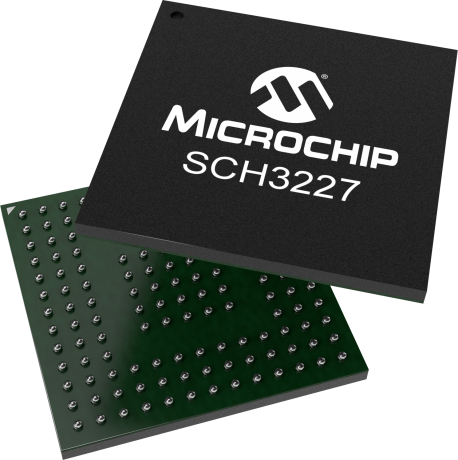

product primary image

SCH3227

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH3227 is a 3.3V Super I/O Controller with an LPC interface. The SCH3227 includes Keyboard Controller, Hardware Monitoring capabilities, Power Control logic, and Motherboard Glue logic. The device provides a parallel port, 4 full serial ports and the option for two additional 4-Pin serial ports. The serial ports are fully functional NS16550 compatible UARTs that support data rates up to 1.5 Mbps.

Hardware Monitoring capability has programmable, automatic fan control. It can alert the system to out-of-limit conditions and automatically control the speed of multiple fans in response.

System related functionality, which offers flexibility to the system designer, included 40 General Purpose I/O (GPIO) control functions and control of two LED’s.

The product is available in commercial (0°C to +70°C and industrial (-40°C to +85°C) temperature ranges.

Family parts
SCH3227I-SZ
SCH3227I-SZ-TR
SCH3227-SZ
SCH3227-SZ-TR

Additional Features
  • 8042 Keyboard Controller
  • 144-ball WFBGA Package
  • Legacy I/O
  • 40 GPIO Pins
  • 32 byte Security Key Register for device authentication
  • Fan Control Engine
  • Glue logic
  • 3 PWM Outputs
  • 3 fan tachometer inputs
  • IEEE 1284, EPP and ECP Compatible Parallel Port
  • One IrDA 1.0 Infrared Port
  • NS16550 compatible UART serial ports
  • Four 8-pin serial ports
  • Two 4-pin serial ports  by strap option
  • ACPI 2.0 compatible
  • Industrial (-40°C to +85°C)
  • Commercial(0°C to +70°C)
  • Three fan tachometer inputs and three pulse width modulator (PWM) fan control outputs
  • Hardware monitoring: temperature, voltage and fan speed monitoring
  • Hardware monitoring: temperature, voltage and fan speed monitoring
  • Three fan tachometer inputs and three pulse width modulator (PWM) fan control outputs
Parametrics
Name
Value
UART
6
Customer Programmable RAM
N
Intruder Detection
N
Operating Temperature
-40° C to +85° C
PCH Temp Monitoring
N
Tach
3
Deep Sleep S5
N
Fan Tachometer Inputs
3
Glue Logic
Y
8024 Keyboard Controller
Y
PCI Resets
3
PECI Support
N
RRCC Auto Fan
N
Legacy I/O
Y
GPIO
40
PWM
3
Package
144-ball WFBGA
SMBus Interface
N
Security Key Register
32 byte
AMD SB-TSI
N
Resume Reset
Y
System Controller
State Machine
Fan Control Engine
State Machine

Documents

Jump to:

Brochures

06/24/2015
1390KB
02/23/2016
996KB

Development Environment

  • Software Libraries
Software Libraries
SCH3xxx Family Devices Linux High Speed Serial Driver Patch

Learn More

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SCH3227I-SZ
0.128300
0.826923
144
WFBGA
9x9x0.8mm
SAC
e8
SCH3227I-SZ-TR
0.128300
0.273333
144
WFBGA
9x9x0.8mm
SAC
e8
SCH3227-SZ
0.128300
0.826923
144
WFBGA
9x9x0.8mm
SAC
e8
SCH3227-SZ-TR
0.128300
0.273333
144
WFBGA
9x9x0.8mm
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
