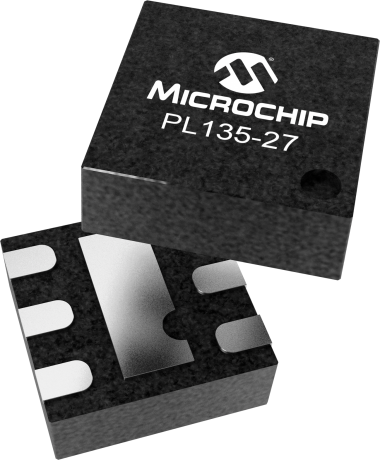

product primary image

PL135-27

Status: In Production

Features:

  • Advanced oscillator design for wide frequency coverage
  • Two LVCMOS Outputs
  • 8mA Output Drive Strength
  • Input/Output Frequency: 10MHz to 40MHz fundamental crystal
  • Very low jitter and phase noise
  • Low current consumption
  • Single 1.62V to 3.63V power supply
  • Available in 2.0mm x 13.mm DFN-6L, GREEN/RoHS-compliant package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PL135-27 is an advanced oscillator fanout buffer design for high performance, low-power, small form-factor applications. The PL135-27 accepts a fundamental crystal input of 10MHz to 40MHz and produces two LVCMOS outputs of the same frequency. The PL135-27 is designed to fit in a small 2.0mm x 1.3mm DFN package, and offers the best phase noise and jitter performance and lowest power consumption of any comparable IC.

Additional Features
    • Advanced oscillator design for wide frequency coverage
    • Two LVCMOS Outputs
    • 8mA Output Drive Strength
    • Input/Output Frequency: 10MHz to 40MHz fundamental crystal
    • Very low jitter and phase noise
    • Low current consumption
    • Single 1.62V to 3.63V power supply
    • Available in 2.0mm x 13.mm DFN-6L, GREEN/RoHS-compliant package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:2 Crystal oscillator Fanout buffer 1.8-3.3V
Input
Crystal Oscillator
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.04
Max Prop Delay (ps)
Icc (mA)
1
Max Within Device Skew (ps)
500
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Voltage (V)
1.8/2.5/3.3
Output Type
LVCMOS
Input (MHz)
10-40
Number Of Outputs
2

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL135-27GI
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL135-27GI-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
