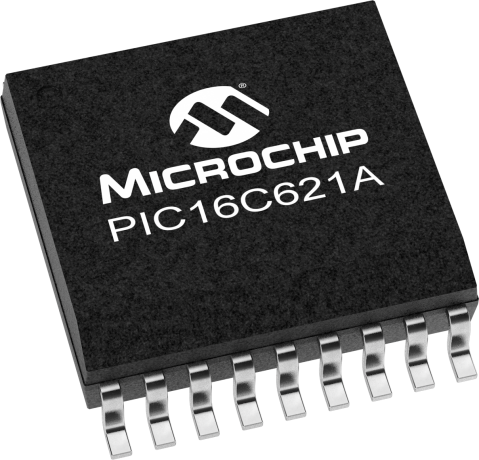

product primary image

PIC16C621A

Status: Not Recommended for new designs

Features:

  • Programmable VREF Max. Speed: 40MHz
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Please consider this device PIC16F627A

Additional Features
Programmable VREF
Max. Speed: 40MHz
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
1.75
CPU Speed (MIPS/DMIPS)
10
SRAM (KB)
96
Timers
1 x 8-bit
Number of Comparators
2
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
18

Documents

Jump to:

Development Environment

  • Integrated Development Environments
  • Programmers
  • Code Examples
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164301   PartNo: PIC16C621A (18P)
  • Socket: AC164302   PartNo: PIC16C621A (18SO)
  • Socket: AC164307   PartNo: PIC16C621A (20SS)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
18
0.875
80
$2.68

18
0.875
96
$1.24

18
1.75
80
$3.08

18
1.75
96
$1.40

18
3.5
128
$3.47

18
3.5
128
$1.58

18
0.875
96
$1.78

18
1.75
96
$1.99

18
3.5
128
$3.20

18
0.875
96



RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC16C621A-04/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16C621A-04I/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16C621A-04I/SSVAO
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16C621A-20/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16C621A-20I/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16C621AT-20I/SS
0.164200
0.416250
20
SSOP
.209in
Matte Tin
e3
PIC16C621A-04/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-04E/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-04I/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-04I/SOVAO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-20/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-20E/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-20I/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16C621AT-04E/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16C621AT-04I/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16C621AT-04I/SOVAO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16C621AT-20/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16C621AT-20I/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16C621A-04/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16C621A-04E/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16C621A-04I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16C621A-20/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16C621A-20I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
