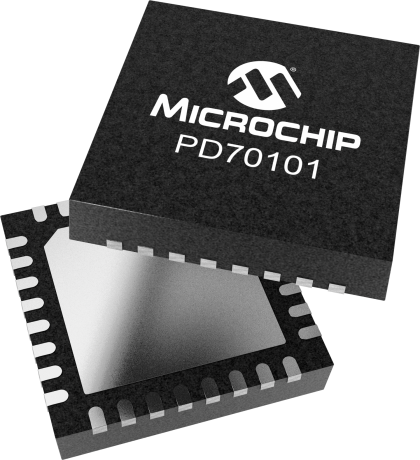

product primary image

PD70101

IEEE 802.3af Type 1, PD front-end and PWM controller IC w/internal 0.6 Ohm FET

Status: In Production

Features:

  • IEEE 802.3af Type 1 compliant
  • Less than 10 µA (typical) offset current during detection
  • Signature resistor is disconnected upon detection
  • Programmable classification setting with a single resistor
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD70101 is an integrated Powered Device (PD) Interface and PWM controllers for a DC-DC converter used in IEEE 802.3af applications. The PD70101 can be used for IEEE 802.3af Type 1 applications. The device has several features designed to improve efficiency and reliability:

  • Capacitor
  • Gate drivers
  • Peak current mode control
  • Maximum duty cycle
  • Soft-start circuit
  • Low voltage protection warning and monitoring

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • IEEE 802.3af Type 1 compliant
  • Less than 10 µA (typical) offset current during detection
  • Signature resistor is disconnected upon detection
  • Programmable classification setting with a single resistor
  • Integrated 0.6 Ohm isolating MOSFET switch with inrush current limit
  • Power off DC-DC input capacitor discharge
  • 100 kHz to 500 kHz adjustable DC-DC switching frequency
  • DC-DC frequency can be synchronized to external clock
  • Supports low power mode operation for higher efficiency
  • Up to 50% duty cycle
  • Soft-start circuit to control the output voltage rise time
  • Two out-of-phase driver stages for efficient synchronous rectification or active clamp
  • PoE Port Input UVLO with programmable threshold and hysteresis
  • Internal differential amplifier simplifying non-isolated step down converter
  • Over load and short circuit protection
  • 32-pin, 5mm × 5mm QFN
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af
IC Type
PD front end + PWM controller
POE Type
AF Type 1
PoE Class
1-3
Output Power
15.4W
Maximum Current
0.45A
Maximum Channel Resistance
0.6 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial
Integrated PWM Controller
Yes

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 12V 1.1A output
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 12V 1.1A output ( PD70101EVB15F-12 )

The PD70101EVB15F-12 evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.

Learn More
Add To Cart
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 5V 2.6A output
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 5V 2.6A output ( PD70101EVB15F-5 )

The PD70101EVB15F-5 evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.

Learn More
Add To Cart
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 3.3V 1A output
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 3.3V 1A output ( PD70101EVB3F )

The PD70101EVB3F evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.

Learn More
Add To Cart
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 5V 1.2A output
IEEE802.3af/bt Type 1 PD EVB PD70101 w/isolated flyback conv. 5V 1.2A output ( PD70101EVB6F )

The PD70101EVB6F evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70101ILQ-TR
0.000000
0.000000
32
VQFN
5x5x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
