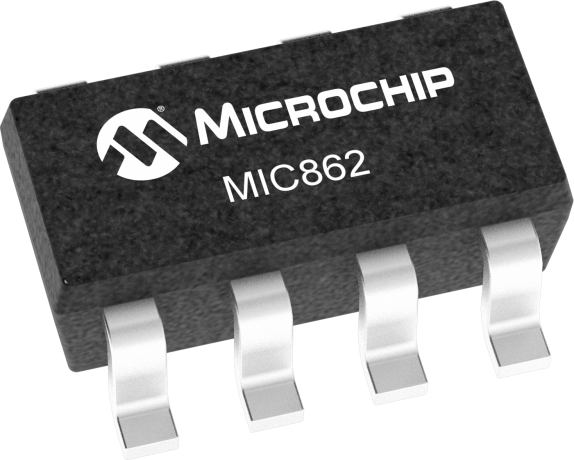

product primary image

MIC862

Status: In Production

Features:

  • SOT23-8 packaging
  • 3MHz gain-bandwidth product
  • 5MHz, -3dB bandwidth
  • 31µA supply current
  • Rail-to-rail output
  • Ground sensing at input (common mode to GND)
  • Drive large capactive loads
  • Unity gain stable
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC862 is a dual low-power operational amplifier in an SOT23-8 package. It is designed to operate in the 2V to 5V range, rail-to-rail output, with input common-mode to ground. The MIC862 provides 3MHz gain-bandwidth product while consuming only a 31μA/channel supply current. With low supply voltage and SOT23-8 packaging, MIC862 provides two channels as general-purpose amplifiers for portable and battery-powered applications. Its package provides the maximum performance available while maintaining an extremely slim form factor. The minimal power consumption of this IC maximizes the battery life potential.

Additional Features
    • SOT23-8 packaging
    • 3MHz gain-bandwidth product
    • 5MHz, -3dB bandwidth
    • 31µA supply current
    • Rail-to-rail output
    • Ground sensing at input (common mode to GND)
    • Drive large capactive loads
    • Unity gain stable
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +85°C
Vos Max (µV)
6000
# per Package
2
Iq Typical (µA)
31
Iq Max (µA)
47
GBWP (kHz)
3000
Operating Voltage Range (V)
2.0 to 5.25
Device Description
Linear Op Amps
PSRR Min (dB)
60
CMRR Min (dB)
60
Aol (dB)
96
Isc (mA)
27

Documents

Jump to:

Data Sheet

08/23/2017
1627KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC862YM8-TR
0.042100
8
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
