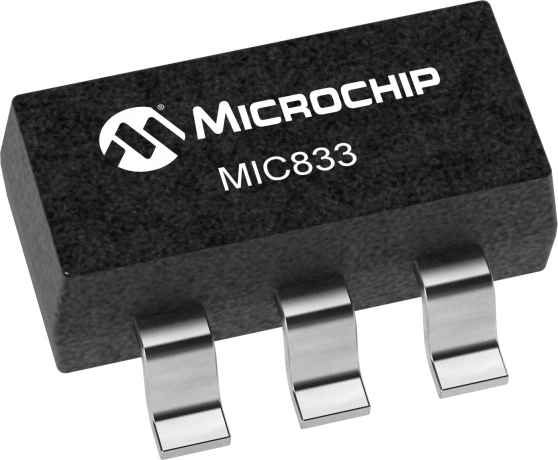

product primary image

MIC833

Windowed Comparator with Adj Hysteresis

Status: In Production

Features:

  • Optimized for PDAs, cellular telephones, pagers, and other battery-powered devices
  • Inputs and output can pulled up to 6V regardless of supply voltage
  • Independently adjustable high- and low-voltage thresholds
  • High ±1.5% voltage threshold accuracy
  • Extremely low 1µA typical supply current
  • Immune to brief input transients
  • 5-lead SOT-23 package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The MIC833 is a micropower precision dual voltage comparator with an on-chip reference and latch. High- and low-voltage thresholds are adjusted independently, allowing for wide hysteresis. Three external resistors determine the threshold voltages. Voltage detection thresholds are accurate to 1.5%. Supply current is extremely low (1µA, typical), making it ideal for portable applications. The MIC833 is supplied in Micrel's IttyBitty™ 5-lead SOT-23- 5 package. See the MIC2778 for applications requiring an output delay

Additional Features
    • Optimized for PDAs, cellular telephones, pagers, and other battery-powered devices
    • Inputs and output can pulled up to 6V regardless of supply voltage
    • Independently adjustable high- and low-voltage thresholds
    • High ±1.5% voltage threshold accuracy
    • Extremely low 1µA typical supply current
    • Immune to brief input transients
    • 5-lead SOT-23 package
Parametrics
Name
Value
Temp Range (°C)
-40°C to +85°C
IQ Typical (µA))
1
Vref (V)
1.25
Typical Propagation Delay (ns)
5000
# per Package
1
Supply Voltage Range (V)
1.5 to 5.5

Documents

Jump to:

Data Sheets


606KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC833YM5-TR
0.017400
0.049000
5
SOT-23

NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
