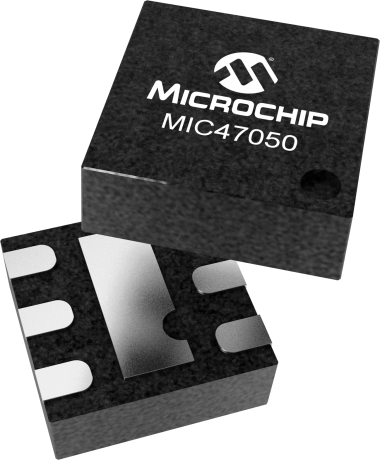

MIC47050

500mA ULDO w/ Low Input and Low Output Voltage

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1µF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV at 500mA), and low ground current makes this device ideally suited for mobile and point-of-load applications.

The MIC47050 has an NMOS output stage offering very low output impedance. The NMOS output stage makes for a unique ability to respond very quickly to sudden load changes such as those required by a microprocessor, DSP or FPGA. The MIC47050 consumes little quiescent current and can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any processor.

The MIC47050 operates over a junction temperature range of -40°C to +125°C.

The MIC47050 now offers automotive grade 1. AEC-Q100 and PPAP capable.

Additional Features
  • AEC-Q100 and PPAP Capable
  • Input voltage range: 1.0V to 3.6V
  • Stable with 1µF ceramic output capacitor
  • Low dropout voltage ULDO™: 44mV at 500mA
  • ±1.5% initial output voltage accuracy
  • Bias supply voltage range: 2.3V to 5.5V
  • Adjustable output voltage range: 0.4V to 2.0V
  • Logic-level enable input
  • 400mA maximum output current per LDO
  • Very fast transient response
  • UVLO on both supply packages
  • Junction temperature range of -40°C to +125°C
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
1
VIN Max (V)
3.6
VOUT (V)
1.2, 1.8, Adj
Voltage Drop Typ (mV)
44
IGND Typ (µA)
6
Tol Typ %
±0.5
Noise (µV) rms
63
PSRR 1 kHz (dB)
50
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC47050YML Evaluation Board
MIC47050YML Evaluation Board ( MIC47050YML-EV )

The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1μF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV @ 500mA), and...

Learn More
Add To Cart
MIC47050YMT Evaluation Board
MIC47050YMT Evaluation Board ( MIC47050YMT-EV )

The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1μF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV @ 500mA), and...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC47050YMT-TR
0.070494
6
UDFN
2x2x0.6mm
NiPdAu
e4
MIC47050-1.2YML-TR
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
MIC47050YML-TRVAO
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
MIC47050-1.2YML-TRVAO
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
MIC47050-1.8YML-TRVAO
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
MIC47050YML-TR
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
MIC47050-1.8YML-TR
0.010100
0.662100
6
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
