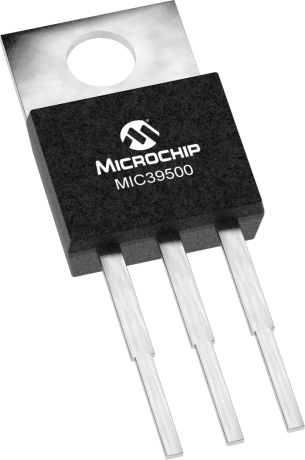

MIC39500

5.0A 1.0% Fixed Voltage LDO

Status: In Production

Features:

  • 5A minimum guaranteed output current
  • Ideal for 3.0V to 2.5V conversion
  • Ideal for 2.5V to 1.8V conversion
  • 1% initial accuracy
  • Low ground current
  • Current limiting and thermal shutdown
  • Reverse battery and reverse lead insertion protection
  • Reverse leakage protection
  • Fast transient response
  • TO-263 and TO-220 packages
  • TTL/CMOS-compatible enable pin (MIC39501 only)
  • Error flag output (MIC39501 only)
  • Ceramic capacitor stable (See application information)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC39500 and MIC39501 are 5A low-dropout linear voltage regulators that provide a low-voltage, high-current output with a minimum of external components. Utilizing proprietary Super βeta PNP® pass element, the MIC39500/1 offers extremely low dropout (typically 400mV at 5A) and low ground current (typically 70mA at 5A).

The MIC39500/1 is ideal for PC add-in cards that need to convert from standard 2.5V or 3.3V, down to new, lower core voltages. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC39500/1 to provide 2.5V from a supply as low as 3V or 1.8V from 2.5V. The MIC39500/1 also has fast transient response for heavy switching applications. The device requires only 47µF of output capacitance to maintain stability and achieve fast transient response

The MIC39500/1 is fully protected with overcurrent limiting, thermal shutdown, reverse battery protection, reverse ead insertion protection, and reverse leakage protection. The MIC39501 offers a TTL logic-compatible enable pin and an error flag that indicates undervoltage and overcurrent conditions. Offered in a fixed voltages, 1.8V and 2.5V, the MIC39500/1 comes in the TO-220 and TO-263 packages and an ideal upgrade to older, NPN-based linear voltage regulators.

For applications requiring input voltage greater than 16V, see the MIC29500/1/2/3 family. For applications with input voltage 6V or below, see MIC3750x LDOs.

Additional Features
    • 5A minimum guaranteed output current
    • 400mV dropout voltage
      • Ideal for 3.0V to 2.5V conversion
      • Ideal for 2.5V to 1.8V conversion
    • 1% initial accuracy
    • Low ground current
    • Current limiting and thermal shutdown
    • Reverse battery and reverse lead insertion protection
    • Reverse leakage protection
    • Fast transient response
    • TO-263 and TO-220 packages
    • TTL/CMOS-compatible enable pin (MIC39501 only)
    • Error flag output (MIC39501 only)
    • Ceramic capacitor stable (See application information)
