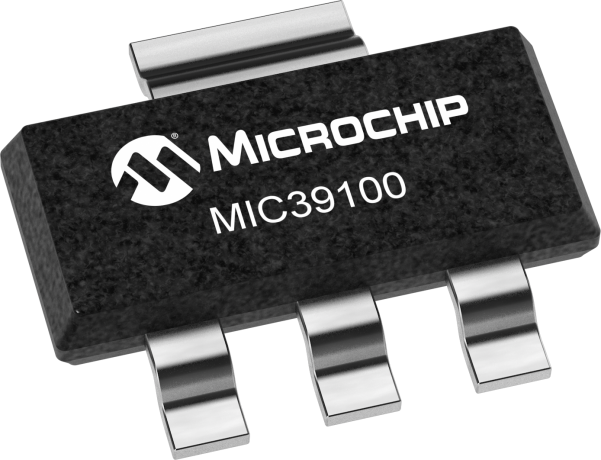

product primary image

MIC39100

1.0A 1.0% Fixed Voltage LDO

Status: In Production

Features:

  • Fixed and adjustable output voltages to 1.24V
  • Ideal for 3.0V to 2.5V conversion
  • Ideal for 2.5V to 1.8V conversion
  • 1A minimum guaranteed output current
  • 1% initial accuracy
  • Low ground current
  • Current limiting and thermal shutdown
  • Reversed-battery protection
  • Reversed-leakage protection
  • Fast transient response
  • Low-profile SOT-223 package
  • Power SO-8 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC39100, MIC39101, and MIC39102 are 1A low-dropout linear voltage regulators that provide low-voltage, high-current output from an extremely small package. Utilizing Micrel's proprietary Super βeta PNP® pass element, the MIC39100/1/2 offers extremely low dropout (typically 410mV at 1A) and low ground current (typically 11mA at 1A).

The MIC39100 is a fixed output regulator offered in the SOT-223 package. The MIC39101 and MIC39102 are fixed and adjustable regulators, respectively, in a thermally enhanced power 8-lead SOIC package.

The MIC39100/1/2 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V, 3.3V to 2.5V or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 630mV over all operating conditions allows the MIC39100/1/2 to provide 2.5V from a supply as low as 3.13V and 1.8V from a supply as low as 2.43V.

The MIC39100/1/2 is fully protected with overcurrent limiting, thermal-shutdown, and reverse-battery protection. Fixed voltages of 5.0V, 3.3V, 2.5V, and 1.8V are available on MIC39100/1 with adjustable output voltages to 1.24V on MIC39102.

Additional Features
    • Fixed and adjustable output voltages to 1.24V
    • 410mV typical dropout at 1A
      • Ideal for 3.0V to 2.5V conversion
      • Ideal for 2.5V to 1.8V conversion
    • 1A minimum guaranteed output current
    • 1% initial accuracy
    • Low ground current
    • Current limiting and thermal shutdown
    • Reversed-battery protection
    • Reversed-leakage protection
    • Fast transient response
    • Low-profile SOT-223 package
    • Power SO-8 package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
IOUT #2
IOUT #3
IOUT #4
IOUT (mA)
1000
VIN Min (V)
2.25
VIN Max (V)
16
VOUT (V)
1.8, 2.5, 3.3, 5.0
Voltage Drop Typ (mV)
410
IGND Typ (µA)
6
Tol Typ %
±1
PSRR 1 kHz (dB)
55
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect
Yes

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC39100-3.3WS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC39100-5.0WS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC39100-1.8WS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC39100-1.8WS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC39100-2.5WS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC39100-2.5WS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC39100-5.0WS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC39100-3.3WS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
