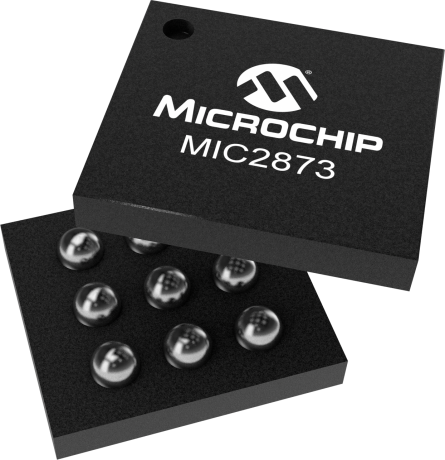

product primary image

MIC2873

1.2A High Brightness Flash LED Driver

Status: In Production

Features:

  • Up to 1.2A flash LED driving current
  • Highly efficient synchronous boost driver
  • Control through single-wire serial interface or external control pin
  • Input voltage range: 2.7V to 5.5V
  • True load disconnect
  • Configurable safety time-out protection
  • Output overvoltage protection (OVP)
  • LED short detection and protection
  • 1μA shutdown current
  • Available in 9-bump 1.30mm x 1.30mm WLCSP package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2873 is a high-current, high-efficiency flash LED driver. The LED driver current is generated by an integrated inductive boost converter with a 2MHz switching frequency which allows for the use of very small inductor and output capacitor. These features make the MIC2873 an ideal solution for high-resolution camera phone LED flash light driver applications. MIC2873 operates in either flash or torch modes that can be controlled through the single-wire serial interface and/or external control pin. A robust single-wire serial interface allows the host processor to control the LED current and brightness. The MIC2873 is available in a 9-bump 1.30mm x 1.30mm WLCSP package.

Additional Features
    • Up to 1.2A flash LED driving current
    • Highly efficient synchronous boost driver
    • Control through single-wire serial interface or external control pin
    • Input voltage range: 2.7V to 5.5V
    • True load disconnect
    • Configurable safety time-out protection
    • Output overvoltage protection (OVP)
    • LED short detection and protection
    • 1μA shutdown current
    • Available in 9-bump 1.30mm x 1.30mm WLCSP package
Parametrics
Name
Value
Product Type
Camera Flash LED Drivers
VIN Min (V)
2.7
VIN Max (V)
5.5
# of LED Channels
1
Max LED Current (mA)
1200
Standby Current (mA)
0.17
Switching Frequency
2
Θja (C/W)
84
Peak Efficiency
92
Current Accuracy
±8%
Interface
Single-Wire

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2873YCS-TR
0.027667
9
WLCSP
1.3x1.3x0.715mm
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
